CTH 2642 TRE (960510057-00) - Husqvarna Lawn Tractor (2012-04) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

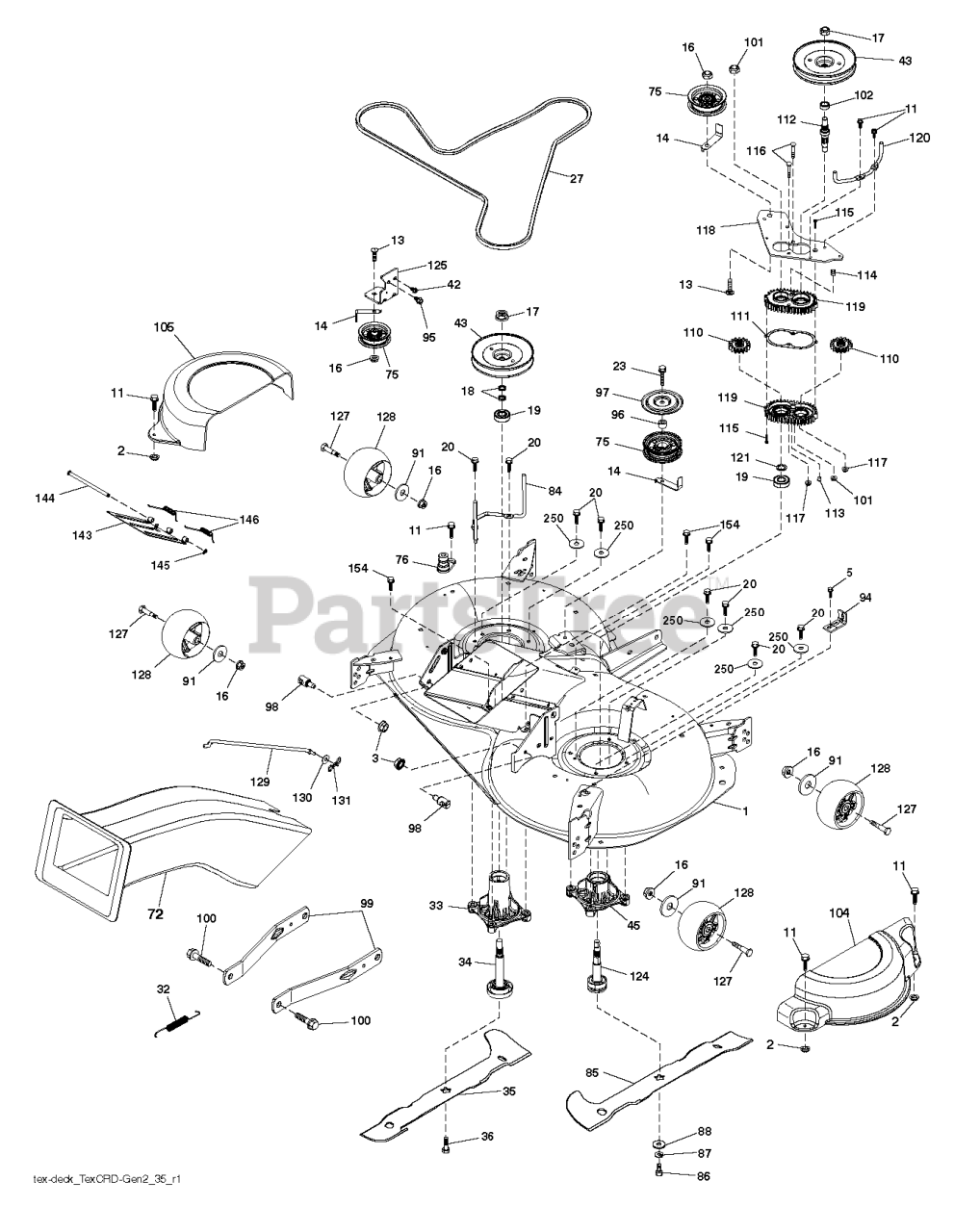

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

94

Husqvarna 532197250

BRKT.CLUTCH.CABLE

$5.99

$

In Stock, Qty 20+

0

116

Husqvarna 872110414

BOLT.CARIGE.SS.1/4-20X1.75GR5
(Superseded to 594976601)

$3.99

$

Usually ships in 3-10 days

0

91

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

131

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$1.49

$

In Stock, Qty 20+

0

115

Husqvarna 818031016

SCREW
(Superseded to 583608901)

$3.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532415356

CRD.SPUR.GEAR
(Superseded to 587934801)

$15.99

$

Usually ships in 3-10 days

0

121

Husqvarna 532436985

WASHER WASHER
(Superseded to 583514101)

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

42

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

100

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

20

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.99

$

In Stock, Qty 20+

0

- -

Husqvarna 580856001

MANDREL.ASM.REV.TALL.N/GRS
(Superseded to 587820201)

Note: MANDREL ASSEMBLY TALL PART NO. 580856001 (Includes Housing (key #33), (Shaft key #34) and (Bearing key #19) only - Pulley/Nut/Washer and Blade Bolt/Washers Not Included)

$53.99

$

In Stock, Qty 16

0

23

Husqvarna 817490628

SCREW LT
(Superseded to 599972501)

$3.99

$

In Stock, Qty 20+

0

84

Husqvarna 532443235

KEEPER KEEPER. LH MANDREL BELT
(Superseded to 583567901)

$14.99

$

Usually ships in 3-10 days

0

127

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

118

Husqvarna 532443232

ARM ARM. CLUTCHING 107 TEX CRD
(Superseded to 583567701)

$23.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

97

Husqvarna 532182061

PROTECTOR
(Superseded to 583119101)

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532443239

PULLEY PULLEY MANDREL 5.438 PD
(Superseded to 583568201)

$53.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

125

Husqvarna 532440420

BRACKET
(Superseded to 583548001)

$39.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$33.99

$

In Stock, Qty 20+

0

2

Husqvarna 532423062

PALNUT 1/4

$3.49

$

In Stock, only 2 left!

0

112

Husqvarna 532443852

SHAFT SHAFT. CRD GEARCASE ADAP
(Superseded to 583571601)

$21.99

$

Usually ships in 3-10 days

0

1

Husqvarna 580973301

DECK SVC 107HP.EZMUL.498
(Superseded to 581928401)

$

$

Not available

120

Husqvarna 532443236

KEEPER KEEPER. RH MANDREL BELT
(Superseded to 583568001)

$14.99

$

Usually ships in 3-10 days

0

154

Husqvarna 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

$3.99

$

In Stock, only 2 left!

0

32

Husqvarna 532446205

SPRING 107CM & 97CM ELECTRIC D
(Superseded to 583584001)

$13.99

$

Usually ships in 3-10 days

0

146

Husqvarna 532445896

SPRING SPRING: EZ MULCH DOOR
(Superseded to 583582001)

$

$

Not available

104

Husqvarna 581714001

COVER.MANDREL.107.RH.GEN.2

$

$

Not available

27

Husqvarna 532445886

BELT BELT. ELECTRIC MOWER DRIV
(Superseded to 532445887)

$53.99

$

Usually ships in 3-10 days

0

85

Husqvarna 581518001

BLADE.107.RH.SINGLE.NON.QD

$59.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 581650501

MANDREL.ASM.SHORT.LH/THD.

Note: MANDREL ASSEMBLY SHORT PART NO. 58086901 (Includes Housing (key #45), Shaft Assembly (key #124), and Bearing (key #19) only - Pulley/Nut/Washer and Blade Bolt/Washers Not Included)

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 13

0

86

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 8

0

130

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

88

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 19

0

76

Husqvarna 532415598

PORT.WASHOUT

$8.49

$

In Stock, Qty 20+

0

119

Husqvarna 532438166

GEARCASE GEARCASE SUBASM
(Superseded to 583527601)

$79.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE
(Superseded to 593824001)

$4.99

$

In Stock, only 2 left!

0

145

Husqvarna 532437988

E-RING.5/16"

$9.99

$

Usually ships in 3-10 days

0

45

Husqvarna 581650801

RP HOUSING.MANDREL.REV.REVS.
(Superseded to 581650501)

$74.99

$

Usually ships in 3-10 days

0

124

Husqvarna 581650701

SUB.ASM.REVERSE.THREAD.REV
(Superseded to 581650501)

$74.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R
(Superseded to 529846401)

$21.99

$

In Stock, Qty 14

0

117

Husqvarna 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

72

Husqvarna 581454102

RP.CHUTE 107/97 TEX GENII
(Superseded to 581454103)

$119.99

$

Usually ships in 3-10 days

0

101

Husqvarna 873680900

NUT.CROWNLOCK.9/16 -18.UNC
(Superseded to 596040601)

$4.99

$

Usually ships in 3-10 days

0

128

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$9.99

$

In Stock, Qty 20+

0

17

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

35

Husqvarna 581517901

BLADE.107.LH.SINGLE.NON.QD

$59.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532438533

PLUG PLUG OIL
(Superseded to 583533001)

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 580854701

RP.SAFT ASM.REV.TALL.N/GREASE
(Superseded to 587820201)

$53.99

$

In Stock, Qty 16

0

13

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.99

$

In Stock, only 4 left!

0

87

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

102

Husqvarna 532402511

SPACER BEARING

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

250

Husqvarna 819111212

WASHER

$3.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532400271

SPACER
(Superseded to 583261101)

$

$

Not available

144

Husqvarna 532435861

PIN PIN.HINGE
(Superseded to 583507401)

$8.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532438197

COVER DOOR.107 CM CRD EZ MULCH
(Superseded to 583527801)

$9.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532444755

COVER.MANDREL.107.LH.GEN.2

$23.99

$

Usually ships in 3-10 days

0

--

Husqvarna 583911901

NEEDS DESCRIPTION

$

$

Currently unavailable

114

Husqvarna 532438534

VALVE VALVE RELIEF
(Superseded to 583533101)

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

111

Husqvarna 532436979

GASKET GASKET GEARCASE
(Superseded to 583514001)

$5.99

$

Usually ships in 3-10 days

0

95

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 580796101

RP.HOUSG.MAND.REV.TALL.N/GRS
(Superseded to 587820201)

$53.99

$

In Stock, Qty 16

0

129

Husqvarna 532443237

ROD ROD. SWAY CRD GEN II
(Superseded to 583568101)

$23.99

$

In Stock, only 2 left!

0

14

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available
