DX 254 BF (966651204) - Dixon 54" Zero-Turn Mower (2012-08) ENGINE PLATE Parts Diagram

54" Zero-Turn Mower

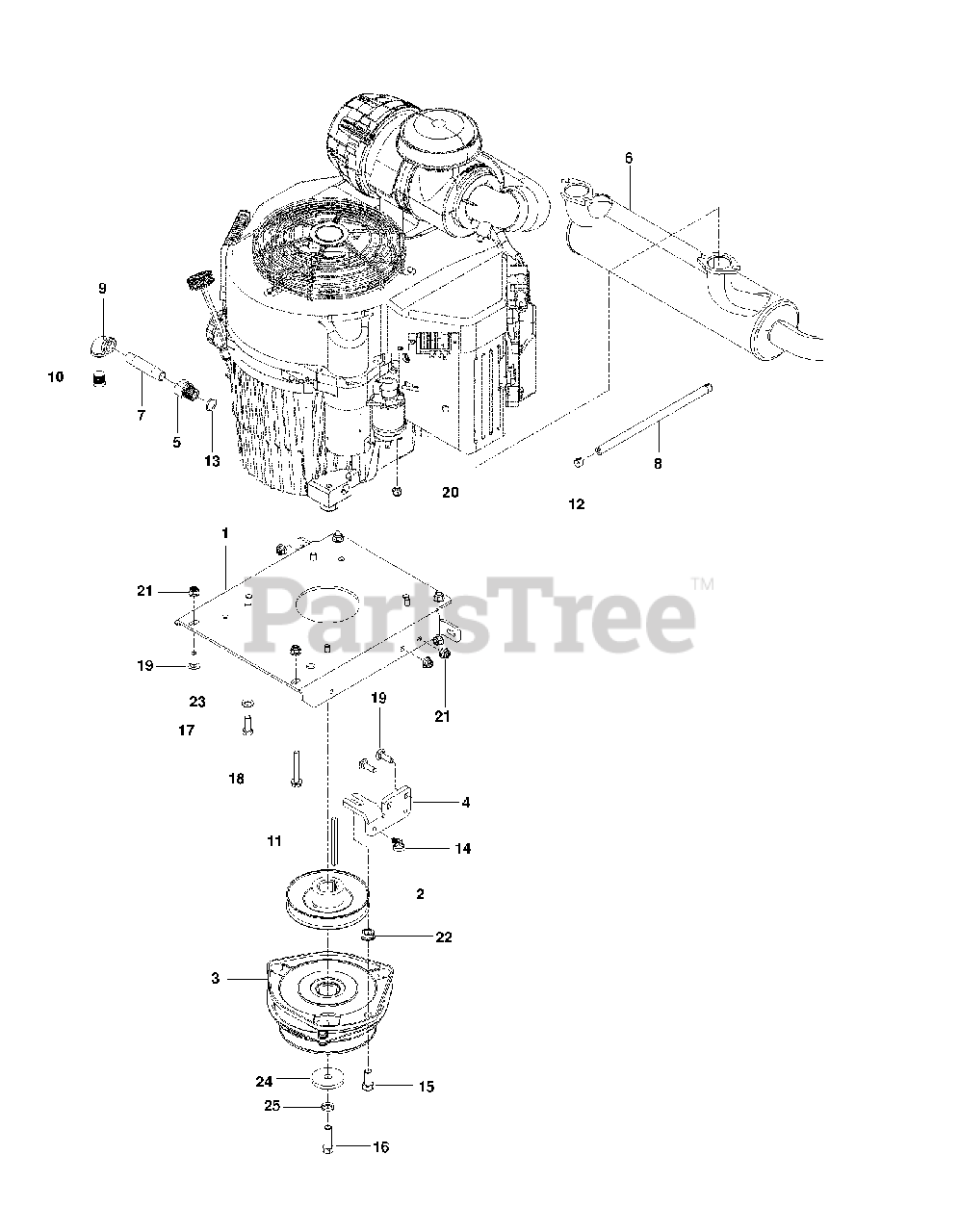

ENGINE PLATE Parts Diagram

  • Title

1

Dixon 510004602

PLATE, ENGINE, BLACK

$125.99

$

Usually ships in 3-10 days

0

2

Dixon 510019801

PULLEY, ENGINE

$71.99

$

In Stock, Qty 6

0

3

Dixon 525749501

CLUTCH, GT3.5

$778.99

$

In Stock, only 1 left!

0

4

Dixon 522676702

STOP, CLUTCH, OGURA
(Superseded to 522676703)

$

$

Not available

5

Dixon 539119680

ADAPTER, OIL DRAIN

$27.99

$

Usually ships in 3-10 days

0

6

Dixon 525750301

MUFFLER, 29HP KAW FX751V-850V

$478.99

$

Usually ships in 3-10 days

0

7

Dixon 539118911

PIPE NIPPLE 3/8 X 3

$4.99

$

Usually ships in 3-10 days

0

8

Dixon 539932956

GAS LINE 10"

$

$

Not available

9

Dixon 539105072

90 DEG.ELBOW 3/8NPT

$14.99

$

Usually ships in 3-10 days

0

10

Dixon 522837001

PLUG, DRAIN 3/8 NPTF

$3.49

$

Usually ships in 3-10 days

0

11

Dixon 525749901

KEY, 1/4 SQ X 3.5

$4.99

$

In Stock, only 2 left!

0

12

Dixon 539912222

HOSE CLAMP

$3.99

$

In Stock, only 2 left!

0

13

Dixon 539109618

O-RING

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539100143

HCS 7/16-14 X 1 GR 5 ZD

$

$

Not available

16

Dixon 539100141

HCS 7/16F X 1 1/2

$

$

Not available

17

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

18

Dixon 574233801

HHFS 5/16-18 X 2.25 GD 5

$

$

Not available

19

Dixon 539990208

RHSNB 5/16C X 1

$

$

Not available

20

Dixon 539103153

NUT M8-1.25 TOP NYL GR10 ZD

$5.99

$

Usually ships in 3-10 days

0

21

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

22

Dixon 539102582

NUT 7/16C WHIZ

$

$

Not available

23

Dixon 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

24

Dixon 539125626

BLADE WASHER

$7.99

$

Usually ships in 3-10 days

0

25

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

Dixon 525554201

HARNESS, FX KAW

Note: NOT SHOWN

$59.99

$

In Stock, only 1 left!

0

Dixon 574825801

KIT, SPARK ARRESTOR

Note: NOT SHOWN

$101.99

$

Usually ships in 3-10 days

0
