E5-42XR02 - Toro 42" Rear-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) 42" Rear Discharge Mower Assembly 2 Parts Diagram

42" Rear-Discharge Mower Deck

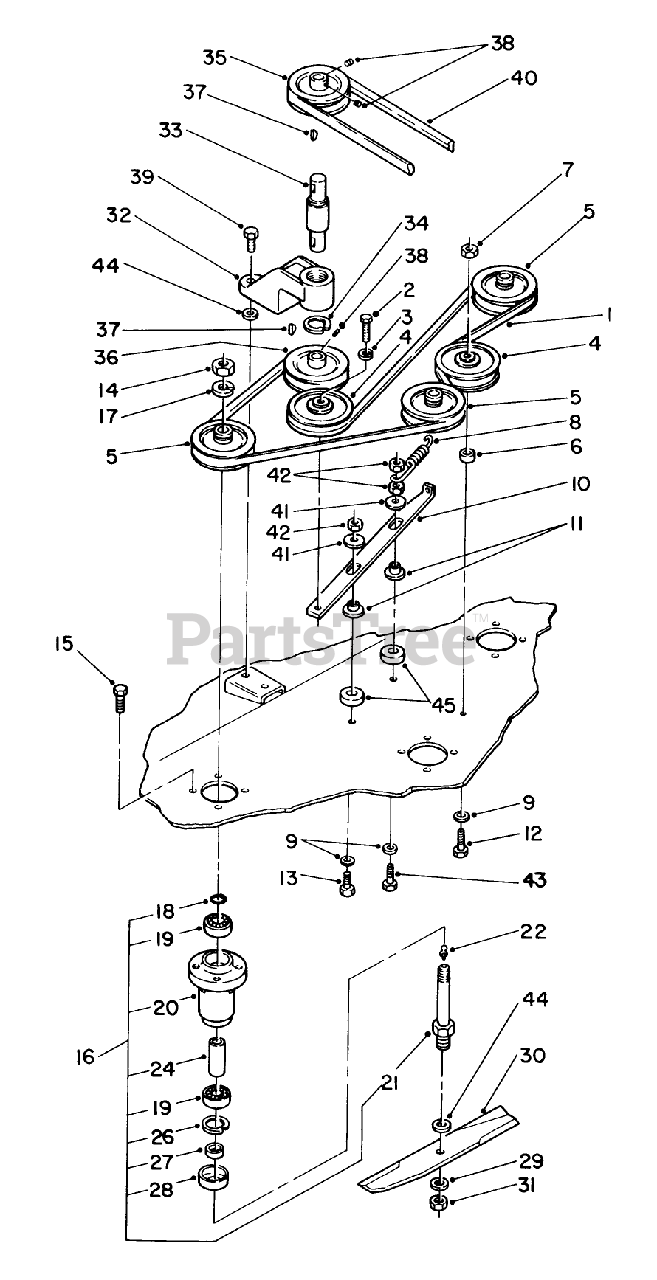

42" Rear Discharge Mower Assembly 2 Parts Diagram

  • Title

1

Toro 106516

V-BELT

$68.99

$

Usually ships in 3-6 days

0

2

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

4

Toro 112426

PULLEY-IDLER

$29.99

$

In Stock, only 2 left!

0

5

Toro 109967

PULLEY

$79.99

$

In Stock, only 2 left!

0

6

Toro 102704

SPACER

$2.99

$

In Stock, Qty 6

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 106517

SPRING-EXTENSION

$

$

Not available

9

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

10

Toro 106389

DISCONTINUED

$

$

Not available

11

Toro 107674

SPACER-BUSHING

$2.49

$

In Stock, Qty 20+

0

12

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

14

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 17

0

15

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 20+

0

16

Toro 822327

See Supercession: 111726
(Superseded to 111726)

$305.99

$

In Stock, only 1 left!

0

17

Toro 920087

See Supercession: 3253-8
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

18

Toro 971015

O RING

$2.49

$

In Stock, Qty 8

0

19

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 11

0

20

Toro 114568

HOUSING-SPINDLE

$110.99

$

In Stock, only 4 left!

0

21

Toro 112674

SHAFT-SPINDLE

$96.99

$

In Stock, only 4 left!

0

22

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

24

Toro 116085

TUBE

$37.99

$

In Stock, only 2 left!

0

26

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

27

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 5

0

28

Toro 106067

See Supercession: 106067-03
(Superseded to 106067-03)

$16.99

$

In Stock, only 2 left!

0

29

Toro 325644

Washer-Plain

$

$

Currently unavailable

30

Toro 114157

Blade 14.5 Low Lift

$

$

Currently unavailable

31

Toro 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

32

Toro 8971

DISCONTINUED
(Superseded to 104176-01)

$

$

Not available

33

Toro 106388

BEARING-INT SHAFT

$186.99

$

Usually ships in 3-6 days

0

34

Toro 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

35

Toro 106524

PULLEY

$

$

Not available

36

Toro 109310

PULLEY-SPLIT

$102.99

$

Usually ships in 3-6 days

0

37

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

38

Toro 3246-2

SCREW-SET, HSH

$0.99

$

In Stock, Qty 10

0

39

Toro 926715

Bolt
(Superseded to 9267154)

$3.99

$

In Stock, Qty 6

0

40

Toro 110141

V-BELT

$

$

Not available

41

Toro 107675

WASHER

$3.99

$

In Stock, Qty 20+

0

42

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

43

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Toro 920257

See Supercession: 9202574
(Superseded to 9202574)

$2.49

$

In Stock, Qty 20+

0

45

Toro 106461

DISCONTINUED

$

$

Not available
