ECV060B02300BT - Exmark 30" V-Series Walk-Behind Mower, Electric (SN: 413950474 - 416150474) (Rev A) (2023) Motor Module Parts Diagram

30" V-Series Walk-Behind Mower, Electric

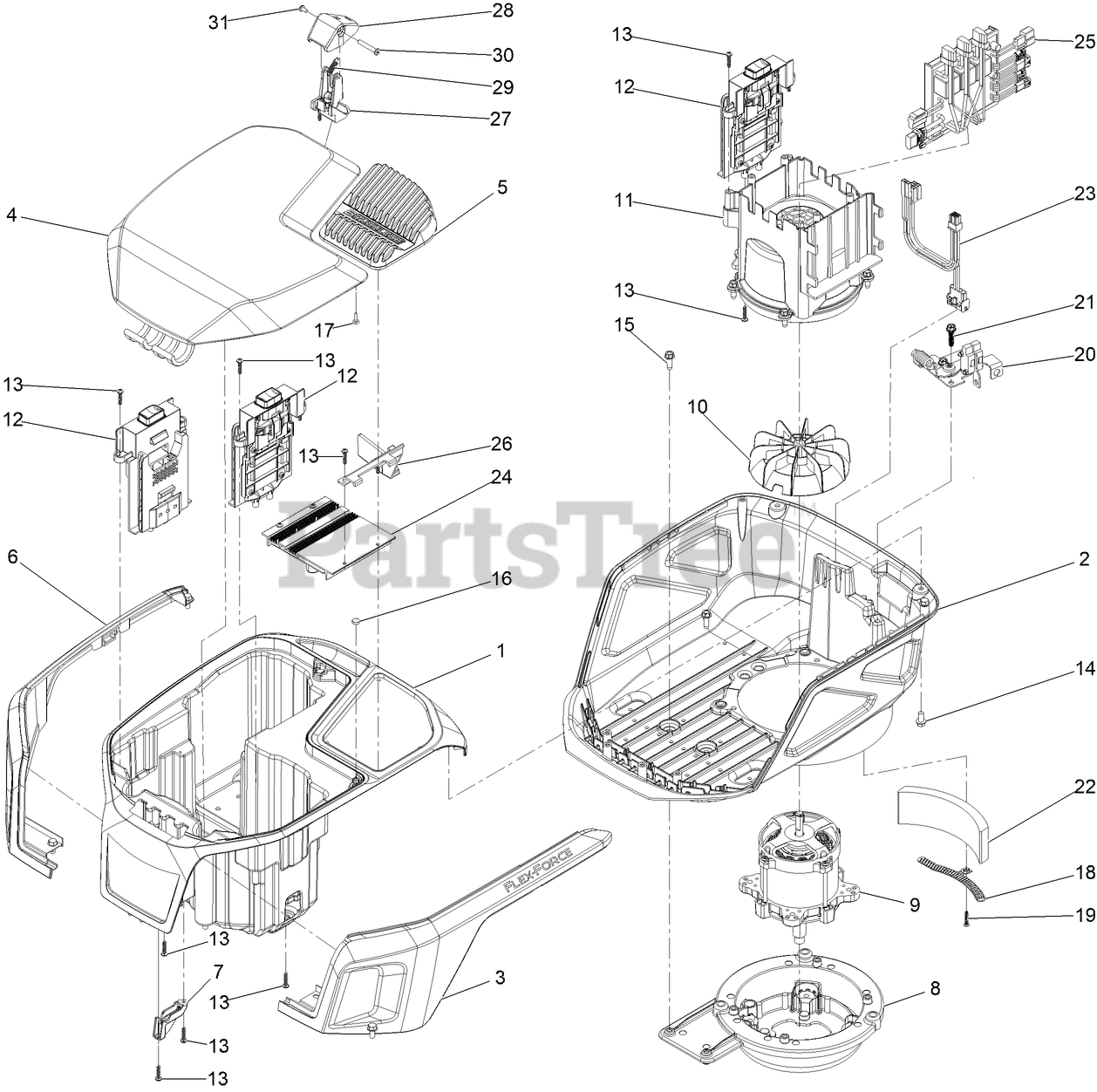

Motor Module Parts Diagram

  • Title

1

Exmark 145-5882

BUCKET-BATTERY

$34.99

$

Usually ships in 3-6 days

0

2

Exmark 145-5883

SHROUD-LOWER

$30.99

$

Usually ships in 3-6 days

0

3

Exmark 147-0406

TRIM-SHROUD, LH

$12.99

$

Usually ships in 3-6 days

0

4

Exmark 145-5885

LID-MOTOR

$27.99

$

Usually ships in 3-6 days

0

5

Exmark 145-5886

HEATSINK-CONTROLLER

$

$

Currently unavailable

6

Exmark 147-0407

TRIM-SHROUD, RH

$12.99

$

Usually ships in 3-6 days

0

7

Exmark 145-5892

BRACKET-SUPPORT, LID

$4.99

$

Usually ships in 3-6 days

0

8

Exmark 145-5895

MOUNT-BASE, MOTOR

$47.99

$

Usually ships in 3-6 days

0

9

Exmark 145-4048

MOTOR-60V

$392.99

$

Usually ships in 3-6 days

0

10

Exmark 145-5896

FAN-MOTOR

$17.99

$

Usually ships in 3-6 days

0

11

Exmark 145-5897

SHROUD-MOTOR

$25.99

$

Usually ships in 3-6 days

0

12

Exmark 147-0403

RECEIVER-BATTERY

$41.99

$

Usually ships in 3-6 days

0

13

Exmark 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

16

Exmark 114-5896

MAGNET

$7.49

$

In Stock, only 1 left!

0

17

Exmark 95-4234

Screw-PPH M4.2 X 2.25 X 12Mm

$2.49

$

In Stock, only 1 left!

0

18

Exmark 147-0449

BRACKET-FOAM

$

$

Currently unavailable

19

Exmark 138-3273

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 133-1918

BAIL SWITCH ASM

$54.99

$

Usually ships in 3-6 days

0

21

Exmark 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 20+

0

22

Exmark 145-3972

FOAM

$

$

Currently unavailable

23

Exmark 139-6637

Harness-Wire

$23.99

$

Usually ships in 3-6 days

0

24

Exmark 147-0451

CONTROLLER-PMU

$216.99

$

Usually ships in 3-6 days

0

25

Exmark 147-0452

CONTROLLER-MOTOR

$213.99

$

Usually ships in 3-6 days

0

26

Exmark 161-3110

BRACKET-PMU

$372.99

$

Usually ships in 3-6 days

0

27

Exmark 147-8634

LIDLOCK-BASE

$6.49

$

Usually ships in 3-6 days

0

28

Exmark 147-8633

LIDLOCK-LEVER

$

$

Currently unavailable

29

Exmark 161-3111

SPRING

$6.99

$

Usually ships in 3-6 days

0

30

Exmark 161-3112

SCREW-PIN, HINGE

$2.99

$

Usually ships in 3-6 days

0

31

Exmark 161-3113

SCREW-PIN

$2.49

$

Usually ships in 3-6 days

0
