ECX180CKA21000 - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 316000000 - 399999999) (2016) Engine Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Kawasaki FJ180V

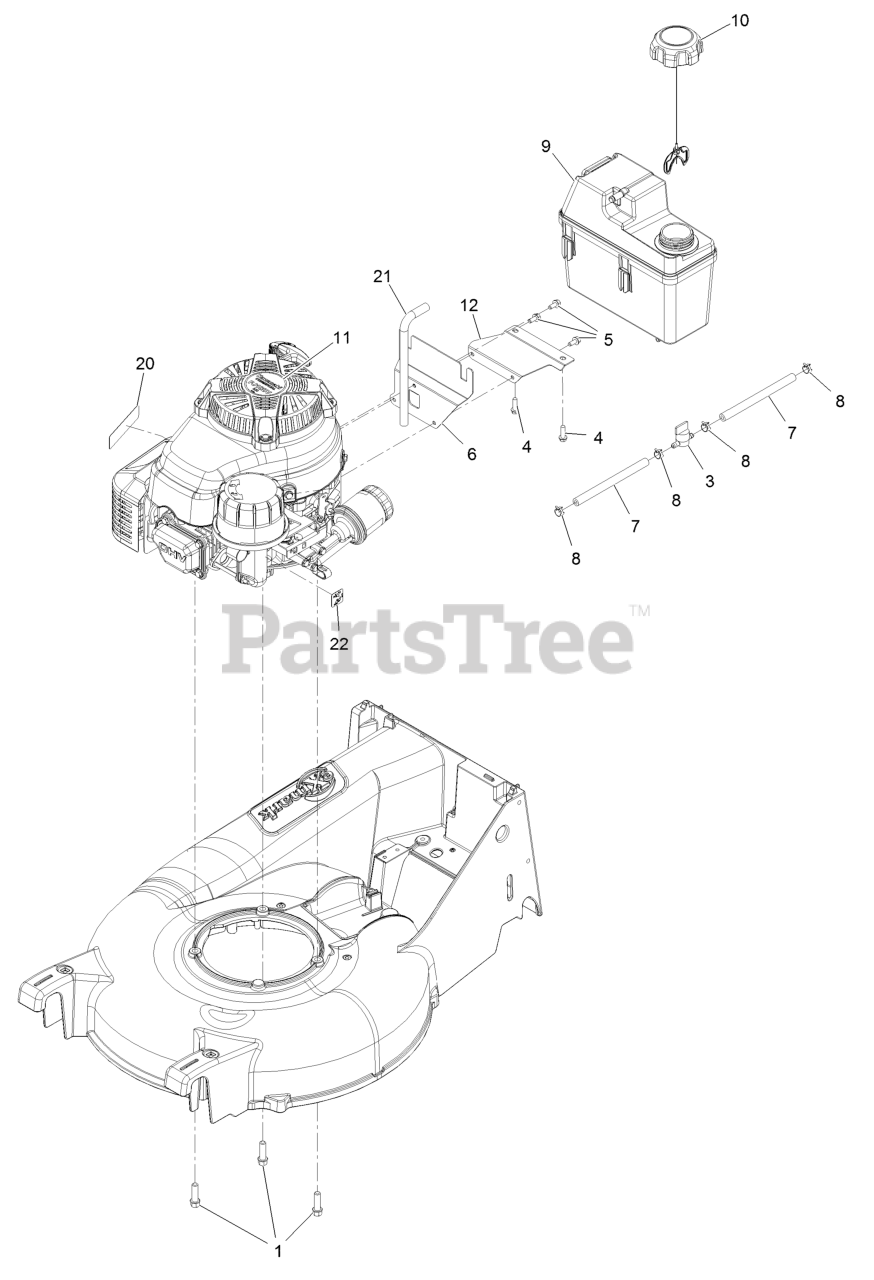

Engine Assembly Parts Diagram

  • Title

1

Exmark 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

3

Exmark 1-603770

VALVE-FUEL

$9.49

$

In Stock, Qty 5

0

4

Exmark 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

5

Exmark 125-8383

SCREW-HWH

$2.99

$

In Stock, Qty 6

0

6

Exmark 125-8381-03

BRACKET-TANK, MOUNTING

$14.99

$

In Stock, only 1 left!

0

7

Exmark 107-0588

HOSE-FUEL

$6.99

$

In Stock, Qty 11

0

8

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

9

Exmark 114-0280

TANK-FUEL

$163.99

$

Usually ships in 3-6 days

0

10

Exmark 109-6776

137-4127
(Superseded to 137-4127)

$25.99

$

In Stock, Qty 20+

0

11

Exmark 109-6528

DECAL

$7.49

$

In Stock, only 2 left!

0

12

Exmark 125-8382-03

BRACKET-TANK, SUPPORT

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

Usually ships in 3-6 days

0

21

Exmark 115-0962

HOSE-VENT, CANISTER

$10.99

$

In Stock, Qty 10

0

22

Exmark 125-8403

DECAL-PRIMER

$3.99

$

Usually ships in 3-6 days

0
