ECX200CKC30000 - Exmark 30" X-Series Walk-Behind Mower, Kohler (SN: 406294345 - 408644345) (Rev B) (2020) Engine Assembly Parts Diagram

30" X-Series Walk-Behind Mower, Kohler

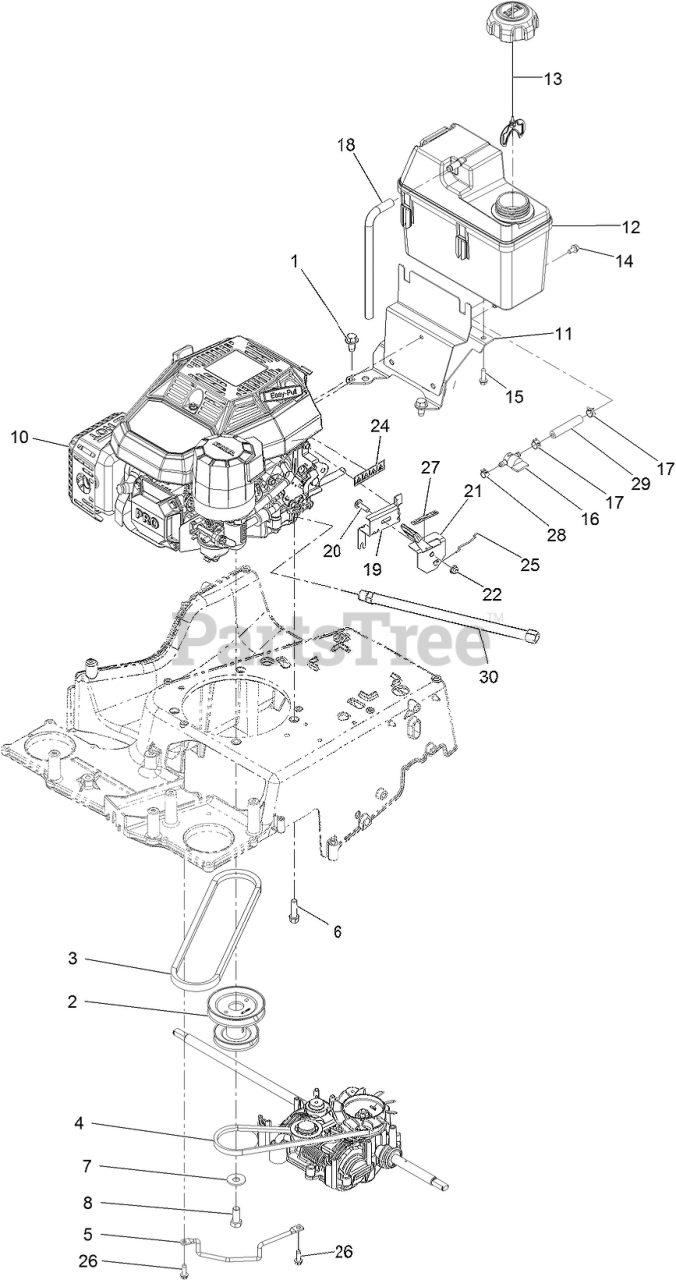

Engine Assembly Parts Diagram

  • Title

1

Exmark 110-9380

SCREW-HWH

$2.99

$

In Stock, only 2 left!

0

2

Exmark 137-9181

Pulley-Engine

$51.99

$

In Stock, Qty 7

0

3

Exmark 121-5765

V-BELT
(Superseded to 121-5765-SL)

$21.99

$

In Stock, Qty 20+

0

4

Exmark 133-8151

BELT-V

$26.99

$

In Stock, Qty 20+

0

5

Exmark 138-5331-03

ROD-GUIDE, BELT

$14.99

$

In Stock, only 2 left!

0

6

Exmark 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Exmark 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

8

Exmark 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

10

Exmark 139-1763

Engine-Kohler

$1555.99

$

Usually ships in 3-6 days

0

11

Exmark 137-9180-03

TANK MOUNT ASM

$39.99

$

In Stock, only 2 left!

0

12

Exmark 114-0280

TANK-FUEL

$163.99

$

Usually ships in 3-6 days

0

13

Exmark 137-4127

CAP-FUEL

$25.99

$

In Stock, Qty 20+

0

14

Exmark 116-8929

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

15

Exmark 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

16

Exmark 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

17

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

18

Exmark 115-0962

HOSE-VENT, CANISTER

$10.99

$

In Stock, Qty 10

0

19

Exmark 138-5386-03

BRACKET-THROTTLE
(Superseded to 145-1504-03)

$27.99

$

In Stock, Qty 20+

0

20

Exmark 3229-30

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

21

Exmark 130-9655

CONTROL-THROTTLE

$46.99

$

In Stock, Qty 5

0

22

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-9313

DECAL-WARNING, ENGINE

$2.49

$

Usually ships in 3-6 days

0

25

Exmark 138-5387

Wire-Link

$2.99

$

In Stock, only 3 left!

0

26

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

27

Exmark 130-9656

DECAL-THROTTLE, CHOKE

$3.49

$

In Stock, Qty 16

0

28

Exmark 2412-80

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

29

Exmark 109-0304

HOSE-FUEL

$2.49

$

In Stock, only 2 left!

0

30

Exmark 117-1261

HOSE-DRAIN, OIL

$34.99

$

In Stock, Qty 15

0
