Exmark ECX200GKC300CS - Exmark 30" X-Series Walk-Behind Mower, Kohler ECV200 (SN: 417930746 & Above) (Rev A) (2025) Suspension Traction Assembly Parts Lookup with Diagrams

1

Exmark 147-8672-01

Caster Deck Bracket

$18.99

$

Usually ships in 3-6 days

2

Exmark 147-8673-01

Caster Deck Bracket

$18.99

$

Usually ships in 3-6 days

3

Exmark 161-8239-01

Link Plate ASM [red]

$55.99

$

Usually ships in 3-6 days

4

Exmark 161-8238-01

Link Plate ASM [red]

$65.99

$

Usually ships in 3-6 days

5

Exmark 147-8675-01

Front Axle

$275.99

$

Usually ships in 3-6 days

6

Exmark 161-8195

Bushing

$2.99

$

Usually ships in 3-6 days

7

Exmark 147-8671-01

Caster Fork

$53.99

$

Usually ships in 3-6 days

9

Exmark 3256-46

Washer-Flat

$7.99

$

In Stock, only 2 left!

10

Exmark 147-8695

Locking Plate

$2.49

$

Usually ships in 3-6 days

11

Exmark 119-4042

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

12

Exmark 161-3102

Caster Pin Bracket

$13.99

$

Usually ships in 3-6 days

13

Exmark 139-1713

SCREW-TAPTITE

$1.49

$

Usually ships in 3-6 days

14

Exmark 161-3101

Caster Lock Pin

$11.99

$

Usually ships in 3-6 days

15

Exmark 115-1166

WASHER-FLAT

$5.49

$

In Stock, only 2 left!

16

Exmark 161-8328

Locking Pin W/Lanyard

$15.99

$

Usually ships in 3-6 days

17

Exmark 161-4770

Spring-Compression, Pin

$3.49

$

Usually ships in 3-6 days

18

Exmark 161-4779

Spring-Extension, HOC Assist

$10.99

$

Usually ships in 3-6 days

19

Exmark 161-8185-01

HOC Position Plate RH

$7.99

$

Usually ships in 3-6 days

20

Exmark 161-8184-01

HOC Position Plate LH

$7.99

$

Usually ships in 3-6 days

21

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

22

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

23

Exmark 161-4820-01

HOC Plate

$17.99

$

Usually ships in 3-6 days

24

Exmark 120-9683

WASHER-PLAIN

$3.49

$

In Stock, only 1 left!

26

Exmark 283-14

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

27

Exmark 161-8180-01

Brace Bracket LH

$9.49

$

Usually ships in 3-6 days

28

Exmark 161-8181-01

Brace Bracket RH

$9.49

$

Usually ships in 3-6 days

29

Exmark 161-8182-03

Brace

$35.99

$

Usually ships in 3-6 days

30

Exmark 323-42

SCREW-HH

$8.99

$

In Stock, only 3 left!

31

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

32

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 16

34

Exmark 132-4607

Bolt-Shoulder, Flange

$1.99

$

Usually ships in 3-6 days

35

Exmark 161-8169

Decal-HOC

$6.49

$

Usually ships in 3-6 days

36

Exmark 161-8170

Decal-HOC

$6.49

$

Usually ships in 3-6 days

40

Exmark 321-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

41

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

42

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

44

Exmark 163-7222

Pin-Hair

$1.49

$

Usually ships in 3-6 days

45

Exmark 161-8241

Pin-Hair

$1.49

$

Usually ships in 3-6 days

46

Exmark 142-2489

DECAL-COMM 30 X-SERIES

$6.99

$

In Stock, only 2 left!

47

Exmark 146-5938-03

Shield

$20.99

$

Usually ships in 3-6 days

48

Exmark 161-8330

Spacer-Wheel

$9.49

$

In Stock, only 2 left!

49

Exmark 126-7347

WHEEL ASM, 9" W/BEARINGS

$95.99

$

In Stock, only 3 left!

49:1

Exmark 126-7345

WHEEL ASM, 9

$77.99

$

In Stock, Qty 5

49:2

Exmark 133-2603

BEARING-BALL

$29.99

$

In Stock, Qty 20+

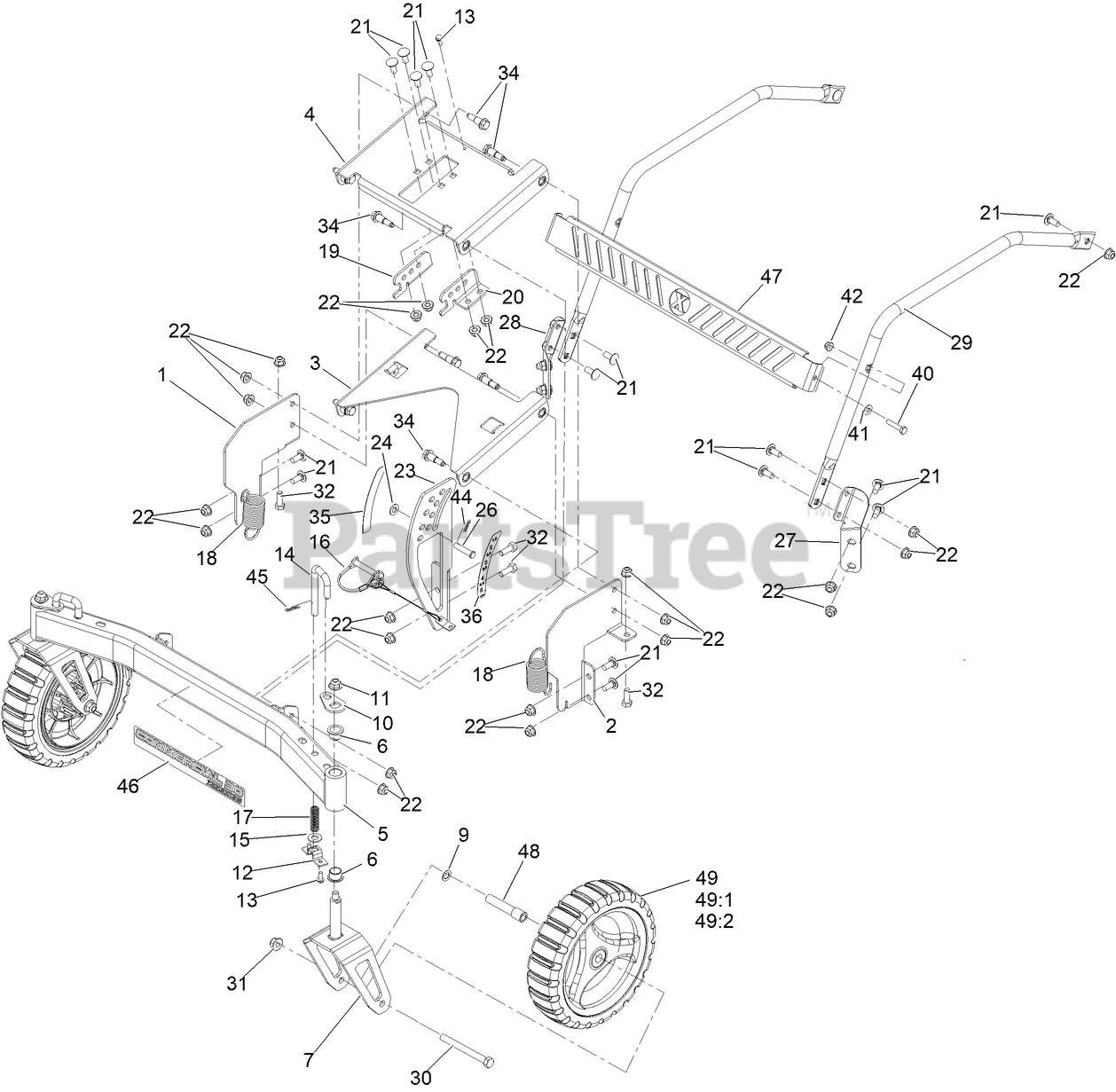

ECX200GKC300CS - Exmark 30" X-Series Walk-Behind Mower, Kohler ECV200 (SN: 417930746 & Above) (Rev A) (2025) Suspension Traction Assembly Parts Diagram

Suspension Traction Assembly Parts Diagram
