EX20KC - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 130000 - 149999) (1997) 52" Side Discharge Mower Deck Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

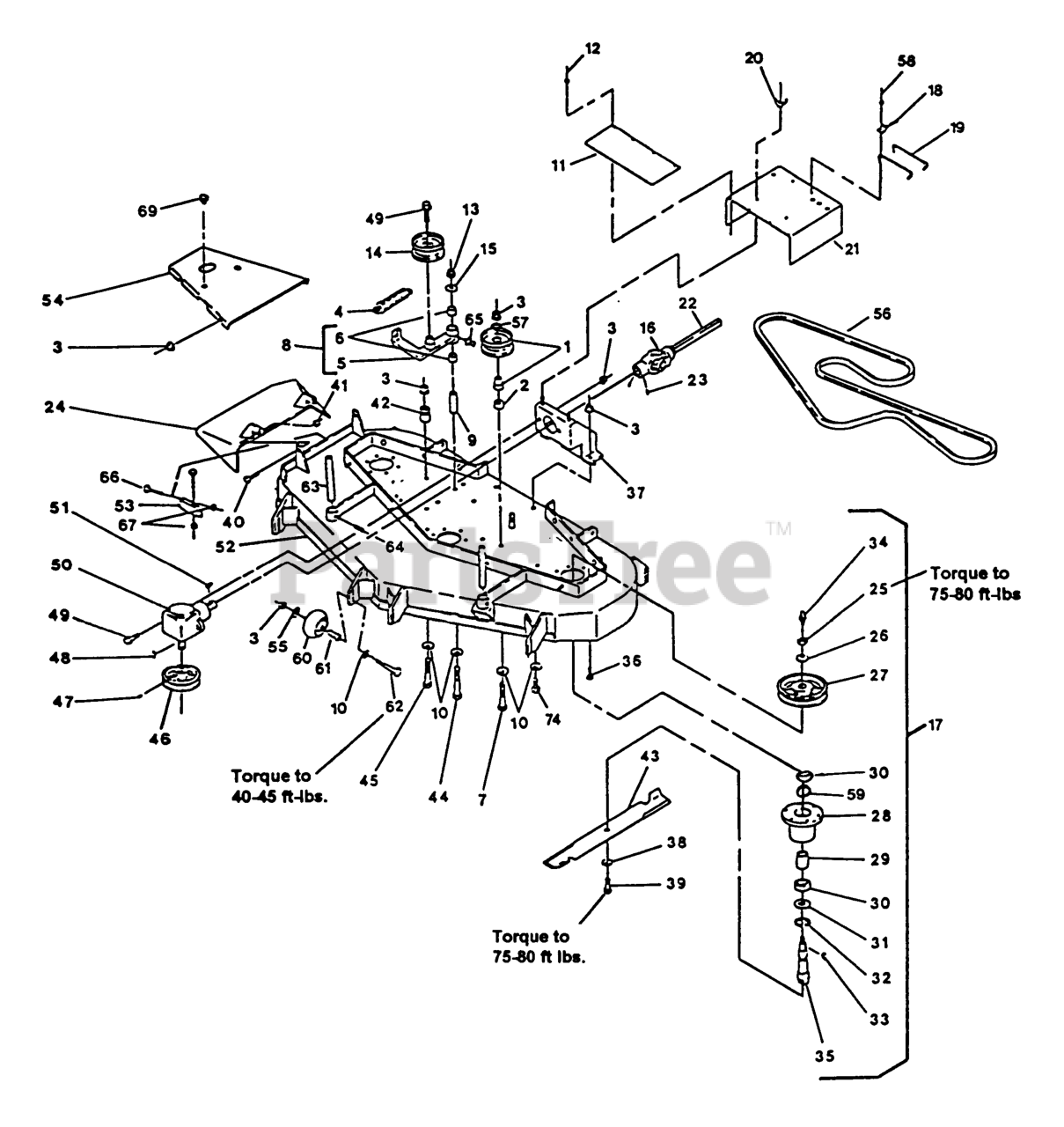

52" Side Discharge Mower Deck Parts Diagram

  • Title

1

Exmark 1-602501

KIT,48 RH IDLER/BUS

$

$

Not available

Exmark 1-603497

IDLER,PULLEY

$72.99

$

In Stock, only 1 left!

0

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

2

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 3 left!

0

3

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-513170

SPRING,EXTENSION

$31.99

$

In Stock, only 2 left!

0

5

Exmark 1-512909

1-512935
(Superseded to 1-512935)

$

$

Not available

6

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

7

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

8

Exmark 1-512935

DISCONTINUED (EXMARK)

$

$

Not available

9

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

10

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

11

Exmark 1-523403

SHIELD,PTO GUARD

$40.99

$

Usually ships in 3-6 days

0

12

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

13

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

14

Exmark 1-603497

IDLER,PULLEY

$72.99

$

In Stock, only 1 left!

0

15

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

16

Exmark 1-523158

54-9180
(Superseded to 54-9180)

$71.99

$

In Stock, only 4 left!

0

17

Exmark 1-614145

DRIVE ASSY-OUTERBLAD

$

$

Not available

18

Exmark 1-513690

CLIP-DECK, HOLD UP ROD

$5.99

$

Usually ships in 3-6 days

0

19

Exmark 1-513879

DISCONTINUED (EXMARK)

$

$

Not available

20

Exmark 1-513959

WINGNUT-NYLOCK

$6.99

$

In Stock, only 3 left!

0

21

Exmark 1-523402-01

DISCONTINUED

$

$

Not available

22

Exmark 1-513196-03

PTO SHAFT,SHAFT HALF PNT

$

$

Not available

23

Exmark 1-803049

DISCONTINUED (EXMARK)

Note: Use Pro-lock nut type (P/N 840022, .5 ml tube) on set screws.

$

$

Not available

24

Exmark 1-602571-01

WLD,CHUTE DISCHARGE

$224.99

$

Usually ships in 3-6 days

0

25

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$4.49

$

In Stock, Qty 20+

0

26

Exmark 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

27

Exmark 1-513207

SHEAVE,BLADE DRIVE

$

$

Not available

28

Exmark 1-413314

HOUSING,BEARING

$226.99

$

Usually ships in 3-6 days

0

29

Exmark 1-513188

SPACER,BEARING

$23.99

$

In Stock, Qty 6

0

30

Exmark 1-303543

BEARING,HD SPINDLE

$46.99

$

In Stock, Qty 15

0

31

Exmark 1-513193

SEAL,MECHANICAL DUST

$7.49

$

In Stock, Qty 16

0

32

Exmark 1-808506

RING,SNAP WLDS N5000-244

$7.99

$

In Stock, only 4 left!

0

33

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, only 1 left!

0

34

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

35

Exmark 1-613106

SPINDLE - BLADE

$132.99

$

Usually ships in 3-6 days

0

36

Exmark 1-809035

SCRW,TPTTE HH
(Superseded to 126-1696)

$1.49

$

In Stock, only 3 left!

0

37

Exmark 1-512904-01

WLD,GEARBOX SUPPORT

$

$

Not available

38

Exmark 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

39

Exmark 1-800340

103-1026
(Superseded to 103-1026)

$5.99

$

In Stock, only 4 left!

0

40

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

41

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

42

Exmark 1-603422

ANCHOR-SPRING PLTD

$16.99

$

Usually ships in 3-6 days

0

43

Exmark 1-633482

103-6584-S
(Superseded to 103-6584-S)

$35.99

$

In Stock, Qty 20+

0

Exmark 1-633485

103-6580-S
(Superseded to 103-6580-S)

$37.99

$

In Stock, Qty 9

0

Exmark 1-633484

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK523

$39.99

$

In Stock, Qty 20+

0

44

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

45

Exmark 1-800296

323-10
(Superseded to 323-10)

$1.49

$

In Stock, Qty 20+

0

46

Exmark 1-523159

DISCONTINUED

$

$

Not available

47

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock nut type (P/N 840022, .5 ml tube) on set screws.

$2.99

$

Usually ships in 3-6 days

0

48

Exmark 1-807009

3257-5
(Superseded to 3257-5)

$6.49

$

In Stock, Qty 19

0

49

Exmark 1-803016

3234-11
(Superseded to 3234-11)

$4.49

$

In Stock, Qty 20+

0

50

Exmark 1-513635

GEARBOX, PEERLESS

$

$

Not available

51

Exmark 1-807005

3257-3
(Superseded to 3257-3)

$1.49

$

In Stock, only 2 left!

0

52

Exmark 1-522518

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-612153

DISCONTINUED (EXMARK)

Note: Deck weldment does include welded-in flow control baffles.

$

$

Not available

53

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$56.99

$

Usually ships in 3-6 days

0

54

Exmark 1-513906-01

DISCONTINUED (EXMARK)

$

$

Not available

55

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

56

Exmark 1-513910

DISCONTINUED

$

$

Not available

57

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

58

Exmark 1-803010

Rivet, 3/16
(Superseded to 3269-3)

$0.99

$

Usually ships in 3-6 days

0

59

Exmark 1-303542

O-RING

$3.49

$

In Stock, Qty 17

0

60

Exmark 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

61

Exmark 1-603602

BUSHING-ROLLER

$26.99

$

In Stock, Qty 20+

0

62

Exmark 1-800807

98-5961
(Superseded to 98-5961)

$5.99

$

In Stock, Qty 20+

0

63

Exmark 1-603001

ROD,DECK SUPPORT

$55.99

$

In Stock, only 2 left!

0

64

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

65

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.99

$

In Stock, Qty 20+

0

66

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 20+

0

67

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

68

Exmark 1-513291

DISCONTINUED

$

$

Not available

69

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$37.99

$

In Stock, Qty 9

0

Exmark MK523

Mulch Kit

$

$

Currently unavailable

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

In Stock, only 2 left!

0

74

Unknown

$

$

Not available
