EZ 4824 TF BF (966659502) - Husqvarna 48" Zero-Turn Mower (2012-06) SEAT Parts Diagram

48" Zero-Turn Mower

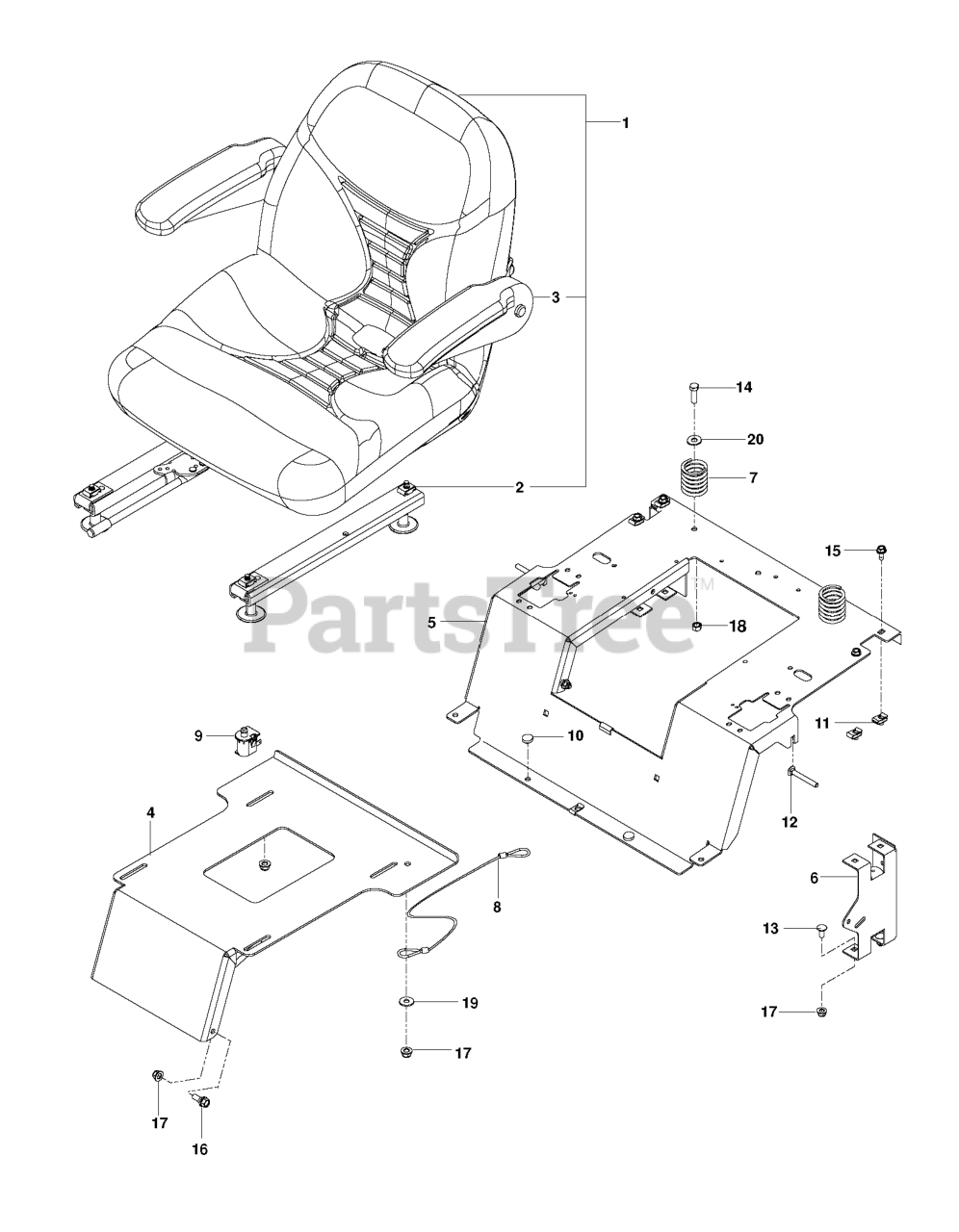

SEAT Parts Diagram

  • Title

1

Husqvarna 539130873

SEAT
(Superseded to 501580402)

$968.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112037

TRACK ADJUSTMENT KIT

Note: . 2 3

$

$

Not available

3

Husqvarna 539112036

ARMREST KIT, LT SQUARE END
(Superseded to 574201602)

$107.99

$

Usually ships in 3-10 days

0

Husqvarna 539112035

ARMREST KIT, RT SQUARE END
(Superseded to 574201601)

$119.99

$

Usually ships in 3-10 days

0

4

Husqvarna 576916802

PAN, SEAT ORG

$

$

Not available

5

Husqvarna 577260602

SUPPORT SEAT FLAT ORANGE

$

$

Not available

6

Husqvarna 580308202

SUPPORT REAR SEAT BLACK

$27.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539110300

SPRING, SEAT
(Superseded to 532124181)

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 539103247

SEAT LANYARD

$21.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$15.99

$

In Stock, Qty 6

0

10

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

11

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 18

0

12

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD
(Superseded to 510422702)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$

$

Not available

16

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$11.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 18

0
