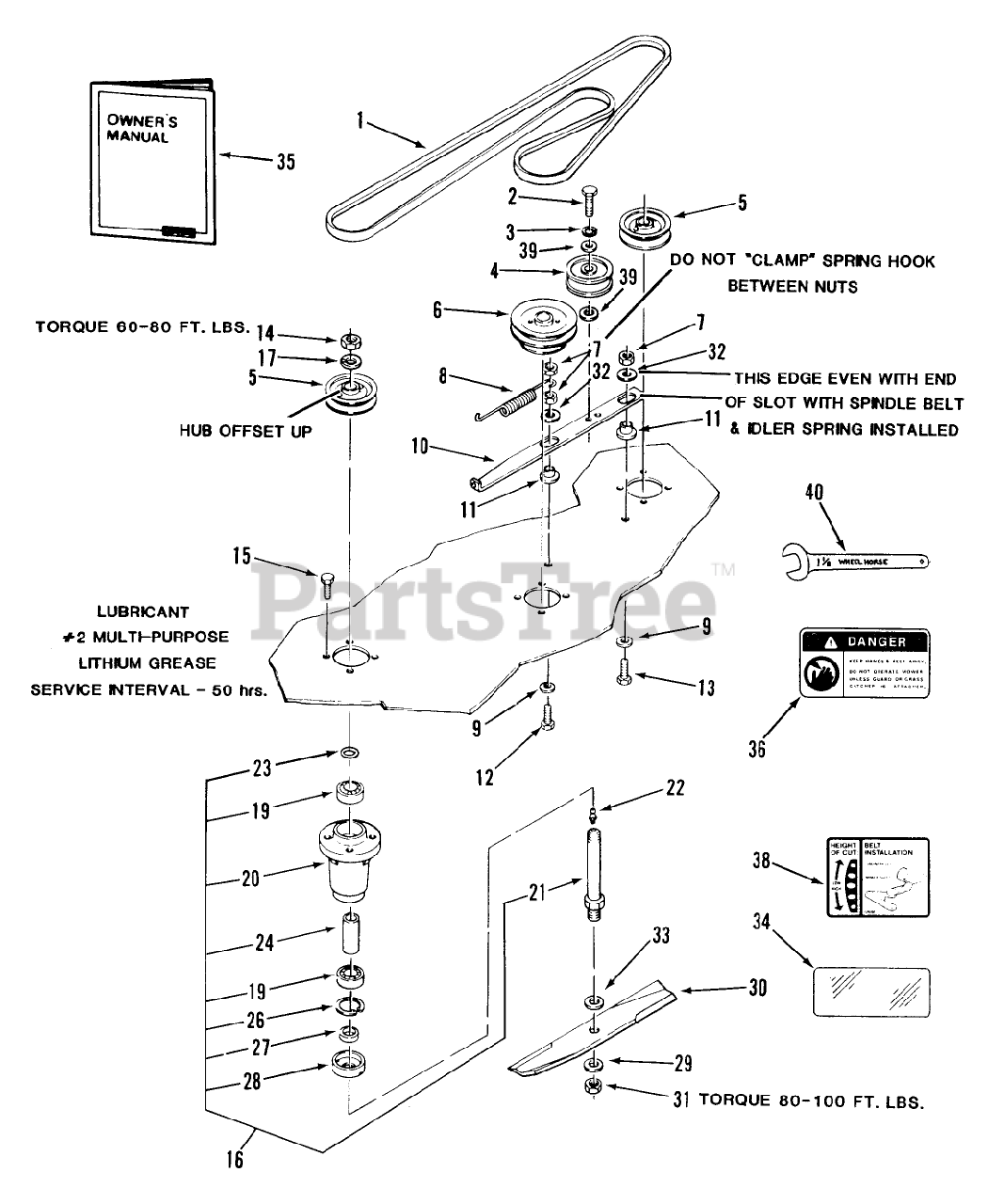

F5-48SC01 - Toro 48" Side-Discharge Mower Deck (1989) SIDE DISCHARGE MOWER-48 in. (122 cm) VEHICLE IDENTIFICATION NUMBER F5-48SC01 Parts Diagram

48" Side-Discharge Mower Deck

SIDE DISCHARGE MOWER-48 in. (122 cm) VEHICLE IDENTIFICATION NUMBER F5-48SC01 Parts Diagram

  • Title

1

Toro 1594

V-BELT

$43.99

$

In Stock, Qty 9

0

2

Toro 908035

See Supercession: 323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

3

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, only 4 left!

0

4

Toro 112895

See Supercession: 93-1622
(Superseded to 93-1622)

$54.99

$

In Stock, only 4 left!

0

5

Toro 110146

PULLEY-BLADE, DRIVE

$80.99

$

In Stock, only 2 left!

0

6

Toro 113438

PULLEY-48" MOWER CEN

$250.99

$

Usually ships in 3-6 days

0

7

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

8

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, Qty 9

0

9

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

10

Toro 106120

BAR-IDLER SUPPORT

$85.99

$

In Stock, only 2 left!

0

11

Toro 107674

SPACER-BUSHING

$2.49

$

In Stock, Qty 20+

0

12

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908035

See Supercession: 323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

14

Toro 9150894

See Supercession: 3220-6
(Superseded to 3220-6)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$1.49

$

In Stock, Qty 17

0

15

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 20+

0

16

Toro 110172

See Supercession: 111726
(Superseded to 111726)

$305.99

$

In Stock, only 1 left!

0

17

Toro 920087

See Supercession: 3253-8
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

19

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 11

0

20

Toro 114568

HOUSING-SPINDLE

$110.99

$

In Stock, only 4 left!

0

21

Toro 112674

SHAFT-SPINDLE

$96.99

$

In Stock, only 4 left!

0

22

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

23

Toro 971015

O RING

$2.49

$

In Stock, Qty 8

0

24

Toro 116085

TUBE

$37.99

$

In Stock, only 2 left!

0

26

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 20+

0

27

Toro 106068

SPACER-BLADE

$8.49

$

In Stock, Qty 5

0

28

Toro 106067

See Supercession: 106067-03
(Superseded to 106067-03)

$16.99

$

In Stock, only 2 left!

0

29

Toro 920257

See Supercession: 9202574
(Superseded to 9202574)

$2.49

$

In Stock, Qty 20+

0

30

Toro 114154

See Supercession: 115790
(Superseded to 11-5790)

$27.99

$

Usually ships in 3-6 days

0

31

Toro 9150904

See Supercession: 3220-7
(Superseded to 3220-7)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$4.99

$

In Stock, Qty 20+

0

32

Toro 107675

WASHER

$3.99

$

In Stock, Qty 20+

0

33

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$8.49

$

In Stock, only 2 left!

0

34

Toro 112403

DECAL-OVERLAY

$

$

Not available

35

Toro 810581R1

Operating and Maintenance Instruction

$

$

Currently unavailable

36

Toro 111188

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 9

0

38

Toro 106753

DECAL-HEIGHT & BELT

$

$

Not available

39

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

40

Toro 114647

DISCONTINUED

$

$

Not available
