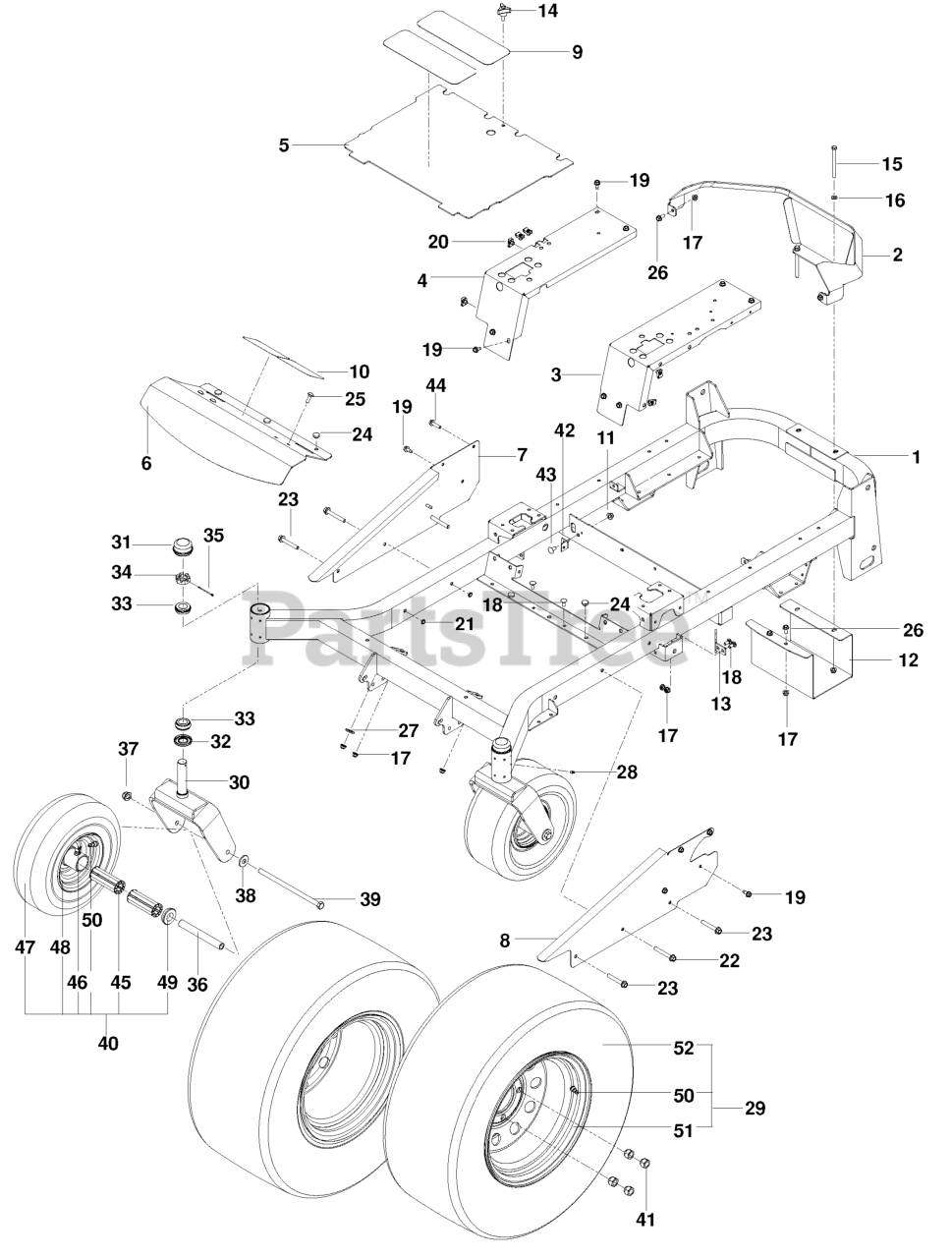

FD 52 M (966582601) - Husqvarna 52" Mower Deck Assembly (2010-02) Frame Parts Diagram

52" Mower Deck Assembly

Frame Parts Diagram

  • Title

1

Husqvarna 575608701

FRAME W/DECALS

$

$

Not available

2

Husqvarna 575348402

GUARD, REAR MZ, GRAY

$179.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539131589

PANEL, FILLER, LT

$

$

Not available

4

Husqvarna 575223802

PANEL, FILLER RH ZT, ORG

$

$

Not available

5

Husqvarna 539132744

PLATE, FLOOR W/DECALS

$167.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539132380

PLATE, FOOTREST

$143.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539131579

SIDE.RT.ORANGE

$101.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539131577

SIDE.LT.ORANGE

$96.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539977778

ANTI-SKID PAD

$4.99

$

In Stock, Qty 9

0

10

Husqvarna 539121322

FOOT PAD

$3.99

$

In Stock, only 3 left!

0

11

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 7

0

12

Husqvarna 575230402

SHIELD.MUFFLER.BLACK

$107.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505256401

STOP, DECK, EZ+

$22.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539102335

HCS 5/16C X 4
(Superseded to 596435501)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$

$

Not available

20

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 18

0

21

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 539976979)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539133006

HHFS 3/8-16 X 2.5 GR 5 ZD
(Superseded to 596581901)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

25

Husqvarna 539990208

RHSNB 5/16C X 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna 539990250

WASHER 1/2" FLAT
(Superseded to 595086801)

$3.99

$

In Stock, only 3 left!

0

28

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 576356701

WHEEL ASM, 23 X 10.5

$

$

Not available

30

Husqvarna 575329202

YOKE.CASTER.ORANGE
(Superseded to 586921902)

$56.99

$

In Stock, only 2 left!

0

31

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$7.49

$

In Stock, Qty 20+

0

32

Husqvarna 539102851

SEAL

$8.49

$

In Stock, Qty 18

0

33

Husqvarna 539102543

TAPERED ROLLER BRG

$23.99

$

In Stock, Qty 6

0

34

Husqvarna 539102852

NUT 1"C HEX SLOTTED
(Superseded to 596241501)

$14.99

$

In Stock, only 3 left!

0

35

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

36

Husqvarna 575334901

SPACER, PIVOT

$21.99

$

In Stock, Qty 15

0

37

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.99

$

In Stock, Qty 14

0

39

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5
(Superseded to 594946501)

$7.49

$

In Stock, only 4 left!

0

40

Husqvarna 575348701

TIRE.ASSEM.CASTER.13X6.5-6.SIL
(Superseded to 581199501)

$239.99

$

In Stock, Qty 11

0

41

Husqvarna 539101173

LUG NUT 1/2F
(Superseded to 587653903)

$4.99

$

In Stock, Qty 10

0

42

Husqvarna 575245202

BRACKET.DAMPENER.BLACK

$23.99

$

In Stock, only 4 left!

0

43

Husqvarna 539109117

RHSNB 3/8-16 X 3/4 GR 5 BLK ZN

$

$

Not available

44

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539105307

ROLLER BEARING-CAGED 3 1/4'

$13.99

$

In Stock, Qty 6

0

46

Husqvarna 539103300

ZERK
(Superseded to 542164296)

$3.99

$

In Stock, only 2 left!

0

47

Husqvarna 575622201

TIRE.13X6.50-6.4.PLY

$

$

Not available

48

Husqvarna 575622101

WHEEL.6X4.50.CASTER.SILVER

$

$

Not available

49

Husqvarna 539102484

BEARING RETAINER

$5.99

$

In Stock, Qty 20+

0

50

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 15

0

51

Husqvarna 539105487

12"RIM 2.5" NEG OFFSET 8.5" W

$193.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539107431

TIRE.TURF.MASTER.23X10.5-12

$239.99

$

Usually ships in 3-10 days

0
