FMD52 - Exmark 52" Turf Ranger Front Mount Mower (SN: 060000 - 069999) (1991) 52" Mower Deck Parts Diagram

52" Turf Ranger Front Mount Mower

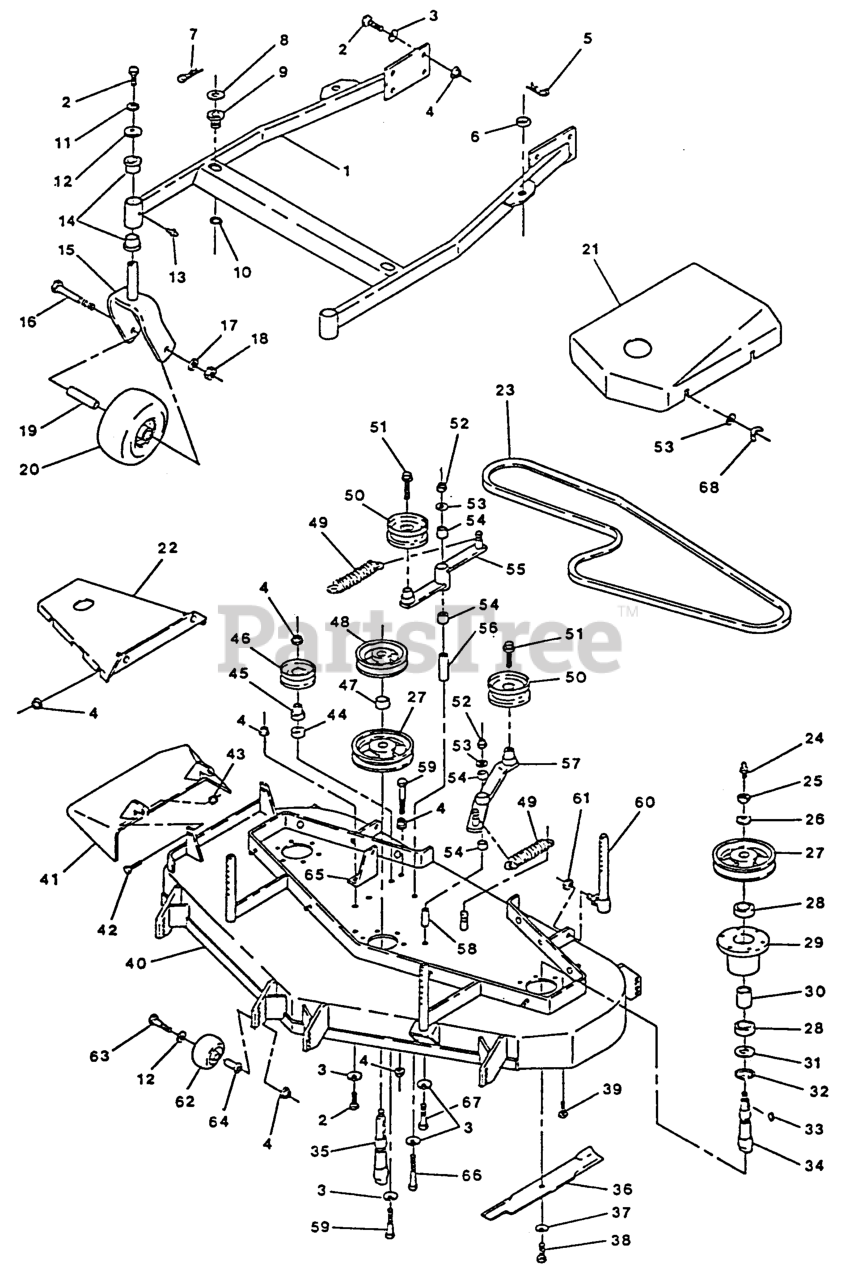

52" Mower Deck Parts Diagram

  • Title

1

Exmark 1-602573

1-604960
(Superseded to 1-604960)

$

$

Not available

2

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

3

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

4

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-806006

PIN,HAIR COTTER

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-806007

1-806009
(Superseded to 1-806009)

$3.49

$

In Stock, Qty 20+

0

8

Exmark 1-513338

WASHER-FLAT

$4.99

$

In Stock, Qty 20+

0

9

Exmark 1-513336

BUSHING-DECK

$27.99

$

In Stock, Qty 20+

0

10

Exmark 1-808507

32120-33
(Superseded to 32120-33)

$7.99

$

In Stock, Qty 20+

0

11

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 12

0

12

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

13

Exmark 1-811001

302-52
(Superseded to 302-52)

$7.49

$

In Stock, Qty 19

0

14

Exmark 1-303044

1-303514
(Superseded to 1-303514)

$13.99

$

Usually ships in 3-6 days

0

15

Exmark 1-512894

116-7941-01
(Superseded to 116-7941-01)

$108.99

$

In Stock, only 2 left!

0

16

Exmark 1-800334

325-20
(Superseded to 325-20)

$8.49

$

In Stock, Qty 14

0

17

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

18

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

19

Exmark 1-513547

SPACER

$13.99

$

In Stock, Qty 20+

0

20

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$141.99

$

In Stock, Qty 18

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$141.99

$

In Stock, Qty 18

0

Exmark 1-513808

TIRE

$54.99

$

In Stock, only 2 left!

0

Exmark 1-513809

BEARING

$39.99

$

In Stock, Qty 13

0

Exmark 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

21

Exmark 1-603547

1-544835
(Superseded to 1-544835)

$

$

Not available

22

Exmark 1-602545-01

DISCONTINUED

$

$

Not available

23

Exmark 1-603576

BELT,BLADE DRIVE
(Superseded to 1-603576-SL)

$81.99

$

In Stock, only 2 left!

0

24

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

25

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$4.49

$

In Stock, Qty 20+

0

26

Exmark 1-513208

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

27

Exmark 1-513207

SHEAVE,BLADE DRIVE

$

$

Not available

28

Exmark 1-303057

1-303543
(Superseded to 1-303543)

$46.99

$

In Stock, Qty 15

0

29

Exmark 1-513185

DISCONTINUED (EXMARK)

$

$

Not available

30

Exmark 1-513188

SPACER,BEARING

$23.99

$

In Stock, Qty 6

0

31

Exmark 1-513193

SEAL,MECHANICAL DUST

$7.49

$

In Stock, Qty 16

0

32

Exmark 1-808506

RING,SNAP WLDS N5000-244

$7.99

$

In Stock, only 4 left!

0

33

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, only 1 left!

0

34

Exmark 1-603031

SPINDLE-OUTER BLADE

$189.99

$

Usually ships in 3-6 days

0

Exmark 1-604262

CH-52&60 OUTER CUTTR

$

$

Not available

35

Exmark 1-603022

SPINDLE-CENTER BLADE

$204.99

$

In Stock, only 1 left!

0

Exmark 1-604621

DISCONTINUED

$

$

Not available

36

Exmark 1-603637

103-3229
(Superseded to 103-3229)

$33.99

$

Usually ships in 3-6 days

0

37

Exmark 1-513435

WASHER-SPRING

$6.49

$

In Stock, Qty 20+

0

38

Exmark 1-800531

3213-1
(Superseded to 3213-1)

$2.99

$

In Stock, Qty 5

0

39

Exmark 1-809035

SCRW,TPTTE HH
(Superseded to 126-1696)

$1.49

$

In Stock, only 3 left!

0

40

Exmark 1-602575

1-612155
(Superseded to 1-612155)

$

$

Not available

41

Exmark 1-602571-01

WLD,CHUTE DISCHARGE

$224.99

$

Usually ships in 3-6 days

0

42

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

43

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

44

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 3 left!

0

45

Exmark 1-403057

1-603496
(Superseded to 1-603496)

$7.99

$

In Stock, Qty 20+

0

46

Exmark 1-513304

103-0789
(Superseded to 103-0789)

$177.99

$

Usually ships in 3-6 days

0

47

Exmark 1-603504

SPACER-TUBE

$20.99

$

Usually ships in 3-6 days

0

48

Exmark 1-603581

SHEAVE,MOWER DRIVE

$193.99

$

Usually ships in 3-6 days

0

49

Exmark 1-603413

SPRING-EXTENSION

$28.99

$

In Stock, only 3 left!

0

50

Exmark 1-603497

IDLER,PULLEY

$72.99

$

In Stock, only 1 left!

0

51

Exmark 1-803016

3234-11
(Superseded to 3234-11)

$4.49

$

In Stock, Qty 20+

0

52

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

53

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

54

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

55

Exmark 1-602604

ASM,IDLER ARM

$168.99

$

Usually ships in 3-6 days

0

Exmark 1-602591

Arm Weldment - Deck Idler

$

$

Currently unavailable

56

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

57

Exmark 1-602585

1-612149
(Superseded to 1-612149)

$

$

Not available

Exmark 1-602568

1-602865
(Superseded to 1-602865)

$

$

Not available

58

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

59

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

60

Exmark 1-603540

1-411532
(Superseded to 1-411532)

$173.99

$

In Stock, only 3 left!

0

61

Exmark 1-803031

DISCONTINUED (EXMARK)

$

$

Not available

62

Exmark 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

63

Exmark 1-800806

SCRWCAPHH

$

$

Not available

64

Exmark 1-603602

BUSHING-ROLLER

$26.99

$

In Stock, Qty 20+

0

65

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$

$

Not available

66

Exmark 1-800805

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

67

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

68

Exmark 1-543678

NUT-WING

$13.99

$

In Stock, Qty 5

0
