FMD52 - Exmark 52" Turf Ranger Front Mount Mower (SN: 060000 - 069999) (1991) Transaxle Axle Sub-Assemblies Parts Diagram

52" Turf Ranger Front Mount Mower

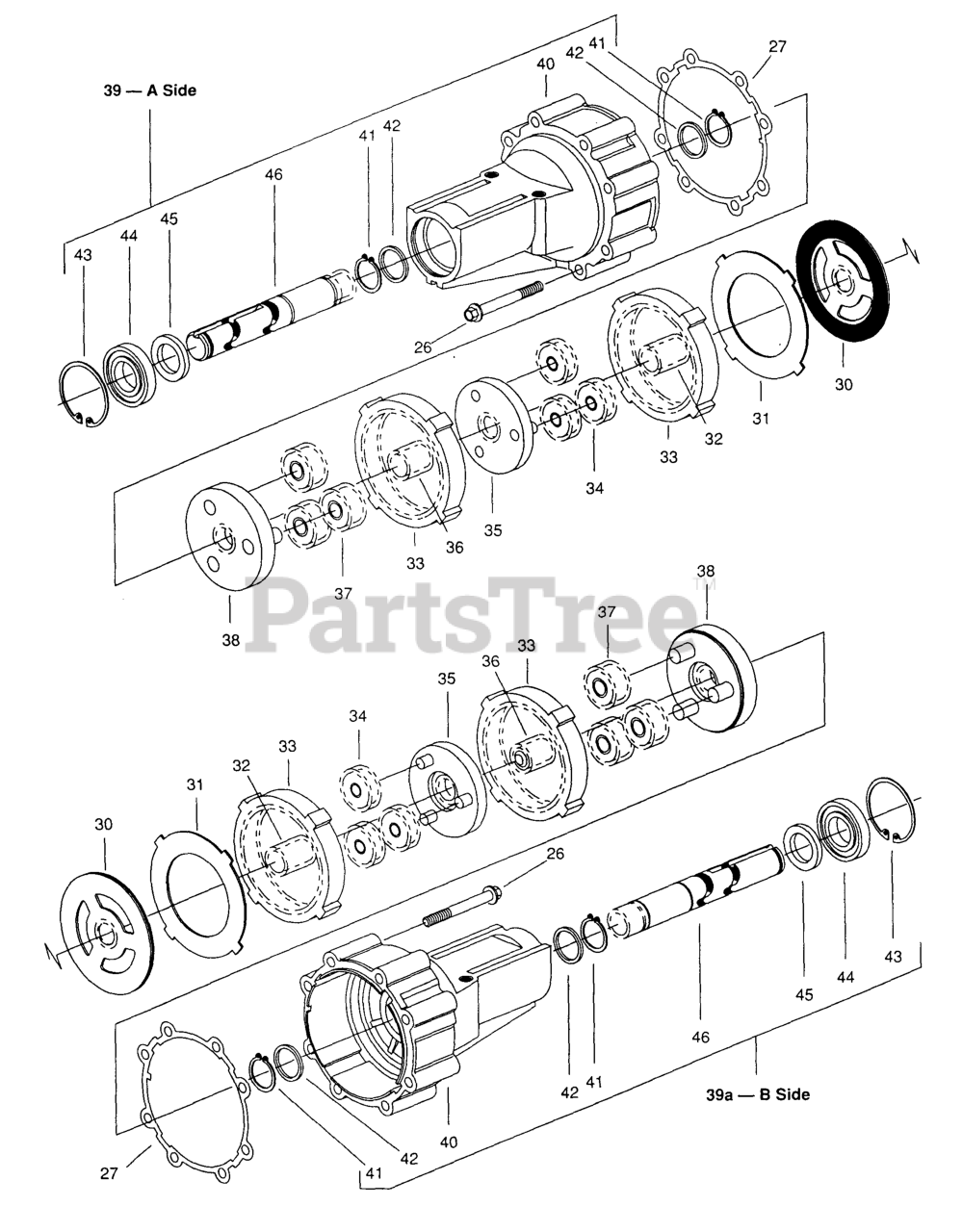

Transaxle Axle Sub-Assemblies Parts Diagram

  • Title

26

Exmark 103757-225

$

$

Currently unavailable

27

Exmark 1-106129

DISCONTINUED

$

$

Not available

28

Exmark 1-104551

MOTOR ROTOR BALL

$

$

Not available

29

Exmark 1-106054

103-0785
(Superseded to 103-0785)

$

$

Not available

30

Exmark 1-106414

DISCONTINUED

$

$

Not available

31

Exmark 1-106104

BACKUP PLATE

$

$

Not available

32

Exmark 1-104338

DISCONTINUED

$

$

Not available

33

Exmark 1-106027

RING GEAR 57T

$

$

Not available

34

Exmark 1-106167

103-5917
(Superseded to 103-5917)

$

$

Not available

35

Exmark 1-106174

PRIMARY CARRIER 15T

$

$

Not available

36

Exmark 1-104812

1-104984
(Superseded to 1-104984)

$

$

Not available

Exmark 1-104984

DISCONTINUED

$

$

Not available

37

Exmark 1-106169

103-3301
(Superseded to 103-3301)

$

$

Not available

Exmark 1-106204

103-3301
(Superseded to 103-3301)

$

$

Not available

38

Exmark 1-106137

SECONDARY CARRIER SA

$

$

Not available

39

Exmark 106178-000

Tapered Axle Kit, LH B
(Superseded to 1-551014)

$1555.99

$

Usually ships in 3-6 days

0

39A

Exmark 106178-000

Tapered Axle Kit, LH B
(Superseded to 1-551014)

$1555.99

$

Usually ships in 3-6 days

0

Exmark 1-106190

Note: Magnet (S/A) - Not Shown (Removal Not Recommended).

$

$

Currently unavailable

40

Exmark 1-106162

1-106620
(Superseded to 1-106620)

$

$

Not available

41

Exmark 103983-098

External Retaining Ring

$8.99

$

Usually ships in 3-6 days

0

42

Exmark 1-103966

THRUST WASHER

$

$

Not available

43

Exmark 101680-206

Internal Retaining Ring

$52.99

$

Usually ships in 3-6 days

0

44

Exmark 1-104928

DISCONTINUED

$

$

Not available

45

Exmark 1-103960

DISCONTINUED

$

$

Not available

46

Exmark 106177-000

$

$

Not available

Exmark 106177-000

$

$

Not available
