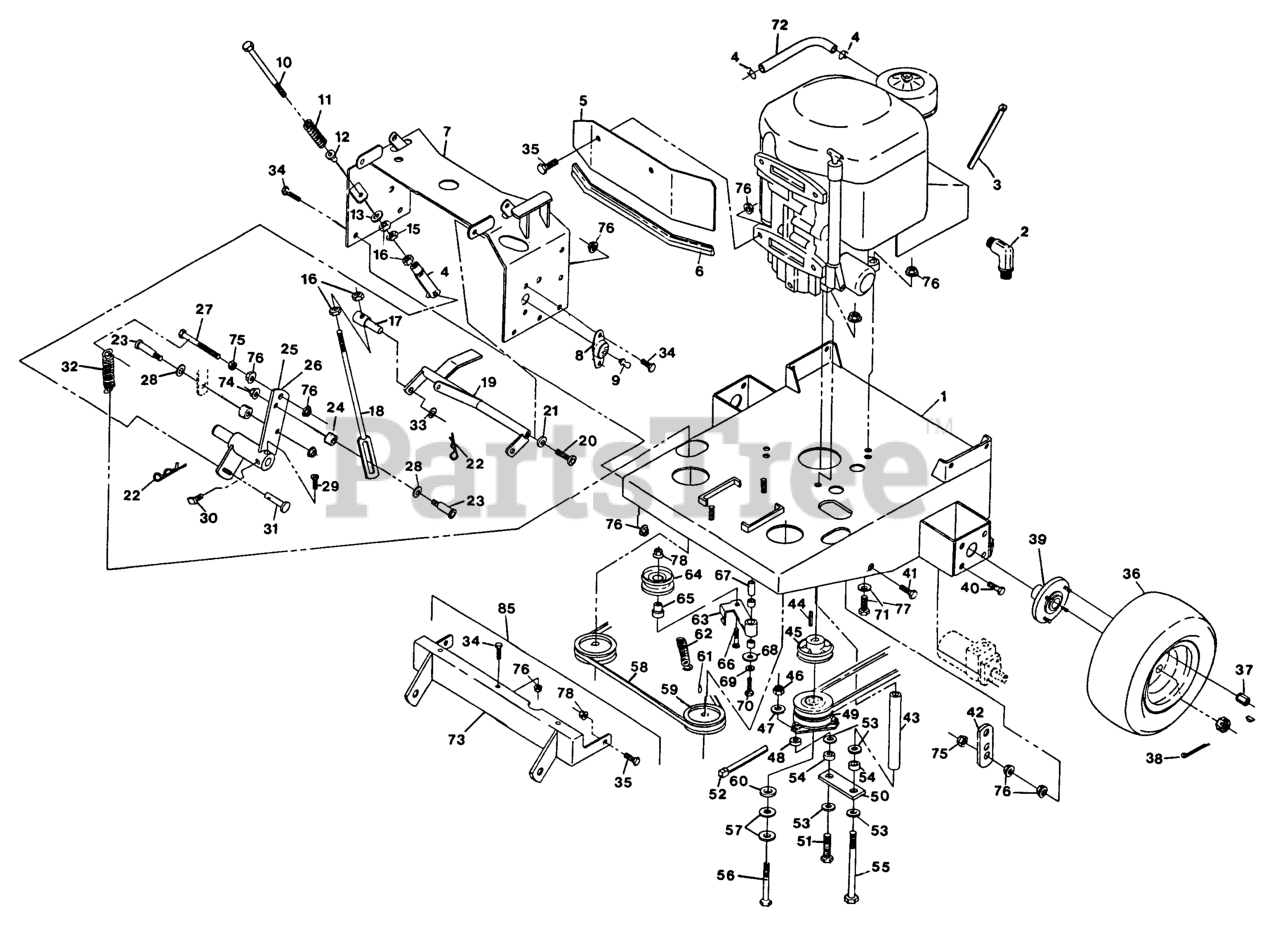

FMD52 - Exmark 52" Turf Tracer Hydro Walk-Behind Mower (SN: 070000 - 079999) (1992) Engine Deck Group Parts Diagram

52" Turf Tracer Hydro Walk-Behind Mower

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-602746

$

$

Currently unavailable

2

Exmark 1-303431

FITTING-ELBOW-90

Note: (Kohler)

$

$

Not available

3

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-603613-01

SHIELD-HEAT, TRACER

Note: (Kohler Only)

$

$

Not available

6

Exmark 1-603615

DISCONTINUED (EXMARK)

Note: (Kohler Only)

$

$

Not available

7

Exmark 1-602744

1-612165-01
(Superseded to 1-612165-01)

$

$

Not available

8

Exmark 1-543514

FLANGE MTG, SIDE

$

$

Not available

9

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

10

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, Qty 6

0

11

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.99

$

In Stock, only 2 left!

0

12

Exmark 1-603735

BUSHING-FLANGED

$6.99

$

In Stock, only 2 left!

0

13

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

14

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, Qty 7

0

15

Exmark 1-804758

3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 19

0

16

Exmark 1-804521

3219-2
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 20+

0

17

Exmark 1-603676

126-8571
(Superseded to 126-8571)

$5.99

$

In Stock, Qty 14

0

18

Exmark 1-602742

1-613206
(Superseded to 1-613206)

$21.99

$

In Stock, only 2 left!

0

19

Exmark 1-602695-01

DISCONTINUED (EXMARK)

$

$

Not available

20

Exmark 1-809056

SCREW-HSH

$8.49

$

In Stock, Qty 9

0

21

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

23

Exmark 1-809057

SCREW-HSH

$

$

Not available

24

Exmark 1-603903

SPACER

$5.99

$

In Stock, Qty 10

0

25

Exmark 1-602671-01

DISCONTINUED

$

$

Not available

26

Exmark 1-602673-01

WLD,LH CONTROL ARM

$149.99

$

Usually ships in 3-6 days

0

27

Exmark 1-800274

322-6
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0

28

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

29

Exmark 1-809058

DISCONTINUED

$

$

Not available

30

Exmark 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

31

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

32

Exmark 1-603693

SPRING-EXTENSION

$15.99

$

In Stock, only 3 left!

0

33

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

34

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

35

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

36

Exmark 1-603714

1-413473
(Superseded to 1-413473)

$228.99

$

In Stock, only 2 left!

0

37

Exmark 1-513011

242-50
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

38

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-603666

112-9049
(Superseded to 112-9049)

$209.99

$

In Stock, only 4 left!

0

40

Exmark 1-803045

3234-12
(Superseded to 3234-12)

$1.99

$

Usually ships in 3-6 days

0

41

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 1-603801

ANCHOR-SPRING

$23.99

$

Usually ships in 3-6 days

0

43

Exmark 1-603469-01

DISCONTINUED

$

$

Not available

44

Exmark 1-807270

DISCONTINUED

$

$

Not available

45

Exmark 1-603589

DISCONTINUED

$

$

Not available

46

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

47

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-323093

DISCONTINUED

$

$

Not available

49

Exmark 1-603539

1-611223
(Superseded to 1-611223)

$

$

Not available

50

Exmark 1-543004

1-541047
(Superseded to 1-541047)

$

$

Not available

51

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

52

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

53

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

54

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.99

$

In Stock, only 2 left!

0

55

Exmark 1-800282

SCREW-HH

Note: (Kohler)

$5.99

$

In Stock, only 1 left!

0

Exmark 1-809049

SCRW,HX HD

Note: (Kaw.)

$18.99

$

Usually ships in 3-6 days

0

56

Exmark 1-800820

3212-12
(Superseded to 3212-12)

Note: (Kohler)

$3.49

$

In Stock, Qty 6

0

Exmark 1-809050

33115-070
(Superseded to 33115-070)

Note: (Kaw.)

$9.49

$

Usually ships in 3-6 days

0

57

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

58

Exmark 1-603809

BELT-HYDRO TRANS DR

$46.99

$

Usually ships in 3-6 days

0

59

Exmark 1-603778

SHEAVE - PUMP

$120.99

$

Usually ships in 3-6 days

0

60

Exmark 1-603609

BUSHING,CLUTCH KEEPER

$31.99

$

In Stock, only 2 left!

0

61

Exmark 1-807272

KEY

$6.49

$

In Stock, Qty 20+

0

62

Exmark 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

63

Exmark 1-602521

IDLER ARM ASM

$125.99

$

Usually ships in 3-6 days

0

Exmark 1-602458

1-602521
(Superseded to 1-602521)

$125.99

$

Usually ships in 3-6 days

0

64

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$36.99

$

In Stock, Qty 20+

0

65

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

66

Exmark 1-807517

3231-29
(Superseded to 3231-29)

$8.49

$

In Stock, Qty 16

0

67

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

68

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

69

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 12

0

70

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

71

Exmark 1-303334

WASHER-SPRING

Note: (Kaw. Only)

$2.99

$

In Stock, Qty 20+

0

72

Exmark 1-303426

HOSE-FUEL

$

$

Not available

73

Exmark 1-602438-01

WLD,SULKY HITCH

$

$

Not available

74

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

75

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

76

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

77

Exmark 1-800275

322-7
(Superseded to 322-7)

Note: (Kohler Only)

$1.49

$

In Stock, Qty 20+

0

Exmark 1-809018

33114-030
(Superseded to 33114-030)

Note: (Kawasaki Only)

$1.99

$

Usually ships in 3-6 days

0

78

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

79

Engine - 14 Hp Kawasaki

$

$

Not available

Engine - 18 Hp Kohler

$

$

Not available

80

Air Filter - Kohler #45-083-02

$

$

Not available

Air Filter - 14 Hp Kawasaki #11013-2110

$

$

Not available

81

Foam Precleaner - Kohler #45-083-01

$

$

Not available

Foam Precleaner - Kawasaki #11013-2109

$

$

Not available

82

Oil Filter - Kohler #52-050-02

$

$

Not available

Oil Filter - Kawasaki #49065-2071

$

$

Not available

83

Exmark 1-603306

BELT,DECK DRIVE
(Superseded to 1-603306-SL)

$71.99

$

In Stock, Qty 8

0

Exmark 1-603582

DISCONTINUED

$

$

Not available

84

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

85

Exmark 1-601000

Turf Tracer Hydro Kit, Hitch Sulky

$

$

Currently unavailable
