FMD603 - Exmark 60" Turf Tracer Hydro Walk-Behind Mower (SN: 220000 - 259999) (2000) Handle And Controls Parts Diagram

60" Turf Tracer Hydro Walk-Behind Mower

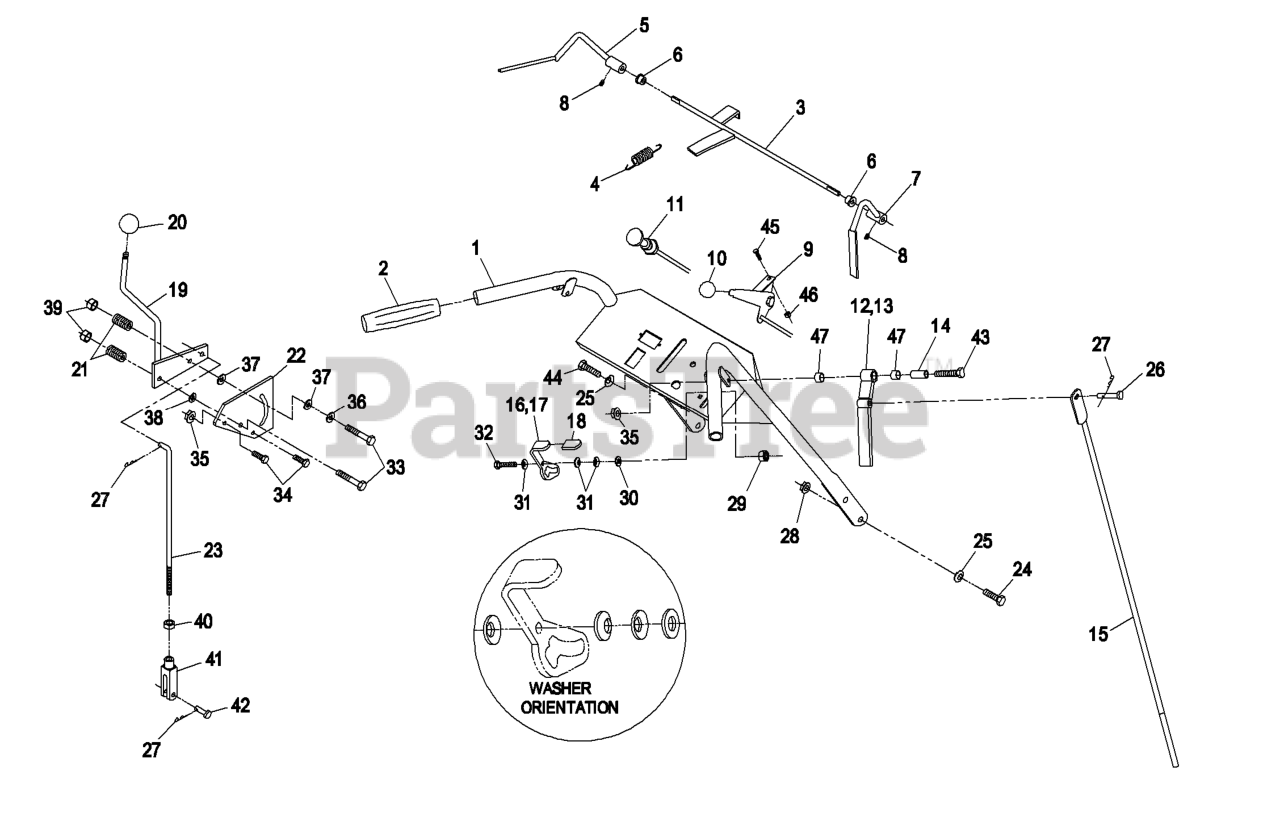

Handle And Controls Parts Diagram

  • Title

1

Exmark 1-612294

103-0215
(Superseded to 103-0215)

$

$

Not available

2

Exmark 1-303097

104-9838
(Superseded to 104-9838)

$6.49

$

In Stock, Qty 20+

0

3

Exmark 1-612187-01

WLD,ROD OPC

$

$

Not available

4

Exmark 1-303363

SPRING-EXTENSION

$7.49

$

In Stock, Qty 15

0

5

Exmark 1-412183-03

LEVER-LH

Note: Use Pro-Lock Retaining 1 (P/N 840023 5cc Tube) on inside bore of OPC Hub

$87.99

$

In Stock, only 4 left!

0

6

Exmark 1-303365

BUSHING-NYLON

$5.99

$

In Stock, Qty 20+

0

7

Exmark 1-412185-03

LEVER-RH

Note: Use Pro-Lock Retaining 1 (P/N 840023 5cc Tube) on inside bore of OPC Hub

$91.99

$

In Stock, only 3 left!

0

8

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock Nut Type (P/N 840022 5 ml. Tube) on setscrews and on shifter knob threads

$1.49

$

In Stock, Qty 20+

0

9

Exmark 1-633696

THROTTLE CABLE ASM

$68.99

$

In Stock, Qty 19

0

Exmark 1-613247

CABLE,THROTTLE

$

$

Not available

10

Exmark 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 16

0

11

Exmark 1-603336

CONTROL-CHOKE

$44.99

$

In Stock, Qty 13

0

12

Exmark 1-412161

103-0219
(Superseded to 103-0219)

Note: (Shown)

$176.99

$

Usually ships in 3-6 days

0

13

Exmark 1-412159

103-0218
(Superseded to 103-0218)

Note: (Not Shown)

$176.99

$

Usually ships in 3-6 days

0

14

Exmark 1-603749

BUSHING-LEVER, DRIVE

$8.99

$

In Stock, Qty 5

0

15

Exmark 1-613189

ROD,DRIVE LEVER

$

$

Not available

16

Exmark 1-612168

137-9514
(Superseded to 137-9514)

Note: (Shown)

$50.99

$

Usually ships in 3-6 days

0

17

Exmark 1-612167

137-9515
(Superseded to 137-9515)

$49.99

$

Usually ships in 3-6 days

0

18

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, only 2 left!

0

19

Exmark 1-602733

106-2748
(Superseded to 106-2748)

$127.99

$

In Stock, only 2 left!

0

20

Exmark 1-603175

KNOB-BALL

Note: Use Pro-Lock Nut Type (P/N 840022 5 ml. Tube) on setscrews and on shifter knob threads

$12.99

$

In Stock, only 3 left!

0

21

Exmark 1-323245

SPRING-COMPRESSION

$7.49

$

In Stock, Qty 20+

0

22

Exmark 1-603730

PLATE-LEVER, SHIFTER

$42.99

$

Usually ships in 3-6 days

0

23

Exmark 1-603700

ROD,SPEED CONTROL

$

$

Not available

24

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

25

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

26

Exmark 1-613055

PIN-CLEVIS

$9.99

$

Usually ships in 3-6 days

0

27

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

28

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

31

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

32

Exmark 1-800257

321-10
(Superseded to 321-10)

$1.49

$

In Stock, Qty 20+

0

33

Exmark 1-800277

322-10
(Superseded to 322-10)

$0.99

$

In Stock, only 4 left!

0

34

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

35

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-603716

WASHER-FRICTION

$5.99

$

In Stock, Qty 20+

0

37

Exmark 1-323244

WASHER-FRICTION
(Superseded to 93-1633)

$3.49

$

In Stock, only 2 left!

0

38

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

39

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

40

Exmark 1-804758

3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 19

0

41

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, Qty 7

0

42

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

43

Exmark 1-800256

321-9
(Superseded to 321-9)

$5.49

$

In Stock, Qty 5

0

44

Exmark 1-800293

323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

45

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

46

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

47

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

In Stock, only 2 left!

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

$23.99

$

Usually ships in 3-6 days

0
