FMD604 - Exmark 60" Turf Ranger Front Mount Mower (SN: 320000 - 369999) (2002) 60" Mower Deck FMD604 Parts Diagram

60" Turf Ranger Front Mount Mower

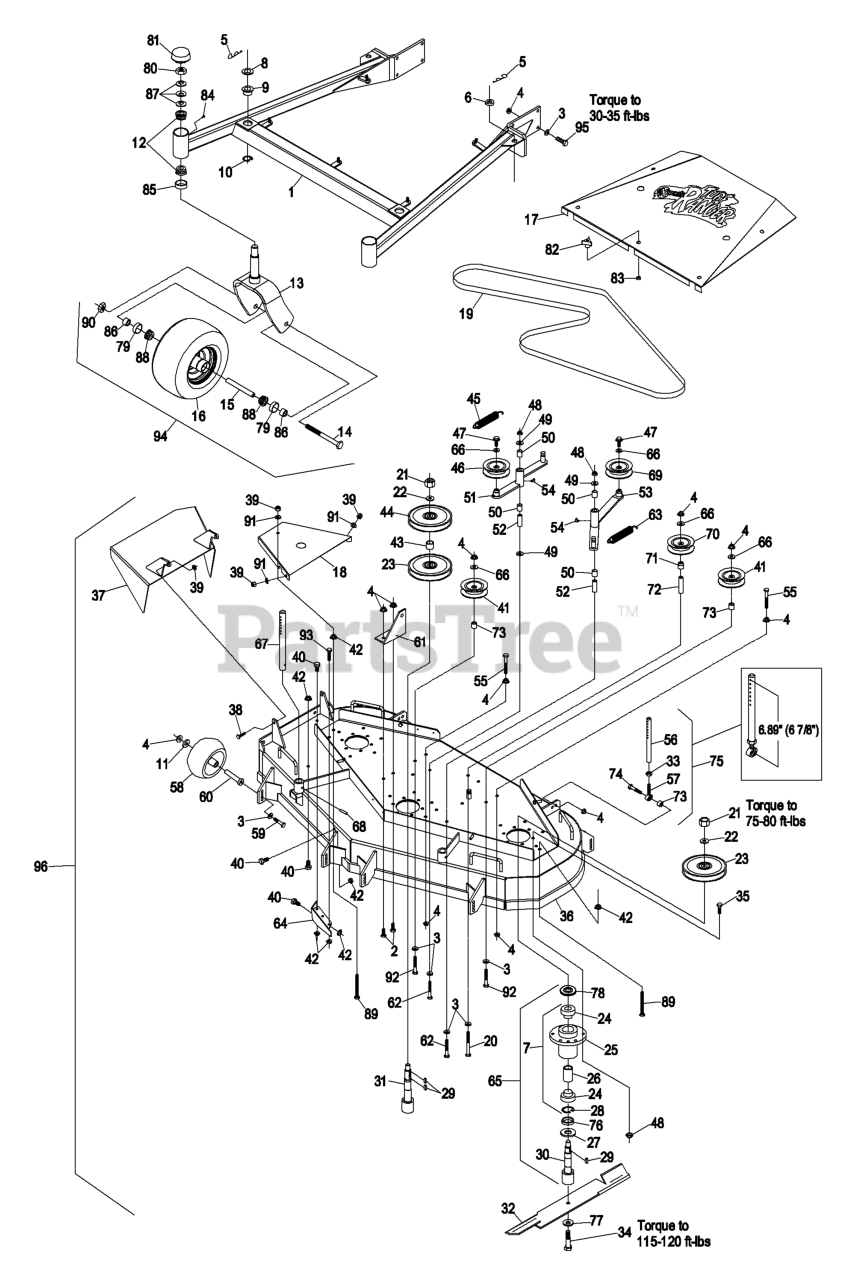

60" Mower Deck FMD604 Parts Diagram

  • Title

1

Exmark 103-1896

ASM,FMD604 DK SUPPORT, SE

$

$

Not available

2

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

4

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-806009

PIN,HAIR COTTER

$3.49

$

In Stock, Qty 20+

0

6

Exmark 1-323539

SPACER

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$298.99

$

In Stock, Qty 17

0

8

Exmark 1-413425

SPACER-DECK SUPPORT

$6.99

$

In Stock, Qty 20+

0

9

Exmark 1-513336

BUSHING-DECK

$27.99

$

In Stock, Qty 20+

0

10

Exmark 32120-33

RING-RETAINING

$7.99

$

In Stock, Qty 20+

0

11

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

12

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

Exmark 1-543508

CUP-BEARING

$8.99

$

In Stock, Qty 20+

0

13

Exmark 103-1891-01

WLD, CASTER FORK

$131.99

$

Usually ships in 3-6 days

0

14

Exmark 325-20

SCREW-HH

$8.49

$

In Stock, Qty 10

0

15

Exmark 103-2355

SPACER,FRONT CASTER

$15.99

$

Usually ships in 3-6 days

0

16

Exmark 103-1687

103-3800
(Superseded to 103-3800)

$254.99

$

In Stock, only 2 left!

0

Exmark 1-513032

TIRE

$121.99

$

Usually ships in 3-6 days

0

Exmark 103-2274

103-3800
(Superseded to 103-3800)

$254.99

$

In Stock, only 2 left!

0

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

17

Exmark 103-2276

KIT,SHIELD TR604 W/ DECAL

$

$

Not available

18

Exmark 103-2271-01

103-2967-01
(Superseded to 103-2967-01)

$83.99

$

Usually ships in 3-6 days

0

Exmark 103-2272-01

103-2968-01
(Superseded to 103-2968-01)

$83.99

$

Usually ships in 3-6 days

0

19

Exmark 1-633173

BELT,MULE DRIVE
(Superseded to 1-633173-SL)

$117.99

$

In Stock, Qty 20+

0

20

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

21

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

22

Exmark 1-513208

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

23

Exmark 1-633701

SHEAVE,BLADE DRIVE

$95.99

$

In Stock, only 3 left!

0

24

Exmark 1-513016

BEARING

$92.99

$

In Stock, Qty 20+

0

25

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$298.99

$

In Stock, Qty 17

0

26

Exmark 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 6

0

27

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.99

$

In Stock, Qty 12

0

28

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

29

Exmark 10-8040

KEY-SQUARE

$3.49

$

In Stock, Qty 9

0

30

Exmark 103-2326

SPINDLE,SHORT

$147.99

$

Usually ships in 3-6 days

0

31

Exmark 103-2219

SPINDLE,LONG

$236.99

$

Usually ships in 3-6 days

0

32

Exmark 1-633483

103-2530-S
(Superseded to 103-2530-S)

$37.99

$

In Stock, Qty 20+

0

Exmark 1-613250

103-1580-S
(Superseded to 103-1580-S)

$44.99

$

In Stock, Qty 8

0

Exmark 1-613111

103-2510-S
(Superseded to 103-2510-S)

$46.99

$

In Stock, only 3 left!

0

Exmark 103-0301

103-0301-S
(Superseded to 103-0301-S)

Note: Requires Installation Of Micro-Mulch Accessory For Proper Mulching. Mulch Kit P/N Mk604.

$41.99

$

In Stock, only 1 left!

0

Exmark 103-1580

103-1580-S
(Superseded to 103-1580-S)

$44.99

$

In Stock, Qty 8

0

33

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

0

34

Exmark 103-0862

SCREW-CAP

$6.49

$

In Stock, Qty 20+

0

35

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 103-2278

103-8388
(Superseded to 103-8388)

$4456.99

$

Usually ships in 3-6 days

0

37

Exmark 103-2349-01

WLD,CHUTE FMD604

$196.99

$

Usually ships in 3-6 days

0

38

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

40

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

41

Exmark 1-303516

IDLER,PULLEY

$70.99

$

In Stock, only 3 left!

0

42

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

43

Exmark 1-603504

SPACER-TUBE

$20.99

$

Usually ships in 3-6 days

0

44

Exmark 103-2270

SHEAVE,DECK DRIVE

$

$

Not available

45

Exmark 1-603413

SPRING-EXTENSION

$28.99

$

In Stock, only 3 left!

0

46

Exmark 1-603497

IDLER,PULLEY

$72.99

$

In Stock, only 1 left!

0

47

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

48

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

49

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

50

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

51

Exmark 1-602604

ASM,IDLER ARM

$168.99

$

Usually ships in 3-6 days

0

Exmark 1-602591-03

1-602604
(Superseded to 1-602604)

$168.99

$

Usually ships in 3-6 days

0

52

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

53

Exmark 1-602865

ASM,IDLER ARM

$

$

Not available

Exmark 1-602867-03

Arm, Deck Drive Idler

$

$

Currently unavailable

54

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

55

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

56

Exmark 1-413525

LINK,SUPPORT

$54.99

$

In Stock, Qty 5

0

57

Exmark 1-613204

BALLJOINT

$36.99

$

In Stock, Qty 20+

0

58

Exmark 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

59

Exmark 98-5961

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

60

Exmark 1-603602

BUSHING-ROLLER

$26.99

$

In Stock, Qty 20+

0

61

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$

$

Not available

62

Exmark 1-800805

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

63

Exmark 1-603414

SPRING-EXTENSION

$25.99

$

In Stock, Qty 9

0

64

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$56.99

$

Usually ships in 3-6 days

0

65

Exmark 103-2314

ASM,CUTTER HSG FMD604 CEN

Note: Includes Sheaves, Washer, Spacer & Nut.

$909.99

$

Usually ships in 3-6 days

0

Exmark 103-1140

ASM,SPINDLE HSG COMPLETE

Note: Includes Sheave, Washer & Nut.

$716.99

$

Usually ships in 3-6 days

0

66

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

67

Exmark 1-603001

ROD,DECK SUPPORT

$55.99

$

In Stock, only 2 left!

0

68

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

69

Exmark 1-613098

PULLEY-IDLER

$51.99

$

In Stock, Qty 20+

0

70

Exmark 1-603805

PULLEY-IDLER

$67.99

$

In Stock, Qty 6

0

71

Exmark 1-513791

BUSHING,IDLER

$5.99

$

In Stock, only 1 left!

0

72

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$13.99

$

In Stock, only 3 left!

0

73

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 3 left!

0

74

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

75

Exmark 1-414521

1-411532
(Superseded to 1-411532)

Note: Must Be Assembled To 6.89" (Or Approx. 6 7/8") Length Between Center Of Ball Joint & Center Of Furthest Hole. See Illustration.

$173.99

$

In Stock, only 3 left!

0

76

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.99

$

In Stock, only 4 left!

0

77

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$6.49

$

In Stock, Qty 20+

0

78

Exmark 103-1331

GUARD,BEARING TOP .880

$7.49

$

In Stock, only 1 left!

0

79

Exmark 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

80

Exmark 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

81

Exmark 1-543513

CAP-GREASE

$9.49

$

In Stock, Qty 20+

0

82

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

83

Exmark 1-323417

WASHER

$3.99

$

In Stock, Qty 20+

0

84

Exmark 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

85

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

86

Exmark 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 20+

0

87

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

88

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$25.99

$

In Stock, Qty 20+

0

89

Exmark 1-800017

BOLT,TAP HH

$7.99

$

In Stock, only 1 left!

0

90

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

91

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

92

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

93

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

94

Exmark 103-2495

103-3800
(Superseded to 103-3800)

$254.99

$

In Stock, only 2 left!

0

95

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

96

Exmark 103-2279

Complete Deck Assembly

$

$

Currently unavailable

Exmark MK604

Mulch Kit

$

$

Currently unavailable

Exmark 103-2250

Idler Pulley Kit

Note: Use To Install A FMD 524 Or 604 De

$

$

Currently unavailable

Exmark 850337

Red Spray Paint S/N 102,00 & Higher

$

$

Currently unavailable
