FMD604 - Exmark 60" Turf Ranger Front Mount Mower (SN: 440000 - 509999) (2004) Deck Support 52" And 60" Parts Diagram

60" Turf Ranger Front Mount Mower

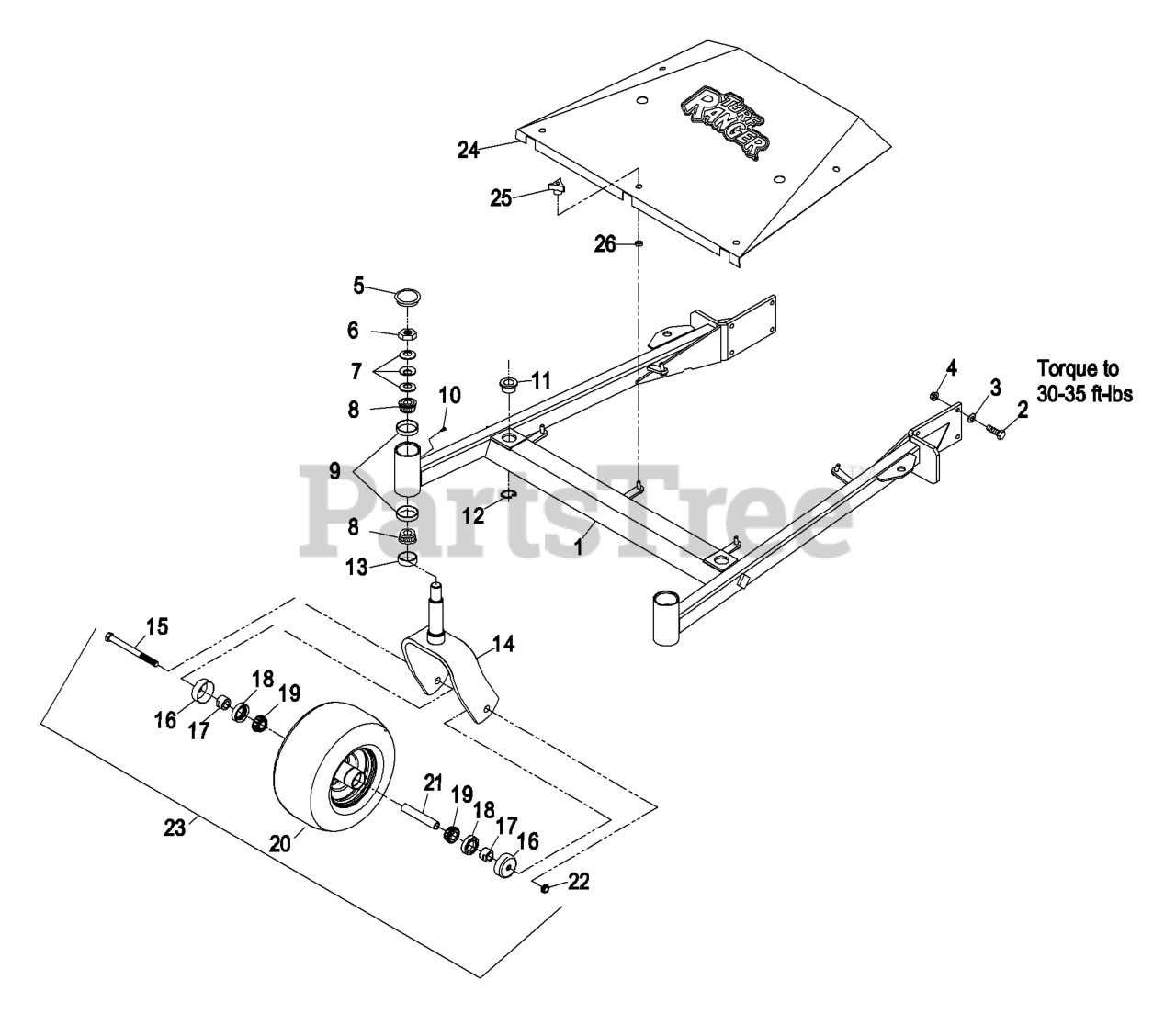

Deck Support 52" And 60" Parts Diagram

  • Title

1

Exmark 103-1895

ASM,524 FMD DK SUPPORT,SE

Note: Includes frame weldment plus items #5, #9, #10, #11, #12 and #13.

$1364.99

$

Usually ships in 3-6 days

0

Exmark 103-1896

ASM,FMD604 DK SUPPORT, SE

Note: Includes frame weldment plus items #5, #9, #10, #11, #12 and #13.

$

$

Not available

2

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

4

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Exmark 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0

6

Exmark 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

7

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

8

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

9

Exmark 1-543508

CUP-BEARING

$8.99

$

In Stock, Qty 20+

0

10

Exmark 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

11

Exmark 1-513336

BUSHING-DECK

$27.99

$

In Stock, Qty 20+

0

12

Exmark 32120-33

RING-RETAINING

$7.99

$

In Stock, Qty 20+

0

13

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

14

Exmark 103-1891-01

WLD, CASTER FORK

$131.99

$

Usually ships in 3-6 days

0

15

Exmark 325-20

SCREW-HH

$8.49

$

In Stock, Qty 10

0

16

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

17

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut, Item #17.

$9.49

$

In Stock, Qty 20+

0

18

Exmark 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

19

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$25.99

$

In Stock, Qty 20+

0

20

Exmark 1-513032

TIRE

$121.99

$

Usually ships in 3-6 days

0

21

Exmark 103-3157

126-5359
(Superseded to 126-5359)

$20.99

$

In Stock, only 2 left!

0

22

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

23

Exmark 103-3800

WHEEL AND TIRE ASM

$254.99

$

In Stock, only 2 left!

0

24

Exmark 103-2333

KIT,SHIELD TR W/ DECALS F

$

$

Not available

Exmark 103-2276

KIT,SHIELD TR604 W/ DECAL

$

$

Not available

25

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

26

Exmark 1-323417

WASHER

$3.99

$

In Stock, Qty 20+

0
