FR25KD - Exmark Front Runner Front Mount Mower, 25hp Kubota Diesel (SN: 720000 - 789999) (2008) Auxiliary Hydraulic Group Parts Diagram

Front Runner Front Mount Mower, 25hp Kubota Diesel

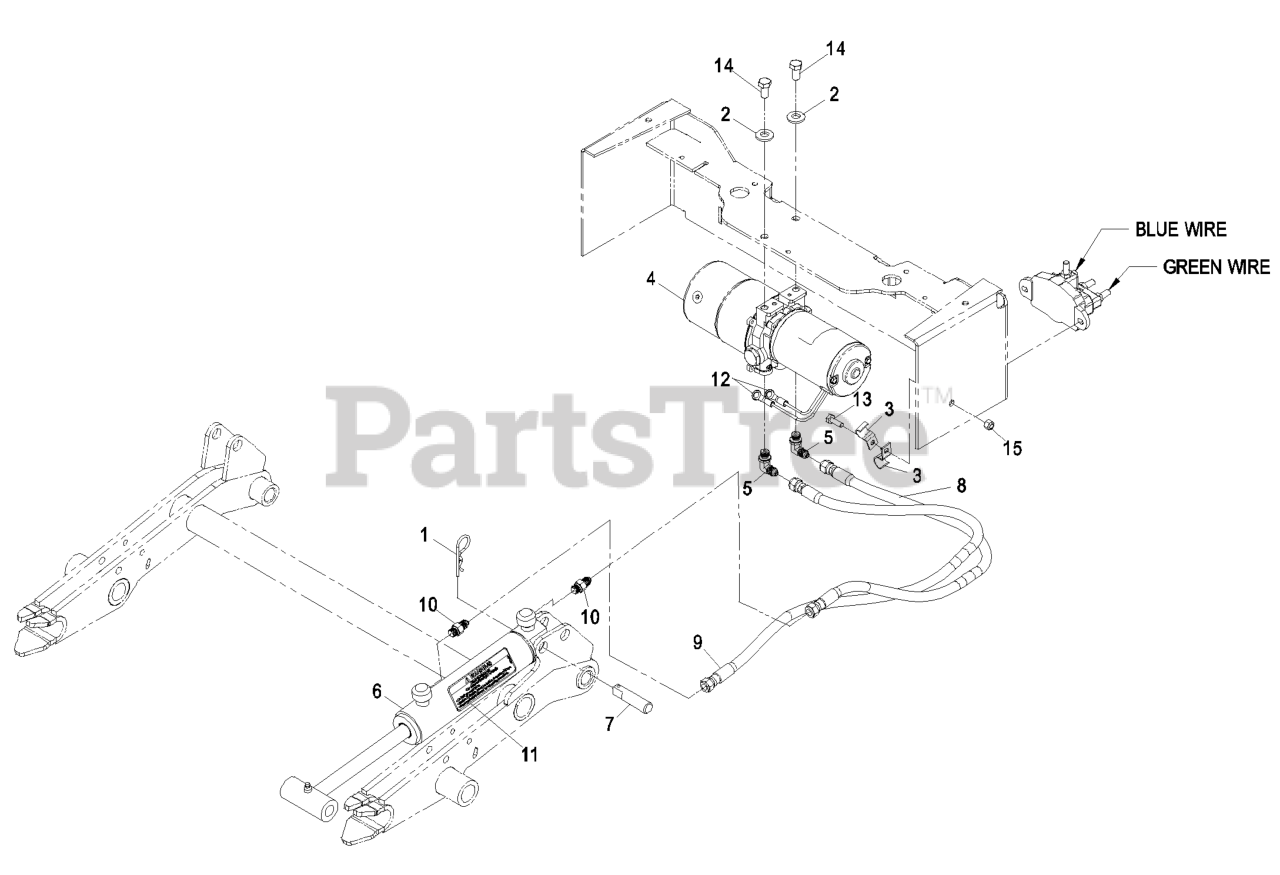

Auxiliary Hydraulic Group Parts Diagram

  • Title

1

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Exmark 103-1193

CLIP-HALF, LOOM

$

$

Not available

4

Exmark 109-2853

109-3930
(Superseded to 109-3930)

Note: Includes item #12.

$

$

Not available

5

Exmark 109-0760

ADAPTER,90 DEG

$29.99

$

Usually ships in 3-6 days

0

Exmark 109-1284

O-RING,-4 FLARE-O(SERVICE

Note: (37° Flare #4)

$

$

Not available

Exmark 1-603923

O-RING

Note: (SAE #4)

$3.49

$

Usually ships in 3-6 days

0

6

Exmark 109-2812

ASM,FMZ HYD CYLINDER

$635.99

$

Usually ships in 3-6 days

0

Exmark 109-2856

KIT,FMZ HYD CYLINDER SEAL

$

$

Not available

7

Exmark 109-1180

PIN,CYLINDER MOUNT RR

$

$

Not available

8

Exmark 109-2015

ASM,HYDRAULIC HOSE -4

$

$

Not available

9

Exmark 109-2016

ASM,HYDRAULIC HOSE -4

$

$

Not available

10

Exmark 109-2017

ADAPTER,STRAIGHT ORIFICED

$14.99

$

Usually ships in 3-6 days

0

Exmark 109-1284

O-RING,-4 FLARE-O(SERVICE

Note: (37° Flare #4)

$

$

Not available

Exmark 1-603923

O-RING

Note: (SAE #4)

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 109-2377

DECAL,HIGH PRESSURE OIL

$

$

Not available

12

Exmark 109-2663

TERMINAL,RING 5/16" INSUL

$

$

Not available

13

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

15

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
