FR31BV - Exmark Front Runner Front Mount Mower, 31hp Briggs & Stratton (SN: 720000 - 789999) (2008) Hydraulic Group Parts Diagram

Front Runner Front Mount Mower, 31hp Briggs & Stratton

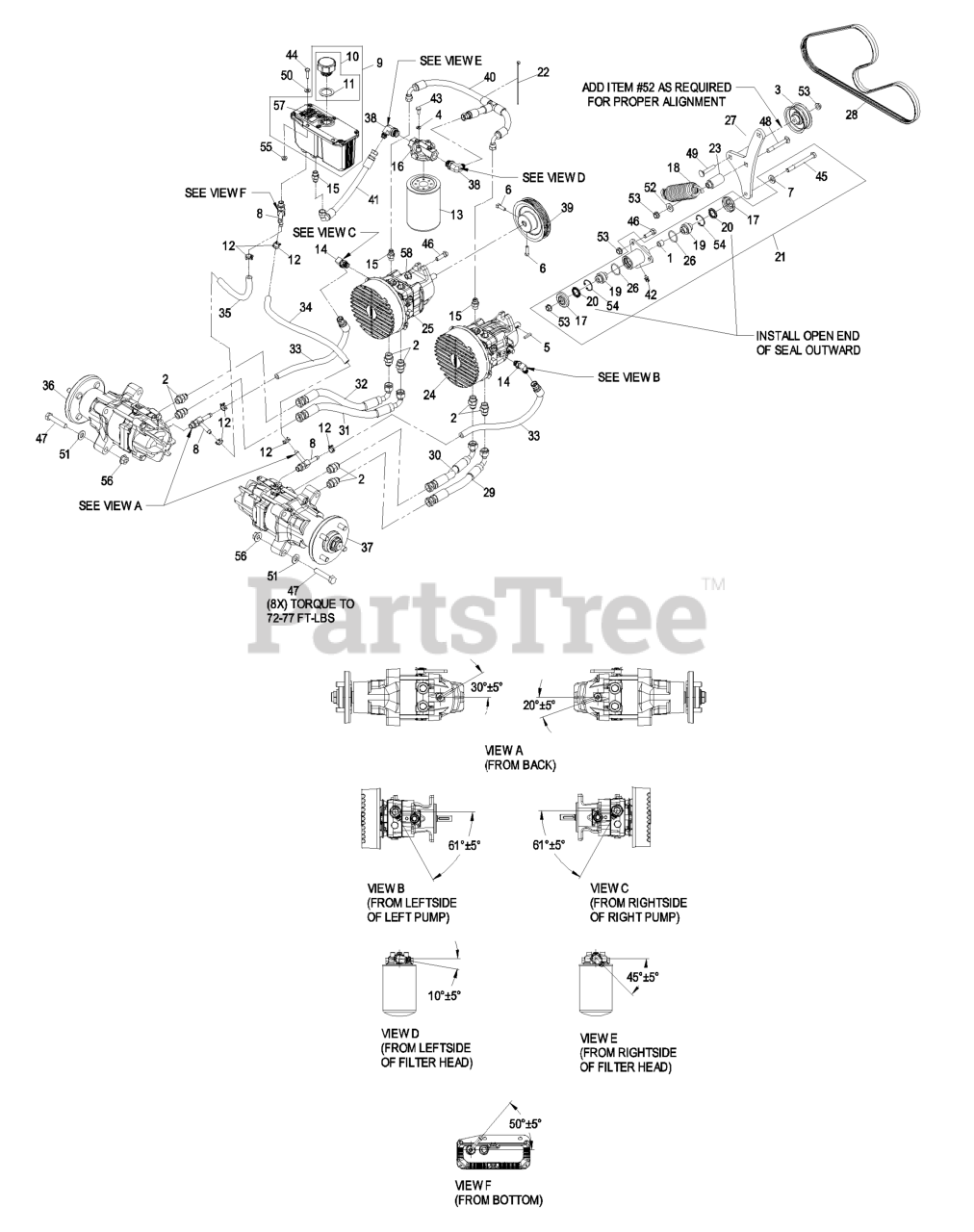

Hydraulic Group Parts Diagram

  • Title

1

Exmark 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 20+

0

2

Exmark 1-603990

FITTING-STRAIGHT

Note: (23HP)

$19.99

$

In Stock, only 4 left!

0

Exmark 1-603992

O-RING

Note: (37° Flare #8)

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

Note: (SAE #8)

$3.99

$

In Stock, Qty 20+

0

3

Exmark 109-4076

PULLEY-FLAT IDLER

$18.99

$

In Stock, only 1 left!

0

4

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

5

Exmark 1-807272

KEY

Note: (23HP)

$6.49

$

In Stock, Qty 20+

0

Exmark 103-2739

KEY

Note: (27 & 31HP)

$2.99

$

In Stock, Qty 12

0

6

Exmark 30-1710

SCREW-SET

Note: Use Prolock, Nut Type (P/N 1-840022, .5ml tube) on setscrews, items #6.

$12.99

$

In Stock, only 2 left!

0

7

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

8

Exmark 103-1828

ADAPTER-RUN, TEE

$51.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

Note: (SAE #6)

$3.49

$

In Stock, Qty 14

0

9

Exmark 103-1947

HYD RESERVOIR ASM

Note: (23HP)

$286.99

$

Usually ships in 3-6 days

0

Exmark 109-0582

HYDRAULIC TANK ASM

Note: (27 & 31HP)

$468.99

$

Usually ships in 3-6 days

0

10

Exmark 103-7615

KIT,HYD RES CAP W/GASKET

$37.99

$

In Stock, Qty 20+

0

11

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

13

Exmark 103-2146

FILTER,XP HYD 25 MICRON

$76.99

$

In Stock, Qty 20+

0

14

Exmark 103-2155

FITTING-90 DEG

$34.99

$

Usually ships in 3-6 days

0

15

Exmark 103-2156

FITTING-STRAIGHT

Note: (23HP)

$46.99

$

In Stock, only 3 left!

0

Exmark 103-1020

O-RING

Note: (37° Flare #6)

$1.49

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

Note: (SAE #6)

$3.49

$

In Stock, Qty 14

0

Exmark 1-603990

FITTING-STRAIGHT

Note: (27 & 31HP)

$19.99

$

In Stock, only 4 left!

0

Exmark 103-1020

O-RING

Note: (37° Flare #6)

$1.49

$

Usually ships in 3-6 days

0

Exmark 1-603920

O-RING

Note: (SAE #8)

$3.99

$

In Stock, Qty 20+

0

16

Exmark 103-2259

HEAD-FILTER

$

$

Not available

17

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

18

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 20+

0

19

Exmark 103-3504

BEARING-SPHERICAL

$28.99

$

In Stock, Qty 20+

0

20

Exmark 103-3506

SEAL-LIP, SINGLE

$6.49

$

In Stock, Qty 20+

0

21

Exmark 103-6409

KIT,'04 XP PUMP IDLER

$210.99

$

In Stock, only 1 left!

0

22

Exmark 1-303287

TIE-CABLE

Note: (Small)

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 103-8011

SPACER, SPRING 1.75 (PLAT

$

$

Not available

24

Exmark 103-9196

116-2442
(Superseded to 116-2442)

Note: (LH) (23HP)

$

$

Not available

Exmark 103-7441

104-5311
(Superseded to 104-5311)

Note: Hydro Pump Service Kits 23HP

$50.99

$

In Stock, only 3 left!

0

Exmark 103-7443

CYLINDER BLOCK KIT

Note: Hydro Pump Service Kits 23HP

$435.99

$

Usually ships in 3-6 days

0

Exmark 103-8448

94-6922
(Superseded to 94-6922)

Note: Hydro Pump Service Kits 23HP

$70.99

$

In Stock, only 2 left!

0

Exmark 105-6184

SEAL OVERHAUL KIT

Note: Hydro Pump Service Kits 23HP

$101.99

$

In Stock, Qty 9

0

Exmark 103-7488

PUMP-COOLING

Note: Hydro Pump Service Kits 23HP

$83.99

$

In Stock, only 1 left!

0

Exmark 103-7489

GUARD-PUMP

Note: Hydro Pump Service Kits 23HP

$99.99

$

In Stock, only 4 left!

0

24

Exmark 103-8357

PUMP,HYDRO PR W/FAN LH

Note: (LH) (27 & 31HP)

$

$

Not available

Exmark 109-2863

KIT-INPUT SHAFT AND BEARI

Note: Hydro Pump Service Kits 27HP & 31HP

$625.99

$

Usually ships in 3-6 days

0

Exmark 109-2864

KIT,CYLINDER BLOCK PR

Note: Hydro Pump Service Kits 27HP & 31HP

$

$

Not available

Exmark 109-2865

BEARING-THRUST
(Superseded to 112-4154)

Note: Hydro Pump Service Kits 27HP & 31HP

$117.99

$

Usually ships in 3-6 days

0

Exmark 109-2866

PR OVERHAUL SEAL KIT

Note: Hydro Pump Service Kits 27HP & 31HP

$149.99

$

Usually ships in 3-6 days

0

Exmark 109-2867

PLATE,VALVE PR

Note: Hydro Pump Service Kits 27HP & 31HP

$

$

Not available

Exmark 103-7488

PUMP-COOLING

Note: Hydro Pump Service Kits 27HP & 31HP

$83.99

$

In Stock, only 1 left!

0

Exmark 103-7489

GUARD-PUMP

Note: Hydro Pump Service Kits 27HP & 31HP

$99.99

$

In Stock, only 4 left!

0

25

Exmark 103-9197

PUMP,HYDRO PJ W/FAN RH

Note: (RH) (23HP)

$

$

Not available

Exmark 103-7441

104-5311
(Superseded to 104-5311)

Note: Hydro Pump Service Kits 23HP

$50.99

$

In Stock, only 3 left!

0

Exmark 103-7443

CYLINDER BLOCK KIT

Note: Hydro Pump Service Kits 23HP

$435.99

$

Usually ships in 3-6 days

0

Exmark 103-8448

94-6922
(Superseded to 94-6922)

Note: Hydro Pump Service Kits 23HP

$70.99

$

In Stock, only 2 left!

0

Exmark 105-6184

SEAL OVERHAUL KIT

Note: Hydro Pump Service Kits 23HP

$101.99

$

In Stock, Qty 9

0

Exmark 103-7488

PUMP-COOLING

Note: Hydro Pump Service Kits 23HP

$83.99

$

In Stock, only 1 left!

0

Exmark 103-7489

GUARD-PUMP

Note: Hydro Pump Service Kits 23HP

$99.99

$

In Stock, only 4 left!

0

25

Exmark 103-8358

PUMP,HYDRO PR W/FAN RH

Note: (RH) (27 & 31HP)

$

$

Not available

Exmark 109-2863

KIT-INPUT SHAFT AND BEARI

Note: Hydro Pump Service Kits 27HP & 31HP

$625.99

$

Usually ships in 3-6 days

0

Exmark 109-2864

KIT,CYLINDER BLOCK PR

Note: Hydro Pump Service Kits 27HP & 31HP

$

$

Not available

Exmark 109-2865

BEARING-THRUST
(Superseded to 112-4154)

Note: Hydro Pump Service Kits 27HP & 31HP

$117.99

$

Usually ships in 3-6 days

0

Exmark 109-2866

PR OVERHAUL SEAL KIT

Note: Hydro Pump Service Kits 27HP & 31HP

$149.99

$

Usually ships in 3-6 days

0

Exmark 109-2867

PLATE,VALVE PR

Note: Hydro Pump Service Kits 27HP & 31HP

$

$

Not available

Exmark 103-7488

PUMP-COOLING

Note: Hydro Pump Service Kits 27HP & 31HP

$83.99

$

In Stock, only 1 left!

0

Exmark 103-7489

GUARD-PUMP

Note: Hydro Pump Service Kits 27HP & 31HP

$99.99

$

In Stock, only 4 left!

0

26

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

27

Exmark 109-5949-03

ARM,IDLER

$

$

Not available

28

Exmark 109-0816

BELT,5K EL-54.50
(Superseded to 109-0816-SL)

$59.99

$

In Stock, only 2 left!

0

29

Exmark 109-0899

HOSE,HYDRAULIC LH LOWER

$140.99

$

Usually ships in 3-6 days

0

30

Exmark 109-0900

HOSE,HYDRAULIC LH UPPER

$140.99

$

Usually ships in 3-6 days

0

31

Exmark 109-0901

HOSE,HYDRAULIC RH LOWER

$139.99

$

Usually ships in 3-6 days

0

32

Exmark 109-0902

HOSE,HYDRAULIC RH UPPER

$139.99

$

Usually ships in 3-6 days

0

33

Exmark 109-1008

ASM,CASE DRAIN

$30.99

$

Usually ships in 3-6 days

0

34

Exmark 109-1009

HOSE,CASE DRAIN LH

$

$

Not available

35

Exmark 109-1010

HOSE,CASE DRAIN RH

$8.99

$

Usually ships in 3-6 days

0

36

Exmark 109-1055

MOTOR,PRM18-RH

Note: (RH) (23HP)

$1653.99

$

Usually ships in 3-6 days

0

Exmark 103-9762

"DISC" KIT,SEAL

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9763

HANDLE,ACTUATING

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9764

CLIP-RETAINING

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9765

NUT,HEX TOPLOCK 1-20 UNEF

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-4242

ASM, WHEEL HUB W/STUDS

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-7447

STUD,WHEEL
(Superseded to 135-7526)

Note: Wheel Motor Service Kits

$5.99

$

Usually ships in 3-6 days

0

36

Exmark 103-9519

DISCONTINUED

Note: (RH) (27HP & 31HP)

$

$

Not available

Exmark 103-9762

"DISC" KIT,SEAL

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9763

HANDLE,ACTUATING

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9764

CLIP-RETAINING

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9765

NUT,HEX TOPLOCK 1-20 UNEF

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-4242

ASM, WHEEL HUB W/STUDS

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-7447

STUD,WHEEL
(Superseded to 135-7526)

Note: Wheel Motor Service Kits

$5.99

$

Usually ships in 3-6 days

0

37

Exmark 109-1056

MOTOR,PRM18-LH

Note: (LH) (23HP)

$1653.99

$

Usually ships in 3-6 days

0

Exmark 103-9762

"DISC" KIT,SEAL

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9763

HANDLE,ACTUATING

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9764

CLIP-RETAINING

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9765

NUT,HEX TOPLOCK 1-20 UNEF

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-4242

ASM, WHEEL HUB W/STUDS

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-7447

STUD,WHEEL
(Superseded to 135-7526)

Note: Wheel Motor Service Kits

$5.99

$

Usually ships in 3-6 days

0

37

Exmark 103-9520

MOTOR,PRM20-LH

Note: (LH) (27 & 31HP)

$

$

Not available

Exmark 103-9762

"DISC" KIT,SEAL

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9763

HANDLE,ACTUATING

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9764

CLIP-RETAINING

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9765

NUT,HEX TOPLOCK 1-20 UNEF

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-4242

ASM, WHEEL HUB W/STUDS

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-7447

STUD,WHEEL
(Superseded to 135-7526)

Note: Wheel Motor Service Kits

$5.99

$

Usually ships in 3-6 days

0

38

Exmark 109-1217

ADAPTER,90 DEG

Note: (23HP)

$

$

Not available

Exmark 103-2153

FITTING-90 DEG

Note: (27HP & 31HP)

$54.99

$

Usually ships in 3-6 days

0

Exmark 103-1020

O-RING

Note: (37° Flare #6)

$1.49

$

Usually ships in 3-6 days

0

Exmark 1-603920

O-RING

Note: (SAE #8)

$3.99

$

In Stock, Qty 20+

0

39

Exmark 109-2201

SHEAVE,5K POLY-V

Note: (23HP)

$

$

Not available

Exmark 109-2202

SHEAVE

Note: (27HP & 31HP)

$175.99

$

Usually ships in 3-6 days

0

40

Exmark 109-2655

ASM,CHARGE HOSE TEE

Note: (23HP)

$

$

Not available

Exmark 109-4644

ASM,CHARGE HOSE TEE PR

Note: (27HP & 31HP)

$

$

Not available

41

Exmark 109-2656

ASM,CHARGE HOSE

Note: (23HP)

$

$

Not available

Exmark 109-4645

ASM,CHARGE HOSE PR

Note: (27HP & 31HP)

$

$

Not available

42

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

43

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

45

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

46

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

47

Exmark 325-10

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

48

Exmark 3231-10

SCREW-CARR

$4.99

$

In Stock, only 4 left!

0

49

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

50

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

53

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

54

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

55

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

56

Exmark 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

57

Exmark 1-523552

116-0404
(Superseded to 116-0404)

$2.49

$

In Stock, Qty 11

0

58

Exmark 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

59

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
