FR31BV - Exmark Front Runner Front Mount Mower, 31hp Briggs & Stratton (SN: 720000 - 789999) (2008) Main Frame Group Parts Diagram

Front Runner Front Mount Mower, 31hp Briggs & Stratton

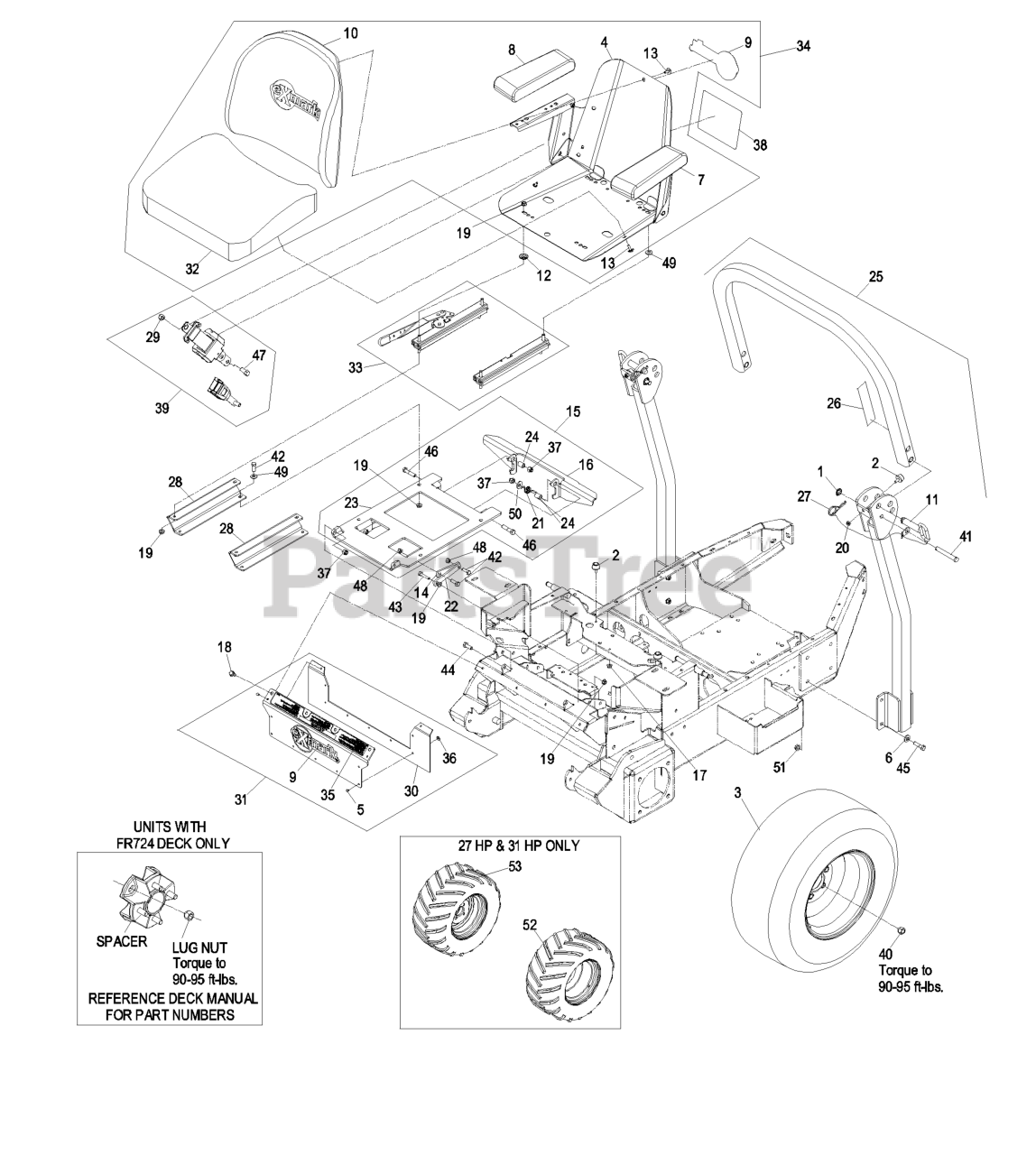

Main Frame Group Parts Diagram

  • Title

1

Exmark 1-323142

NUT-PUSH

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 109-2365

BUMPER-RUBBER

$5.99

$

In Stock, Qty 20+

0

3

Exmark 109-3339

ASM,WHEEL AND TIRE

Note: (23HP)

$

$

Not available

Exmark 1-633008

87-3290
(Superseded to 87-3290)

$

$

Not available

Exmark 109-3338

WHEEL 12X8.50X.165 CNTR

$

$

Not available

4

Exmark 1-633859

FRAME-SEAT

$209.99

$

In Stock, only 1 left!

0

5

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

7

Exmark 103-0291

CUSHION,ARMREST LH

$109.99

$

In Stock, only 2 left!

0

8

Exmark 103-0292

CUSHION,ARMREST RH

$109.99

$

In Stock, only 3 left!

0

9

Exmark 103-2882

DECAL,EXMARK LOGO

$12.99

$

In Stock, Qty 8

0

10

Exmark 103-3520

CUSHION,SEAT BACK

$259.99

$

Usually ships in 3-6 days

0

11

Exmark 103-4553

PIN-FOLD, ROPS
(Superseded to 161-4477)

Note: Includes ROPS fold pin plus hairpin, item #27.

$37.99

$

Usually ships in 3-6 days

0

12

Exmark 1-543401

SPACER-TRACK

$5.49

$

In Stock, only 4 left!

0

13

Exmark 103-8383

BOLT-SEAT

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 103-5161

LINK-STOP, SEAT

$

$

Not available

15

Exmark 103-6761

ASM, SEAT FRAME FMZ

Note: Does not include item #19 or #48.

$

$

Not available

16

Exmark 103-6765-03

DISCONTINUED

$

$

Not available

17

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

18

Exmark 9264964

SCREW-HWH, THREAD CUT

$1.99

$

In Stock, only 4 left!

0

19

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

21

Exmark 103-8316

DISCONTINUED

$

$

Not available

22

Exmark 103-8826

LINK,FMZ LWR SEAT STOP (P

$

$

Not available

23

Exmark 103-6761

ASM, SEAT FRAME FMZ

$

$

Not available

24

Exmark 1-633080

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

25

Exmark 109-2817

KIT,ROPS FMZ

Note: Rollover protection frame is serviced as a complete assembly only. Includes complete ROPS frame, mounting hardware, fold pivot and locking hardware, seat frame assembly item #15 and seat belt assembly item #39.

$

$

Not available

26

Exmark 107-2102

DECAL-WARNING, FOLDING RO

$10.99

$

Usually ships in 3-6 days

0

27

Exmark 107-3155

HAIRPIN

$7.49

$

Usually ships in 3-6 days

0

28

Exmark 109-3633-03

SUPPORT, ANGLED SEAT

$

$

Not available

29

Exmark 3296-7

NUT-LOCK

$4.49

$

Usually ships in 3-6 days

0

30

Exmark 109-0768

Skirt, Rubber

$

$

Currently unavailable

31

Exmark 109-3547

ASM,FRONT CONSOLE W/ DECA

$

$

Not available

32

Exmark 109-2008

116-6143
(Superseded to 116-6143)

$533.99

$

Usually ships in 3-6 days

0

33

Exmark 109-2009

DISCONTINUED

$

$

Not available

34

Exmark 109-2005

116-6142
(Superseded to 116-6142)

Note: Includes armrests and seat back decal. Does not include seat belt tracks.

$

$

Not available

35

Exmark 109-2360

DECAL,TOP CONSOLE

$

$

Not available

36

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

38

Exmark 109-3637

DECAL,FR SERVICE AID

$

$

Not available

39

Exmark 110-0883

RETRACTABLE SEATBELT KIT

$298.99

$

Usually ships in 3-6 days

0

40

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

41

Exmark 283-69

PIN-CLEVIS

$11.99

$

Usually ships in 3-6 days

0

42

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

45

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

47

Exmark 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

48

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

49

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

51

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

52

Exmark 109-3479

ASM,WHEEL AND TIRE LUG LH

Note: (LH) (27 & 31HP)

$672.99

$

Usually ships in 3-6 days

0

Exmark 109-3156

RIM

$267.99

$

In Stock, only 3 left!

0

Exmark 103-6771

TIRE (24X12-12) 4-PLY LUG

$398.99

$

Usually ships in 3-6 days

0

53

Exmark 109-3478

ASM,WHEEL AND TIRE LUG RH

Note: (RH) (27 & 31HP)

$693.99

$

Usually ships in 3-6 days

0

Exmark 109-3156

RIM

$267.99

$

In Stock, only 3 left!

0

Exmark 103-6771

TIRE (24X12-12) 4-PLY LUG

$398.99

$

Usually ships in 3-6 days

0
