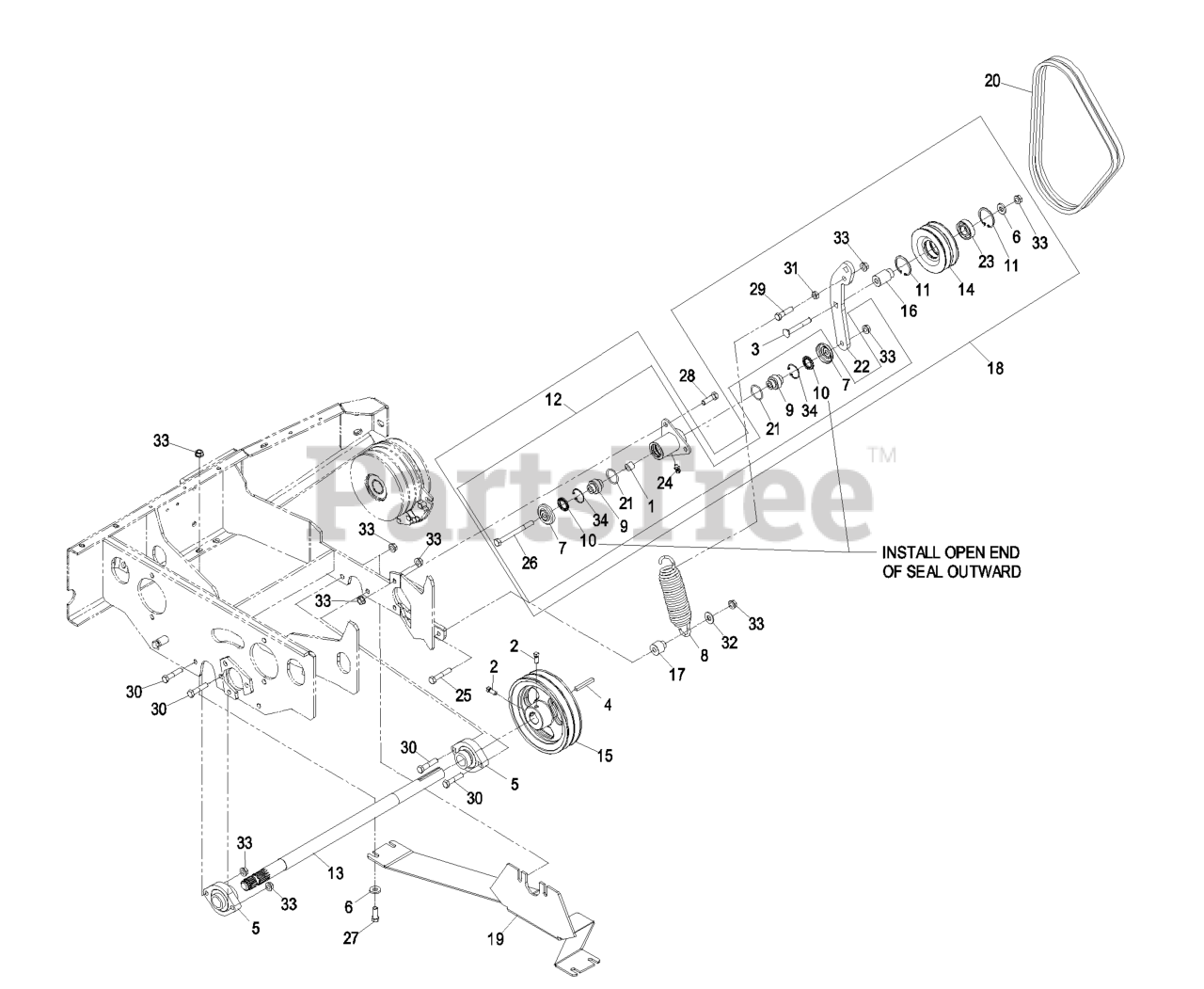

FR31BV - Exmark Front Runner Front Mount Mower, 31hp Briggs & Stratton (SN: 720000 - 789999) (2008) PTO Drive Group Parts Diagram

Front Runner Front Mount Mower, 31hp Briggs & Stratton

PTO Drive Group Parts Diagram

  • Title

1

Exmark 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 20+

0

2

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrew, item #2.

$2.99

$

In Stock, only 2 left!

0

3

Exmark 1-807525

BOLT,CARRSSN

$9.49

$

In Stock, only 3 left!

0

4

Exmark 5-1336

KEY-SQUARE

$11.99

$

In Stock, only 2 left!

0

5

Exmark 92-8799

BEARING-FLANGE

$151.99

$

In Stock, only 1 left!

0

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

7

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

8

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 20+

0

9

Exmark 103-3504

BEARING-SPHERICAL

$28.99

$

In Stock, Qty 20+

0

10

Exmark 103-3506

SEAL-LIP, SINGLE

$6.49

$

In Stock, Qty 20+

0

11

Exmark 32151-13

RING-RETAINING

$5.99

$

In Stock, only 1 left!

0

12

Exmark 103-6409

KIT,'04 XP PUMP IDLER

$210.99

$

In Stock, only 1 left!

0

13

Exmark 103-6779-03

SHAFT, LINE

$

$

Not available

14

Exmark 103-6813

DISCONTINUED

$

$

Not available

15

Exmark 103-6814

SHEAVE, 2-A

$293.99

$

Usually ships in 3-6 days

0

16

Exmark 103-6836

SPACER, IDLER BEARING

$

$

Not available

17

Exmark 103-8012

SPACER, SPRING .75

$19.99

$

Usually ships in 3-6 days

0

18

Exmark 103-8073

ASM, LINEDRIVE IDLER

$494.99

$

Usually ships in 3-6 days

0

19

Exmark 103-8366-03

GUARD, LINEDRIVE

$

$

Not available

20

Exmark 109-7588

BELTS,MATCHED A-COG 39.36
(Superseded to 109-7588-SL)

$84.99

$

In Stock, only 1 left!

0

21

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

22

Exmark 109-0431-03

109-8838-03
(Superseded to 109-8838-03)

$49.99

$

Usually ships in 3-6 days

0

23

Exmark 251-347

BEARING-BALL

$11.99

$

In Stock, only 1 left!

0

24

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

25

Exmark 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

27

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

29

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

32

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

34

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0
