GZ 7000 - RedMax Chainsaw (2008-12) CYLINDER Parts Diagram

Chainsaw

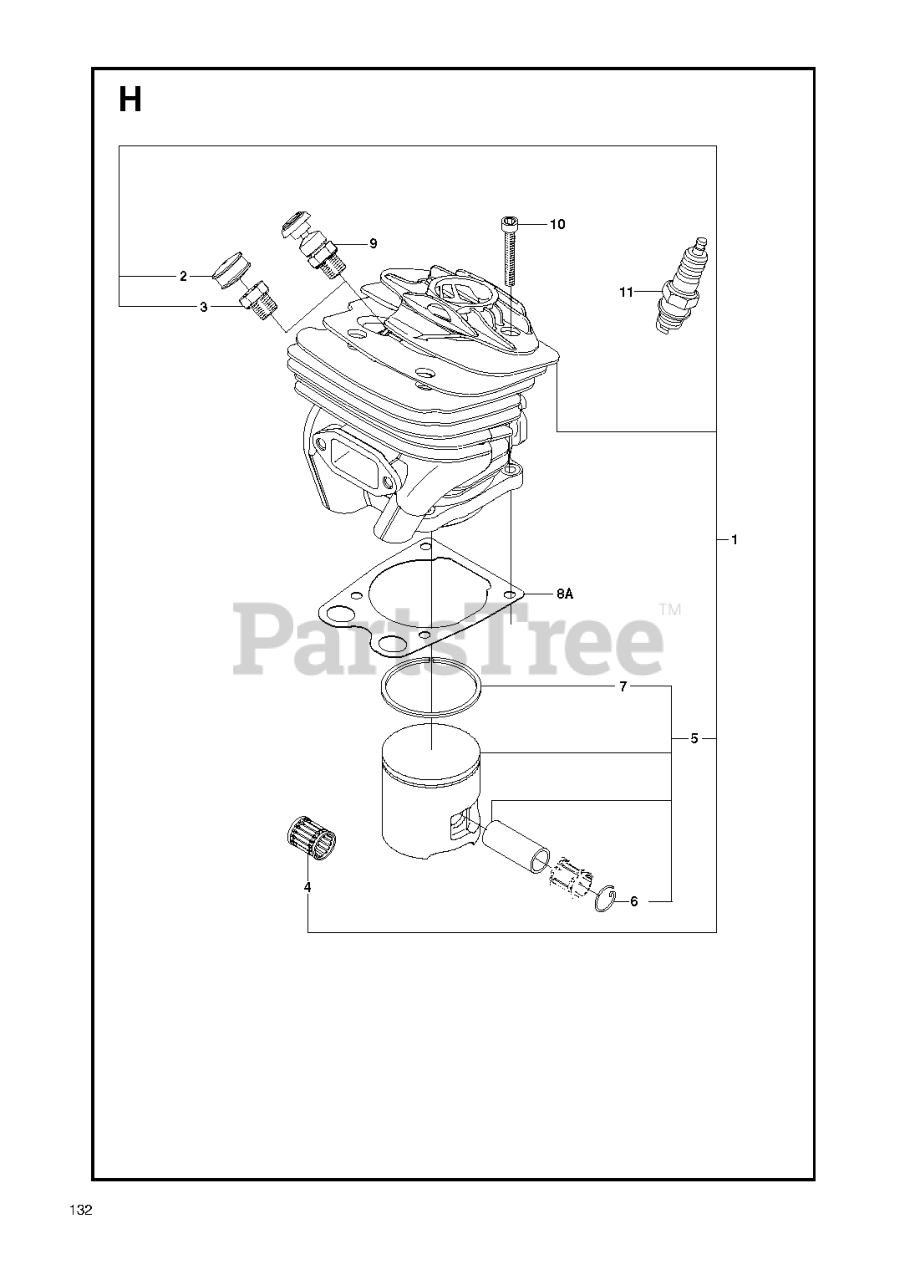

CYLINDER Parts Diagram

  • Title

1

RedMax 537254502

%CYLINDER
(Superseded to 525839402)

Note: . 2 3 4 5 6 7

$341.99

$

Usually ships in 3-10 days

0

2

RedMax 537207101

PLUG

$10.99

$

Usually ships in 3-10 days

0

3

RedMax 503552201

CYLINDER PLUG

$12.99

$

In Stock, only 3 left!

0

4

RedMax 503255601

SUPPORT BUSHING
(Superseded to 577572401)

$17.99

$

In Stock, only 2 left!

0

5

RedMax 537254702

PISTON 49 MM

Note: . 6 7

$143.99

$

Usually ships in 3-10 days

0

6

RedMax 737431200

WRIST PIN CLIP

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 503289046

PISTON RING
(Superseded to 537401501)

$17.99

$

In Stock, only 2 left!

0

8

RedMax 537212601

GASKET SET

Note: . 8

$23.99

$

Usually ships in 3-10 days

0

8

RedMax 537208001

GASKET

$6.99

$

In Stock, only 1 left!

0

9

RedMax 537294401

VALVE
(Superseded to 584288701)

$45.99

$

Usually ships in 3-10 days

0

10

RedMax 725533355

SCREW MC6S 5X25

$3.49

$

In Stock, Qty 6

0

11

RedMax 503235111

BPMR7A NGK SPARK PLUG
(Superseded to 952030150)

Note: BPMR7A

$3.99

$

In Stock, Qty 20+

0
