GZ 7100 - RedMax Chainsaw (2017-10) FUEL TANK Parts Diagram

Chainsaw

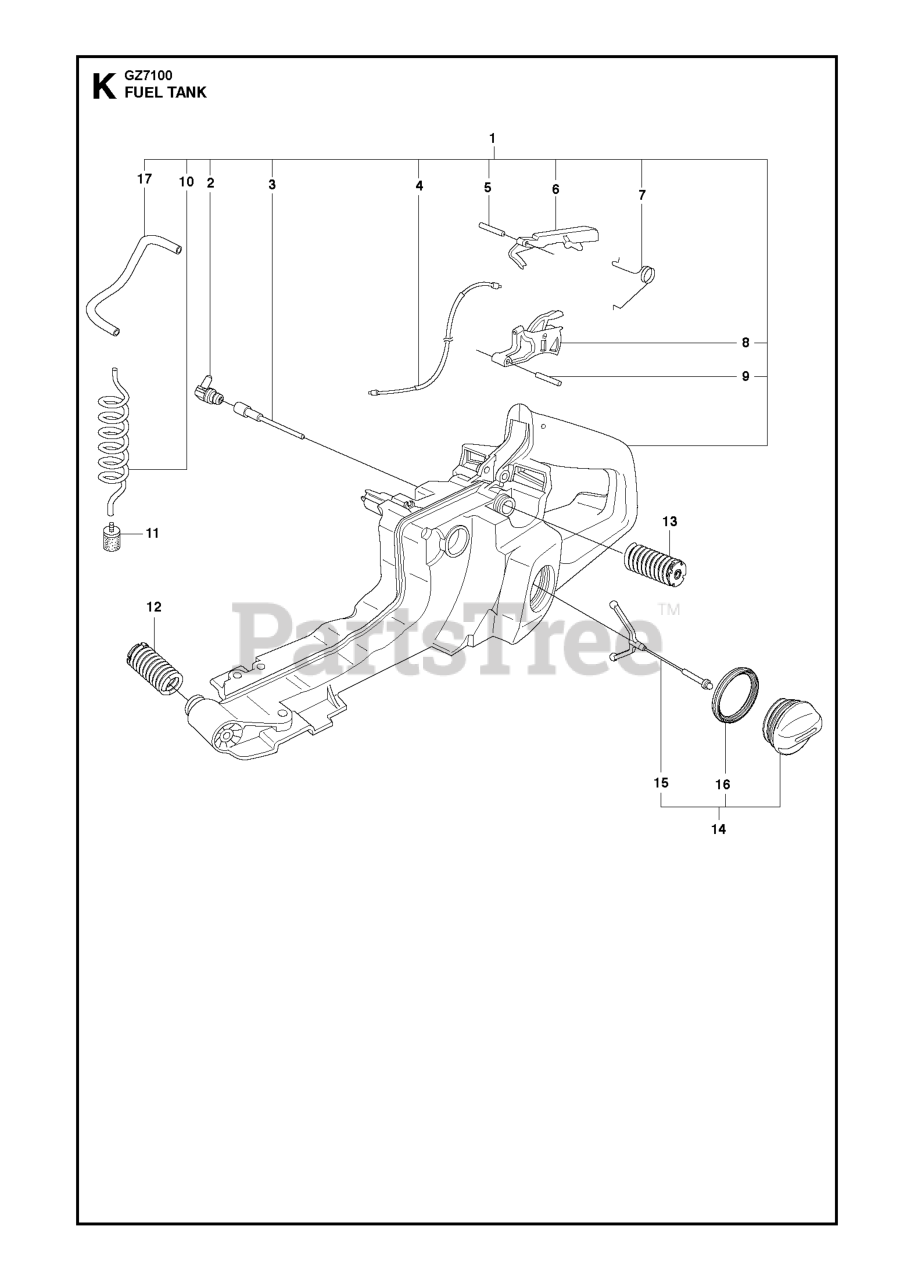

FUEL TANK Parts Diagram

  • Title

1

RedMax 503719105

FUEL TANK

$191.99

$

In Stock, only 1 left!

0

2

RedMax 537099301

CONNECTOR

Note: . 1

$8.49

$

In Stock, Qty 14

0

3

RedMax 537092201

TANK VALVE

Note: . 1

$21.99

$

In Stock, only 3 left!

0

4

RedMax 503717601

WIRE

Note: . 1

$21.99

$

In Stock, only 2 left!

0

5

RedMax 720124020

PIN 3X25
(Superseded to 720182520)

Note: . 1

$3.99

$

In Stock, Qty 20+

0

6

RedMax 503556602

THROTTLE LOCK

Note: . 1

$7.49

$

In Stock, Qty 7

0

7

RedMax 503736401

SPRING

Note: . 1

$8.49

$

In Stock, Qty 5

0

8

RedMax 503829802

THROTTLE TRIGGER

Note: . 1

$13.99

$

In Stock, only 2 left!

0

9

RedMax 720127220

PIN CPH8 4X20

$4.99

$

In Stock, only 2 left!

0

10

RedMax 581756202

FUEL HOSE SPIRAL 300
(Superseded to 591375201)

Note: . 1

$7.49

$

In Stock, Qty 20+

0

11

RedMax 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

12

RedMax 503637601

ANTIVIBE MOUNT
(Superseded to 503637603)

Note: Std

$23.99

$

In Stock, only 1 left!

0

12

RedMax 503637602

AV SPRING (HARD)
(Superseded to 503637604)

Note: Hard

$21.99

$

In Stock, Qty 6

0

13

RedMax 503895601

ANTIVIBE MOUNT

Note: Std

$23.99

$

In Stock, only 2 left!

0

13

RedMax 503895602

ANTIVIBE MOUNT

Note: Hard

$23.99

$

Usually ships in 3-10 days

0

14

RedMax 537215206

TANK CAP

$10.99

$

In Stock, Qty 9

0

15

RedMax 503578901

TANK LOCK

Note: . 14

$7.49

$

In Stock, Qty 5

0

16

RedMax 589241101

SEALING

Note: . 14

$7.49

$

In Stock, only 2 left!

0

17

RedMax 581756106

FUEL HOSE STRAIGHT 105

Note: . 1

$7.49

$

In Stock, only 4 left!
