H 1952 (55AI4HPD050) - Cub Cadet Walk-Behind Mower Kawasaki FH580V-CS25 Control Equipment Parts Diagram

Walk-Behind Mower

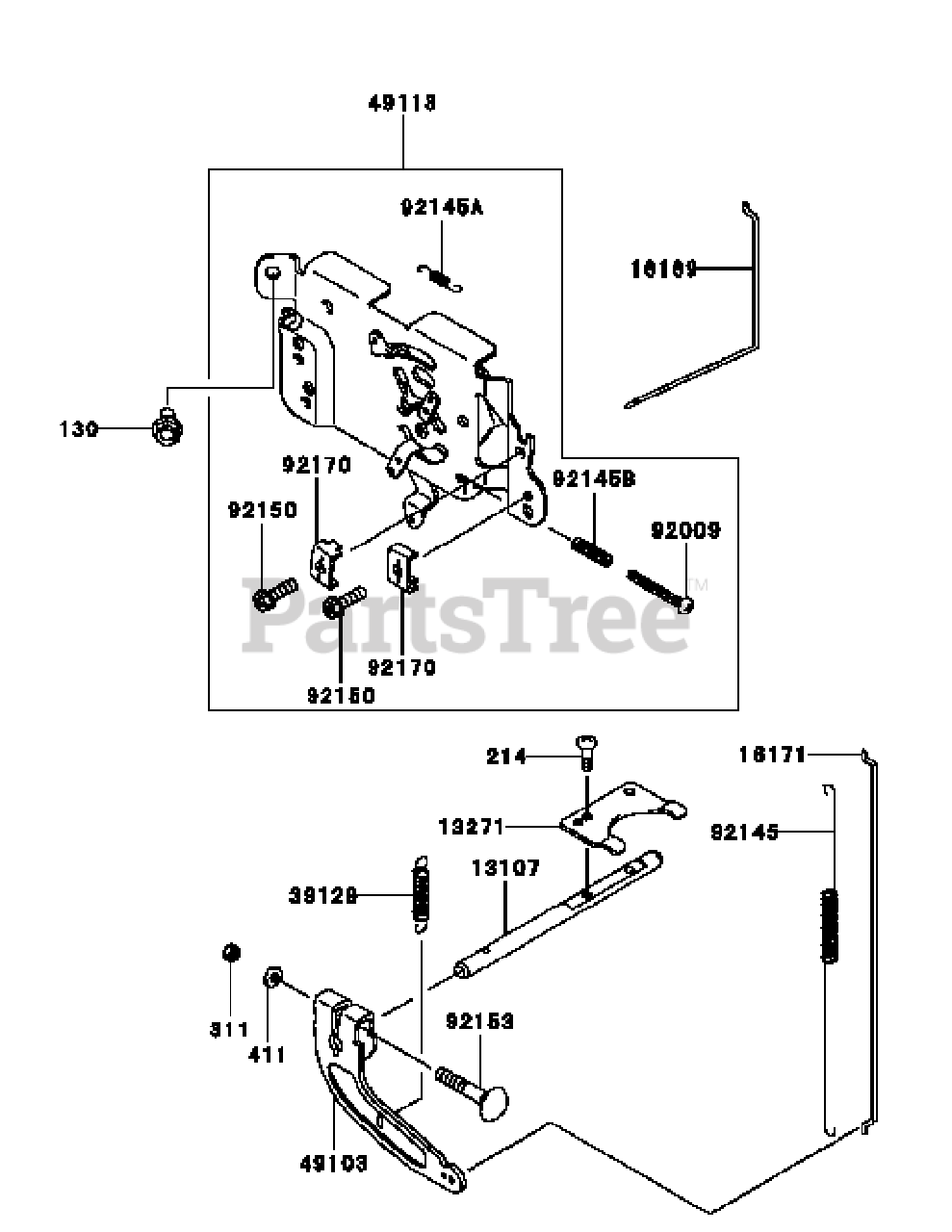

Kawasaki FH580V-CS25 Control Equipment Parts Diagram

  • Title

130

Cub Cadet KM-130B0612

BOLT-FLANGED,6X12
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

13107

Cub Cadet KM-13107-7010

SHAFT

$14.99

$

In Stock, only 2 left!

0

13271

Cub Cadet KM-13271-7032

PLATE

$3.99

$

In Stock, Qty 6

0

16169

Cub Cadet KM-16169-7010

LINK-CHOKE

$2.49

$

In Stock, Qty 9

0

16171

Cub Cadet KM-16171-7001

LINK

$4.49

$

In Stock, Qty 15

0

214

Cub Cadet KM-214B0408

SCREW-PAN,4X8
(Superseded to KM-214AA0408)

$4.99

$

In Stock, Qty 7

0

311

Cub Cadet KM-311B0600

NUT-HEX,6MM
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 15

0

39129

Cub Cadet KM-39129-7003

SPRING-GOVERNOR

$4.99

$

In Stock, Qty 15

0

411

Cub Cadet KM-411B0600

WASHER-PLAIN,6MM
(Superseded to KM-411AA0600)

$4.49

$

In Stock, Qty 9

0

49103

Cub Cadet KM-49103-7004

ARM-GOVERNOR

$7.99

$

In Stock, Qty 10

0

49113

Cub Cadet KM-49113-7011

PANEL-COMP-CONTROL
(Superseded to KM-49113-7052)

$32.99

$

In Stock, only 1 left!

0

92009

Cub Cadet KM-92009-7007

SCREW,4X35

$1.49

$

In Stock, Qty 7

0

92145

Cub Cadet KM-92145-7003

SPRING

$2.99

$

In Stock, Qty 20+

0

92145A

Cub Cadet KM-92145-7004

SPRING
(Superseded to KM-92145-2180)

$1.49

$

In Stock, Qty 20+

0

92145B

Cub Cadet KM-92145-7005

SPRING

$0.99

$

In Stock, Qty 5

0

92150

Cub Cadet KM-92150-2182

BOLT,5X18

$0.99

$

In Stock, Qty 19

0

92153

Cub Cadet KM-92153-7033

BOLT,6X35
(Superseded to KM-92154-2697)

$1.49

$

In Stock, only 2 left!

0

92170

Cub Cadet KM-92170-7001

CLAMP

$2.99

$

In Stock, Qty 20+

0
