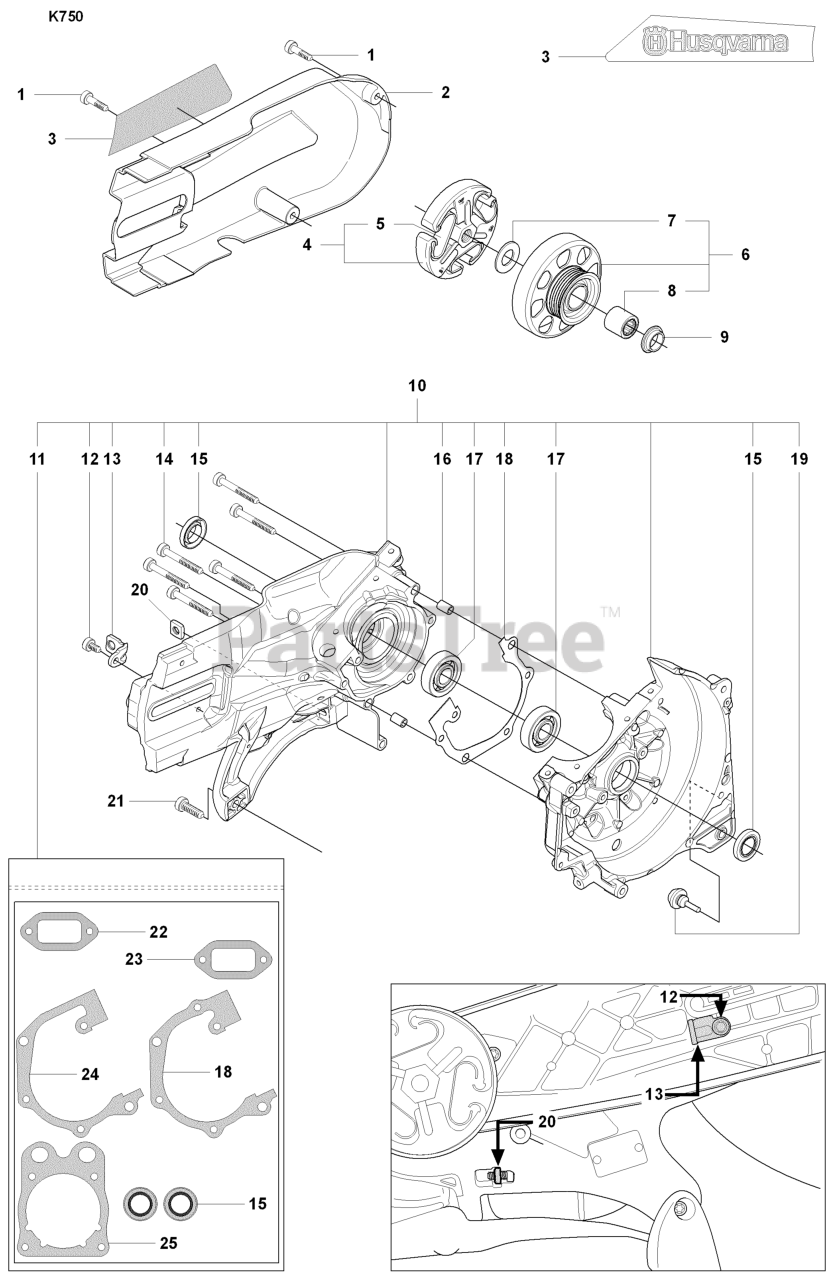

K 750 - Husqvarna Cut-Off Saw (2007-01) Belt Guard and Clutch Assy and Crankcase Assy and Gasket Kit Parts Diagram

Cut-Off Saw

Belt Guard and Clutch Assy and Crankcase Assy and Gasket Kit Parts Diagram

  • Title

1

Husqvarna 503215321

SCREW

$3.99

$

In Stock, Qty 14

0

2

Husqvarna 506369103

%BELT GUARD
(Superseded to 581485901)

$52.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544891101

LABEL

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503744404

%CLUTCH
(Superseded to 503744406)

Note: Incl. 5

$155.99

$

In Stock, Qty 6

0

5

Husqvarna 503744301

CLUTCH SPRING

$9.49

$

In Stock, Qty 19

0

6

Husqvarna 506378303

WHEEL

Note: Incl. 7, 8

$92.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503230073

WASHER

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 505302415

SUPPORT BUSHING

$40.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506393001

WASHER

$24.99

$

In Stock, only 3 left!

0

10

Husqvarna 544889002

CRANKCASE ASSY
(Superseded to 544889006)

Note: Incl. 11, 12, 13, 14, 15, 16, 17, 18, 19

$

$

Not available

11

Husqvarna 506385304

GASKET KIT
(Superseded to 581357402)

$39.99

$

In Stock, only 2 left!

0

12

Husqvarna 503200312

SCREW

$5.99

$

In Stock, only 2 left!

0

13

Husqvarna 544007801

BRACKET

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503215341

SCREW

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 503260204

SEALING RING

$17.99

$

In Stock, Qty 11

0

16

Husqvarna 501270801

SLEEVE
(Superseded to 593806001)

$9.49

$

In Stock, only 3 left!

0

17

Husqvarna 738220225

BALL BEARING-6202-C3 SKF

$29.99

$

In Stock, only 4 left!

0

18

Husqvarna 506377003

GASKET

Note: 6 bolts crakcase

$9.99

$

In Stock, Qty 5

0

19

Husqvarna 503846101

BUFFER

$9.49

$

In Stock, Qty 5

0

20

Husqvarna 503226504

NUT

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 544061201

SCREW

$3.99

$

In Stock, only 3 left!

0

22

Husqvarna 506412301

GASKET

$11.99

$

In Stock, Qty 5

0

23

Husqvarna 506376902

GASKET
(Superseded to 588932501)

$11.99

$

In Stock, Qty 5

0

24

Husqvarna 506377002

GASKET

Note: 5 bolts crakcase

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506376702

CYLINDER BASE GASKET

$16.99

$

Usually ships in 3-10 days

0
