K 760 Cut-n-Break - Husqvarna Cut-Off Saw (2009-11) Clutch and Belt Guard and Crankcase Assy and Gasket Kit Parts Diagram

Cut-Off Saw

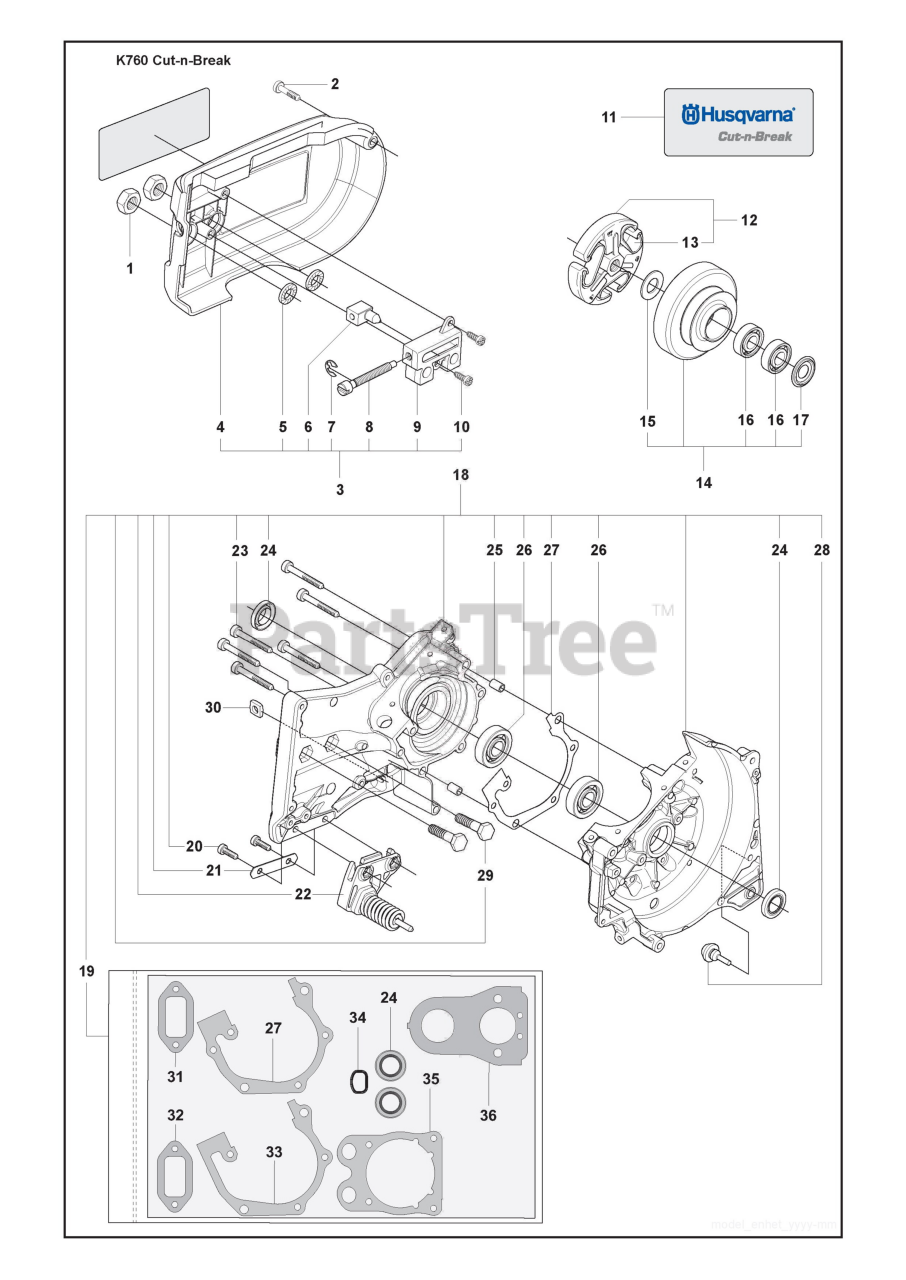

Clutch and Belt Guard and Crankcase Assy and Gasket Kit Parts Diagram

  • Title

1

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

2

Husqvarna 503203419

SCREW.CCRPANMO.M5X19 10.9 TBO

$26.99

$

In Stock, Qty 20+

0

3

Husqvarna 575338101

BELT TENSIONER ASSY
(Superseded to 575338103)

Note: Incl. 4 - 10

$79.99

$

In Stock, only 3 left!

0

4

Husqvarna 525623901

CLUTCH COVER K750 CNB

$44.99

$

In Stock, only 3 left!

0

5

Husqvarna 503230401

WASHER LOCK 8.7X16.6X2.5 ZN FL

$7.49

$

In Stock, only 1 left!

0

6

Husqvarna 574240901

PAWL SPäNNTäRNING K750 CUT-N

$31.99

$

Usually ships in 3-10 days

0

7

Husqvarna 735310820

E-RING 4

$3.99

$

In Stock, Qty 5

0

8

Husqvarna 506402601

Screw
(Superseded to 575 73 21-01)

$31.99

$

In Stock, only 2 left!

0

9

Husqvarna 506403301

Belt Tensioner

$27.99

$

In Stock, only 2 left!

0

10

Husqvarna 504909410

SCREW

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 574489601

DECAL CLUTCH COVER K760 CNB

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503744406

CLUTCH ASSY

Note: Incl. 13

$155.99

$

In Stock, Qty 6

0

13

Husqvarna 503744301

CLUTCH SPRING

$9.49

$

In Stock, Qty 19

0

14

Husqvarna 502289203

DRIVING PULLY ASSY

Note: Incl. 15 - 17

$124.99

$

In Stock, Qty 7

0

15

Husqvarna 503230070

WASHER
(Superseded to 503230073)

$9.49

$

In Stock, only 2 left!

0

16

Husqvarna 525831801

HOLDER BALL BEARING

$26.99

$

Usually ships in 3-10 days

0

17

Husqvarna 506316901

DUST COVER

$9.99

$

In Stock, Qty 8

0

18

Husqvarna 574474802

CRANKCASE ASSY
(Superseded to 585061408)

Note: Incl. 19 - 29

$628.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506385305

GASKET KIT
(Superseded to 581357402)

Note: Incl. 24, 27, 30 - 35

$39.99

$

In Stock, only 2 left!

0

20

Husqvarna 503215316

SCREW

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 522474801

WASHER

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 522475701

SPRING RETAINER
(Superseded to 598586901)

$35.99

$

In Stock, Qty 5

0

23

Husqvarna 503215341

SCREW

$3.99

$

In Stock, only 2 left!

0

24

Husqvarna 503260204

SEALING RING

$17.99

$

In Stock, Qty 11

0

25

Husqvarna 501270801

SLEEVE
(Superseded to 593806001)

$9.49

$

In Stock, only 3 left!

0

26

Husqvarna 738220225

BALL BEARING-6202-C3 SKF

$29.99

$

In Stock, only 4 left!

0

27

Husqvarna 506377002

GASKET

$9.99

$

Usually ships in 3-10 days

0

28

Husqvarna 503846101

BUFFER

$9.49

$

In Stock, Qty 5

0

29

Husqvarna 505220937

BAR BOLT

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 503226504

NUT

$5.99

$

In Stock, Qty 20+

0

31

Husqvarna 506412301

GASKET

$11.99

$

In Stock, Qty 5

0

32

Husqvarna 506376902

GASKET
(Superseded to 588932501)

$11.99

$

In Stock, Qty 5

0

33

Husqvarna 506377003

GASKET

$9.99

$

In Stock, Qty 5

0

34

Husqvarna 544219302

INSERT

$5.99

$

In Stock, Qty 5

0

35

Husqvarna 506376701

GASKET

$7.49

$

In Stock, only 2 left!

0

36

Husqvarna 506376803

RP GASKET CARBURETOR
(Superseded to 506376804)

$7.49

$

In Stock, Qty 14

0
