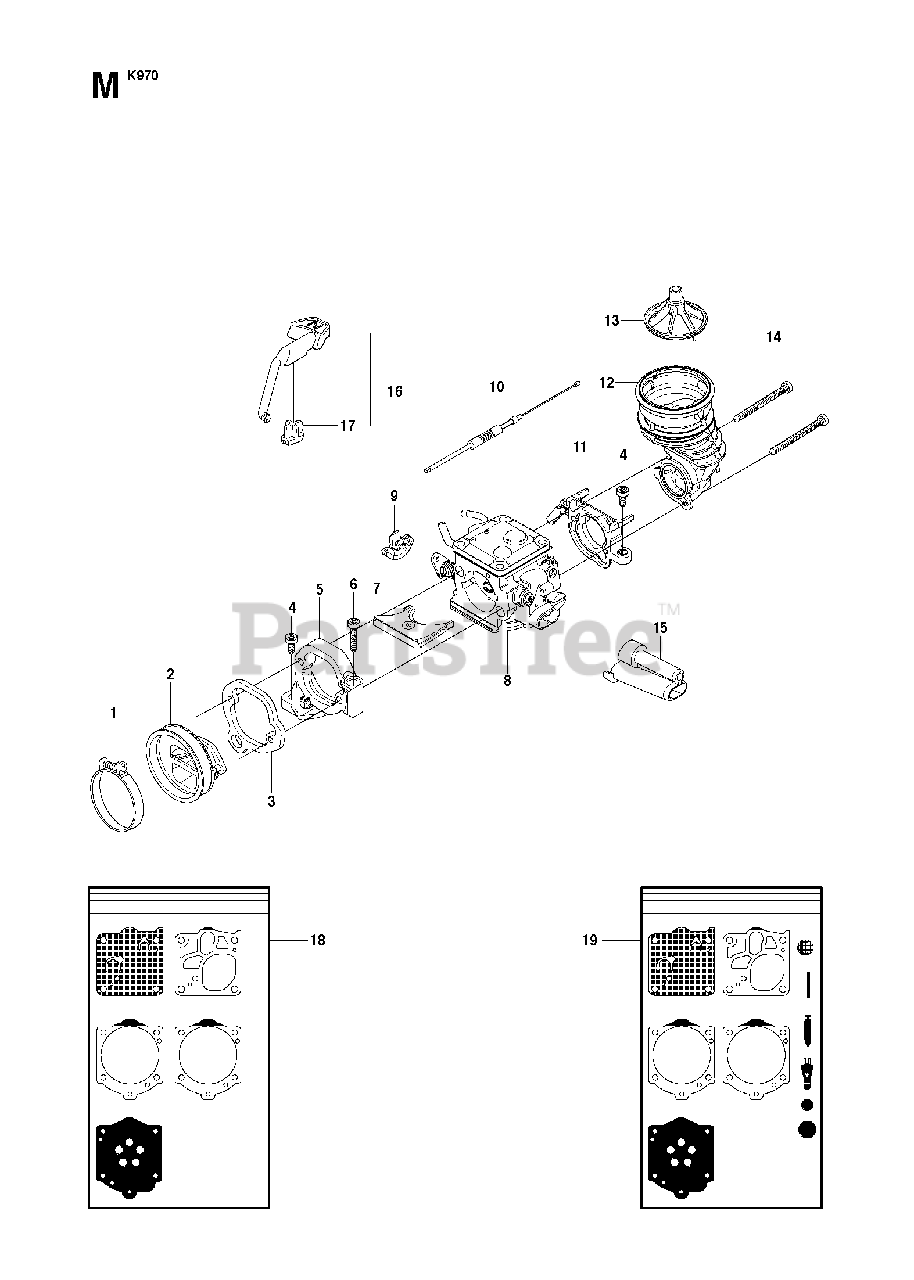

K 970 Rescue - Husqvarna Rescue Saw (SN: 575697201 & Above) (2010-05) CARBURETOR Parts Diagram

Rescue Saw

CARBURETOR Parts Diagram

  • Title

1

Husqvarna 505 28 33-06

HOSE CLAMP
(Superseded to 505283310)

$3.99

$

In Stock, only 1 left!

0

2

Husqvarna 506 41 41-01

INLET PIPE

$95.99

$

In Stock, only 4 left!

0

3

Husqvarna 544 15 01-01

FLANGE

$27.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503 21 53-16

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 544 11 39-01

CONSOLE

$29.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503 21 53-30

SCREW ITXSCM

$12.99

$

In Stock, Qty 12

0

7

Husqvarna 506 41 42-01

PLATE

$39.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522 94 20-01

CARBURETTOR
(Superseded to 584913001)

$335.99

$

In Stock, Qty 19

0

9

Husqvarna 505 14 84-01

LEVER

$7.49

$

In Stock, only 2 left!

0

10

Husqvarna 576 49 04-01

THROTTLE CABLE ASSY

$71.99

$

In Stock, only 2 left!

0

11

Husqvarna 522 85 62-01

FLANGE INLET PIPE

$

$

Not available

12

Husqvarna 521 92 67-01

INLET PIPE

$49.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510 24 39-01

FILTER

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 501 97 18-01

SCREW ITXSCM
(Superseded to 501971802)

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 544 23 26-01

CHISEL GUIDE
(Superseded to 586062101)

$12.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506 23 20-11

CHOKE

$27.99

$

In Stock, Qty 11

0

17

Husqvarna 506 27 25-01

WEAR PROTECTION

$9.99

$

In Stock, only 1 left!

0

18

Husqvarna 502 44 58-01

GASKET KIT

$45.99

$

In Stock, only 1 left!

0

19

Husqvarna 502 44 59-01

REPAIR KIT
(Superseded to 502445903)

$65.99

$

In Stock, only 2 left!

0
