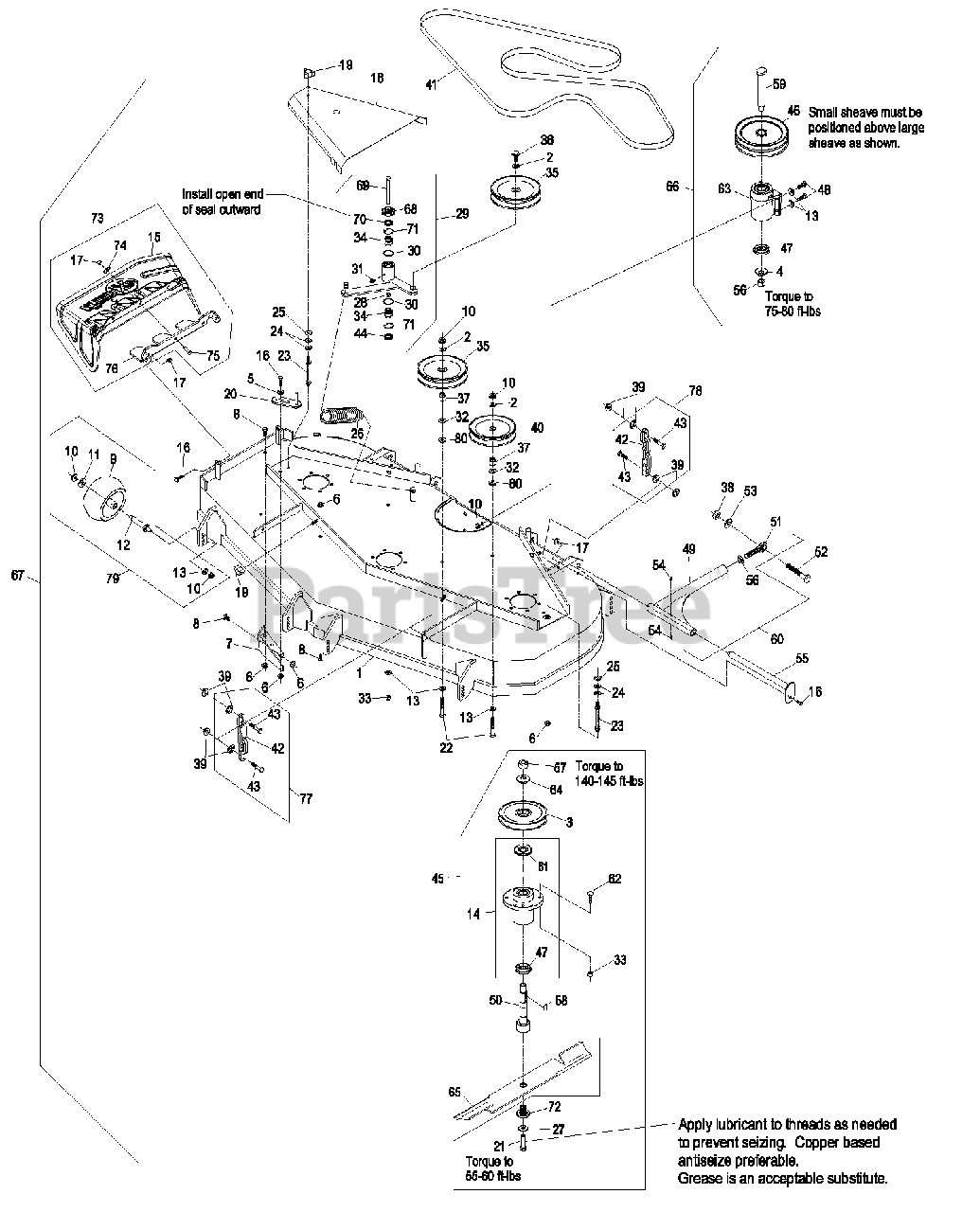

Exmark LAS28KA524 - Exmark 52" Lazer Z AS Zero-Turn Mower, 28hp Kawasaki (SN: 670000 - 719999) (2007) 52" Deck Group Parts Lookup with Diagrams

1

Exmark 103-3183

ASM,DECK W/DECALS LZ524

$

Not available 

2

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$91.99

$

In Stock, Qty 8

4

Exmark 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

5

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

7

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$56.99

$

Usually ships in 3-6 days

8

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

9

Exmark 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

11

Exmark 63-8410

WASHER

$2.49

$

In Stock, only 2 left!

12

Exmark 99-2842

126-2928

(Superseded to 126-2928) 

$42.99

$

In Stock, Qty 20+

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

14

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$298.99

$

In Stock, Qty 17

15

Exmark 109-2738

CHUTE,DISCHARGE

$90.99

$

In Stock, Qty 8

16

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

17

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

18

Exmark 1-633357-01

SHIELD,BELT 52

$

Not available 

19

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

20

Exmark 1-322110

GUIDE-BELT

$13.99

$

In Stock, Qty 7

21

Exmark 3213-5

SCREW-HH

$4.49

$

In Stock, Qty 16

22

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

23

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 9

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

25

Exmark 1-323417

WASHER

$3.99

$

In Stock, Qty 20+

26

Exmark 103-3330

116-6317

(Superseded to 116-6317) 

$31.99

$

In Stock, Qty 20+

27

Exmark 1-513435

WASHER-SPRING

$6.49

$

In Stock, Qty 20+

28

Exmark 103-5677

SPACER

$2.99

$

In Stock, Qty 9

29

Exmark 103-5693

KIT,DECK IDLER LZ/XP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$182.99

$

In Stock, Qty 7

30

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

31

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

32

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

33

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

34

Exmark 103-3504

BEARING-SPHERICAL

$28.99

$

In Stock, Qty 20+

35

Exmark 1-633109

126-7685

(Superseded to 126-7685) 

$68.99

$

In Stock, Qty 16

36

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

37

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

38

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

39

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

40

Exmark 1-603805

PULLEY-IDLER

$67.99

$

In Stock, only 4 left!

41

Exmark 1-633366

BELT,BLADE DRIVE 52

(Superseded to 1-633366-SL) 

$139.99

$

In Stock, Qty 6

42

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, only 1 left!

43

Exmark 103-1898

SCREW-HH

$2.49

$

In Stock, Qty 19

44

Exmark 103-3505

SEAL-LIP, DOUBLE

$6.49

$

In Stock, Qty 20+

45

Exmark 103-9076

ASM, CUTTER HSG COMPLETE

$555.99

$

In Stock, only 2 left!

46

Exmark 103-3182

SHEAVE,JACKSHAFT - DBL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$205.99

$

Usually ships in 3-6 days

47

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 2 left!

48

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

49

Exmark 109-1181

STRUT-DECK

$128.99

$

In Stock, Qty 20+

50

Exmark 103-9086

KIT, SPLINED SPINDLE 103-

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$252.99

$

Usually ships in 3-6 days

51

Exmark 1-633029

BALLJOINT-SPHERICAL

$71.99

$

In Stock, Qty 11

52

Exmark 327-11

SCREW-HH

$13.99

$

In Stock, only 4 left!

53

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

54

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

55

Exmark 1-632199-01

PIN-STRUT

$38.99

$

In Stock, Qty 10

56

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

57

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #57.

$13.99

$

In Stock, Qty 8

58

Exmark 103-2982

KEY

$3.49

$

In Stock, only 2 left!

59

Exmark 1-643393

JACKSHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$36.99

$

In Stock, Qty 20+

60

Exmark 103-1081

STRUT ASM

$300.99

$

In Stock, only 1 left!

61

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$5.99

$

In Stock, Qty 20+

62

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

63

Exmark 103-9746

KIT, JACKSHAFT ASSY

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$287.99

$

In Stock, only 3 left!
