LCT23BV603 - Exmark 60" Lazer Z CT Zero-Turn Mower, 23hp Briggs & Stratton (SN: 600000 - 669999) (2006) Front Frame Group Parts Diagram

60" Lazer Z CT Zero-Turn Mower, 23hp Briggs & Stratton

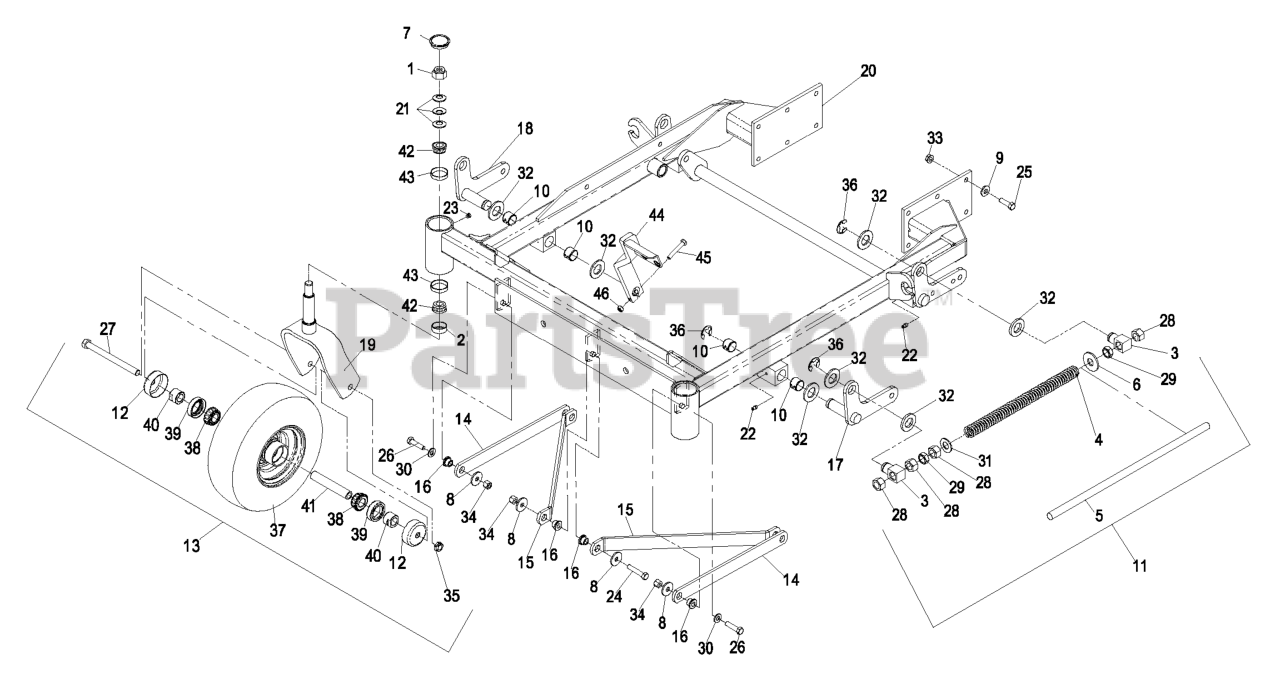

Front Frame Group Parts Diagram

  • Title

1

Exmark 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

2

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

3

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

$29.99

$

Usually ships in 3-6 days

0

4

Exmark 1-653009

SPRING-COMPRESSION

$19.99

$

Usually ships in 3-6 days

0

5

Exmark 1-653011

ROD-LIFT, DECK

$

$

Not available

6

Exmark 1-805517

WASHER

$

$

Not available

7

Exmark 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0

8

Exmark 63-8410

WASHER

$2.49

$

In Stock, only 1 left!

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

10

Exmark 103-1982

BUSHING,SPRING

$

$

Not available

11

Exmark 103-1987

FRONT SPRING ASM

$88.99

$

Usually ships in 3-6 days

0

12

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

13

Exmark 103-3800

WHEEL AND TIRE ASM

$254.99

$

In Stock, only 2 left!

0

14

Exmark 103-3898

FLAT,STRUT

$28.99

$

Usually ships in 3-6 days

0

15

Exmark 103-3899

FLAT,STRUT ANGLED

$32.99

$

Usually ships in 3-6 days

0

16

Exmark 103-3900

SPACER-STRUT

$9.49

$

In Stock, Qty 9

0

17

Exmark 103-3902-01

WLD,SHAFT LH

$

$

Not available

18

Exmark 103-3903-01

WLD,SHAFT RH

$

$

Not available

Exmark 103-4193-01

Wld, Shaft Rh (60")

$

$

Currently unavailable

19

Exmark 103-8618-01

FORK-CASTER

$158.99

$

In Stock, Qty 12

0

20

Exmark 109-1881-01

109-5178-01
(Superseded to 109-5178-01)

Note: Includes frame weldment, plus items #10, #17, #18, #22, #32(2) & #36(2). Does not include plug item #23.

$

$

Not available

Exmark 109-1882-01

Asm, Front Frame (52")

Note: Includes frame weldment, plus items #10, #17, #18, #22, #32(2) & #36(2). Does not include plug item #23.

$

$

Currently unavailable

Exmark 103-8685-01

109-5180-01
(Superseded to 109-5180-01)

Note: Includes frame weldment, plus items #10, #17, #18, #22, #32(3), #36(1), #44, #45 & #46. Does not include plug item #23

$

$

Not available

21

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

22

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

23

Exmark 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

24

Exmark 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

26

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Exmark 325-20

SCREW-HH

$8.49

$

In Stock, Qty 10

0

28

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

29

Exmark 3218-6

NUT-JAM

$7.49

$

In Stock, Qty 9

0

30

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

32

Exmark 3256-29

WASHER-FLAT

$3.49

$

In Stock, Qty 6

0

Exmark 3256-29

WASHER-FLAT

$3.49

$

In Stock, Qty 6

0

33

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

34

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

35

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

36

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

37

Exmark 103-3151

103-3798
(Superseded to 103-3798)

$214.99

$

Usually ships in 3-6 days

0

38

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$25.99

$

In Stock, Qty 20+

0

39

Exmark 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

40

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut Item #40.

$9.49

$

In Stock, Qty 20+

0

41

Exmark 103-3157

126-5359
(Superseded to 126-5359)

$20.99

$

In Stock, only 2 left!

0

42

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

43

Exmark 1-543508

CUP-BEARING

$8.99

$

In Stock, Qty 20+

0

44

Exmark 103-1673-01

109-7616
(Superseded to 109-7616)

Note: Standard on 60" units. Optional on 48" & 52" units (Deck lift assist kit P/N 103-4192).

$240.99

$

Usually ships in 3-6 days

0

45

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

46

Exmark 1-803013

NUTTORQUE ZKPLT

$

$

Not available

Exmark 1-850337

PAINT,SPRAY RED

$37.99

$

In Stock, Qty 9

0

Exmark 103-9140

PAINT, TOUCH UP

$25.99

$

Usually ships in 3-6 days

0
