LCT23BV603 - Exmark 60" Lazer Z CT Zero-Turn Mower, 23hp Briggs & Stratton (SN: 720000 - 789999) (2008) Engine Group Parts Diagram

60" Lazer Z CT Zero-Turn Mower, 23hp Briggs & Stratton

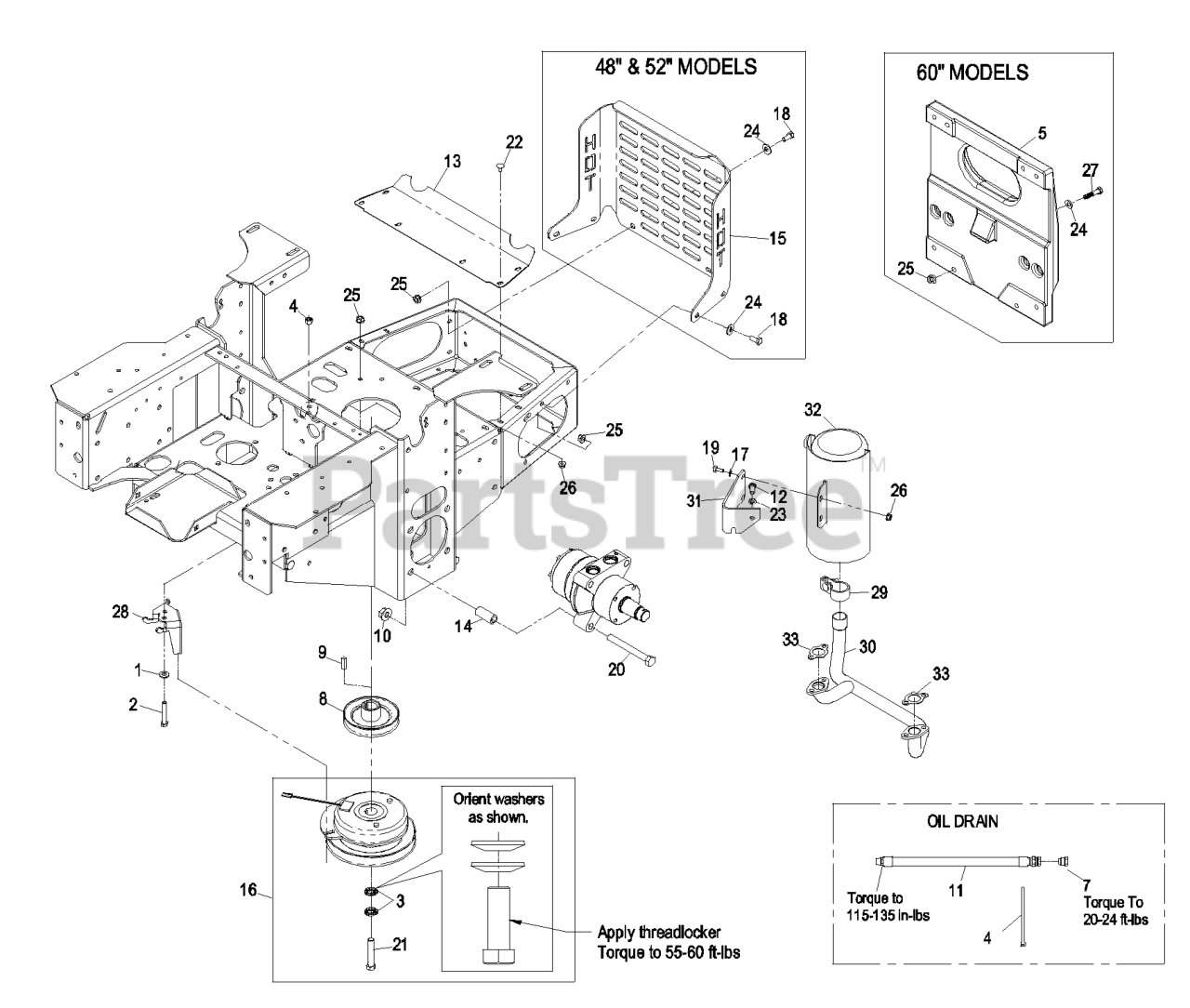

Engine Group Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

3

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

4

Exmark 1-809066

CABLE TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 107-8421-03

WEIGHT-NOTCHED, 60 LB

Note: (60")

$

$

Not available

6

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

7

Exmark 109-1012

PLUG

$9.49

$

Usually ships in 3-6 days

0

8

Exmark 103-3913

PULLEY

$98.99

$

In Stock, only 2 left!

0

9

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

10

Exmark 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

11

Exmark 109-2987

116-5327
(Superseded to 116-5327)

Note: Use a Teflon Pipe Sealant or equivalent on threads of drain hose.

$50.99

$

Usually ships in 3-6 days

0

12

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

13

Exmark 103-2740-03

DEFLECTOR-SHORT

$

$

Not available

14

Exmark 103-8503

SPACER-MOTOR, WHEEL

Note: (48" & 52")

$

$

Not available

Exmark 109-5012

SPACER-WHEEL, LONG

Note: (60")

$32.99

$

In Stock, only 1 left!

0

15

Exmark 103-4048-03

BUMPER-REAR

Note: (48" & 52")

$

$

Not available

16

Exmark 109-7035

KIT, CLUTCH LCT 48/52

Note: (18 & 21hp)

$550.99

$

In Stock, only 1 left!

0

Exmark 109-7036

KIT, CLUTCH LCT 60

Note: (23hp)

$623.99

$

Usually ships in 3-6 days

0

17

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

18

Exmark 322-3

SCREW-HH

Note: (48" & 52")

$0.99

$

In Stock, Qty 20+

0

19

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 325-18

SCREW-HH

Note: (48" & 52")

$3.99

$

In Stock, only 2 left!

0

Exmark 325-22

SCREW-HH

Note: (60")

$8.99

$

In Stock, Qty 15

0

21

Exmark 3212-12

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$3.49

$

In Stock, Qty 6

0

22

Exmark 3229-10

SCREW-CARR

$1.49

$

In Stock, Qty 7

0

23

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

24

Exmark 3256-23

WASHER-PLAIN

Note: (48" & 52")

$2.49

$

In Stock, Qty 20+

0

Exmark 3256-23

WASHER-PLAIN

Note: (60")

$2.49

$

In Stock, Qty 20+

0

25

Exmark 32128-20

NUT-HF

Note: (48" & 52")

$1.49

$

In Stock, Qty 20+

0

Exmark 32128-20

NUT-HF

Note: (60")

$1.49

$

In Stock, Qty 20+

0

26

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Exmark 322-7

SCREW-HH

Note: (48" & 52")

$1.49

$

In Stock, Qty 20+

0

Exmark 322-7

SCREW-HH

Note: (60")

$1.49

$

In Stock, Qty 20+

0

28

Exmark 109-7070-03

ANCHOR-CLUTCH

$56.99

$

Usually ships in 3-6 days

0

29

Exmark 103-8368

CLAMP-MUFFLER, 1.25 FLAT

$18.99

$

Usually ships in 3-6 days

0

30

Exmark 103-7993

DISCONTINUED

Note: (18hp)

$

$

Not available

Exmark 103-7992

MANIFOLD, EXAUST 21/23 BV

Note: (21hp & 23hp)

$

$

Not available

31

Exmark 103-8266-03

BRACKET,EXHAUST 21BV

$36.99

$

Usually ships in 3-6 days

0

32

Exmark 103-8106

MUFFLER

$159.99

$

Usually ships in 3-6 days

0

33

Exmark 103-8361

94-5844
(Superseded to 94-5844)

Note: (18hp)

$15.99

$

In Stock, only 2 left!

0

Exmark 103-8362

Gasket
(Superseded to 115-8154)

Note: (21hp & 23hp)

$10.99

$

Usually ships in 3-6 days

0
