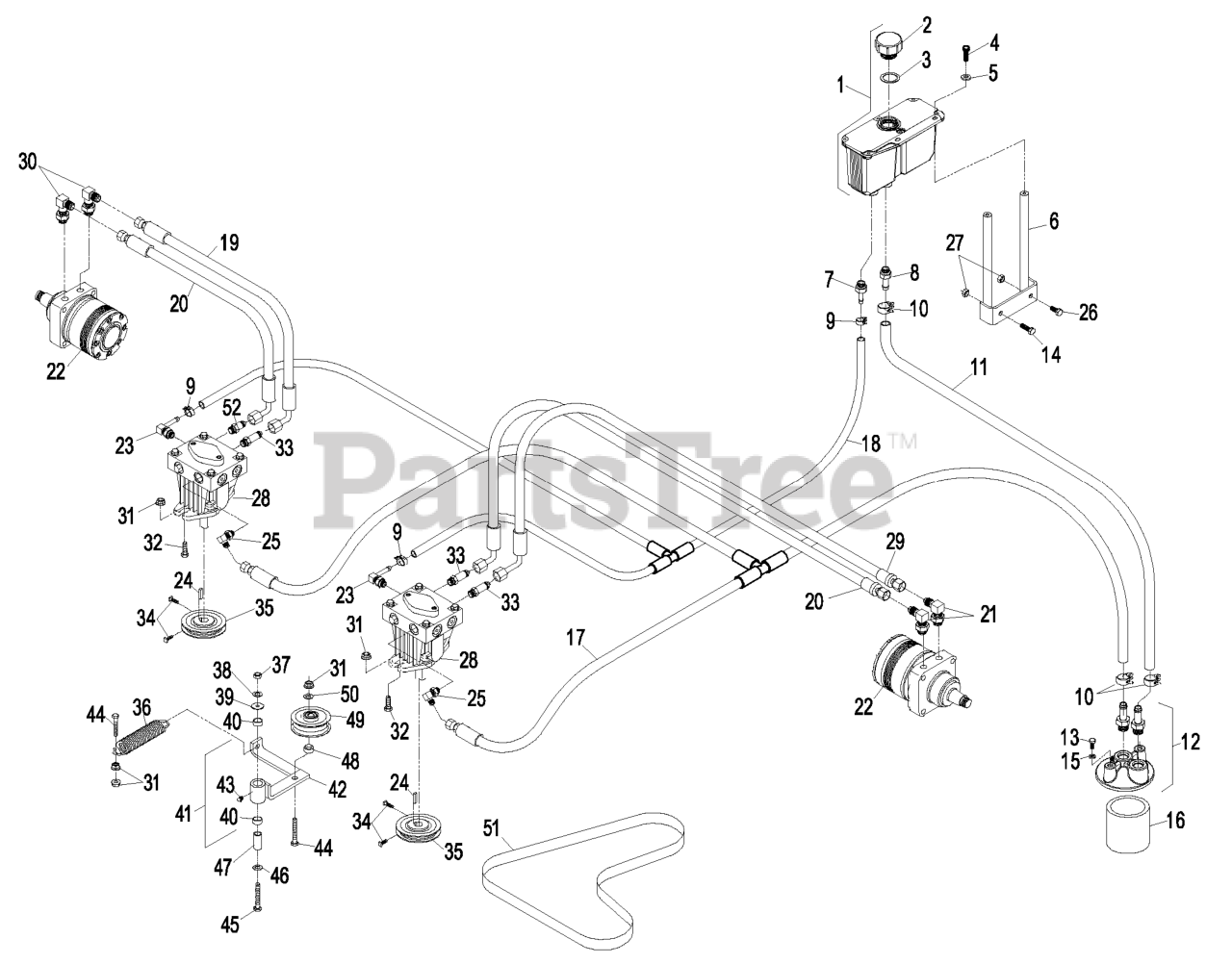

LCT4818KC - Exmark 48" Lazer Z CT Zero-Turn Mower, 18hp Kohler (SN: 370000 - 439999) (2003) Hydraulic Group Parts Diagram

48" Lazer Z CT Zero-Turn Mower, 18hp Kohler

Hydraulic Group Parts Diagram

  • Title

1

Exmark 103-1947

HYD RESERVOIR ASM

$286.99

$

Usually ships in 3-6 days

0

2

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$37.99

$

In Stock, Qty 20+

0

3

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

4

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

5

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 103-3071-03

STAND-RESERVOIR

$66.99

$

Usually ships in 3-6 days

0

7

Exmark 103-1801

ADAPTER-STRAIGHT

$35.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

8

Exmark 103-1912

ADAPTER-STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

9

Exmark 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

0

10

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Exmark 103-3077

HYD HOSE ASM

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 103-2889

FILTER HEAD ASM

$120.99

$

Usually ships in 3-6 days

0

Exmark 103-1912

ADAPTER-STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

13

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

16

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$53.99

$

In Stock, Qty 15

0

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: Use only for operation below 32°F (0°C)

$53.99

$

In Stock, only 4 left!

0

17

Exmark 103-2930

HYD HOSE ASM

$96.99

$

In Stock, only 2 left!

0

18

Exmark 103-2357

HYD HOSE ASM

$56.99

$

In Stock, only 2 left!

0

19

Exmark 103-4021

HOSE-REAR, RH

$96.99

$

Usually ships in 3-6 days

0

20

Exmark 1-653187

HOSE-REAR, RH

$92.99

$

In Stock, only 3 left!

0

21

Exmark 1-633605

FITTING-HYD, 90 DEG

$54.99

$

Usually ships in 3-6 days

0

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 13

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

22

Exmark 103-4008

103-4856
(Superseded to 103-4856)

$

$

Not available

Exmark 1-000138

BEARING AND SEAL KIT

$352.99

$

Usually ships in 3-6 days

0

Exmark 1-000119

SEAL KIT

$242.99

$

In Stock, only 1 left!

0

23

Exmark 103-1799

ELBOW-90 DEG

$34.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

24

Exmark 1-807272

KEY

$6.49

$

In Stock, Qty 20+

0

25

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$27.99

$

In Stock, only 2 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

26

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 103-4040

PUMP-HYD

$1320.99

$

Usually ships in 3-6 days

0

Exmark 103-2664

INPUT SHAFT KIT

$261.99

$

Usually ships in 3-6 days

0

Exmark 94-6922

BEARING-THRUST

$70.99

$

In Stock, only 2 left!

0

Exmark 103-2666

CYLINDER BLOCK KIT

$614.99

$

Usually ships in 3-6 days

0

Exmark 105-6184

SEAL OVERHAUL KIT

$101.99

$

In Stock, Qty 9

0

Exmark 103-4237

SHOCK VALVE KIT (2300 PSI

$

$

Not available

29

Exmark 103-4022

HOSE-REAR, LH

$100.99

$

Usually ships in 3-6 days

0

30

Exmark 1-633786

FITTING-90 DEG

$

$

Not available

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 13

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

31

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

32

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

33

Exmark 103-1940

ADAPTER-STR, LONG

$27.99

$

In Stock, only 3 left!

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

34

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews.

$2.99

$

In Stock, only 2 left!

0

35

Exmark 1-653156

PULLEY

$75.99

$

In Stock, only 2 left!

0

36

Exmark 103-1767

SPRING-EXTENSION

$19.99

$

Usually ships in 3-6 days

0

37

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

38

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

39

Exmark 63-8410

WASHER

$2.49

$

In Stock, only 2 left!

0

40

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

41

Exmark 1-654143

109-4311
(Superseded to 109-4311)

$223.99

$

In Stock, only 1 left!

0

42

Exmark 1-652142-03

109-4311
(Superseded to 109-4311)

$223.99

$

In Stock, only 1 left!

0

43

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

44

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Exmark 323-13

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

46

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

47

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

48

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

49

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$36.99

$

In Stock, Qty 20+

0

50

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Exmark 1-653163

103-4760
(Superseded to 103-4760-SL)

$50.99

$

In Stock, Qty 13

0

52

Exmark 103-4020

ADAPTER-STRAIGHT

$

$

Not available

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$37.99

$

In Stock, Qty 9
