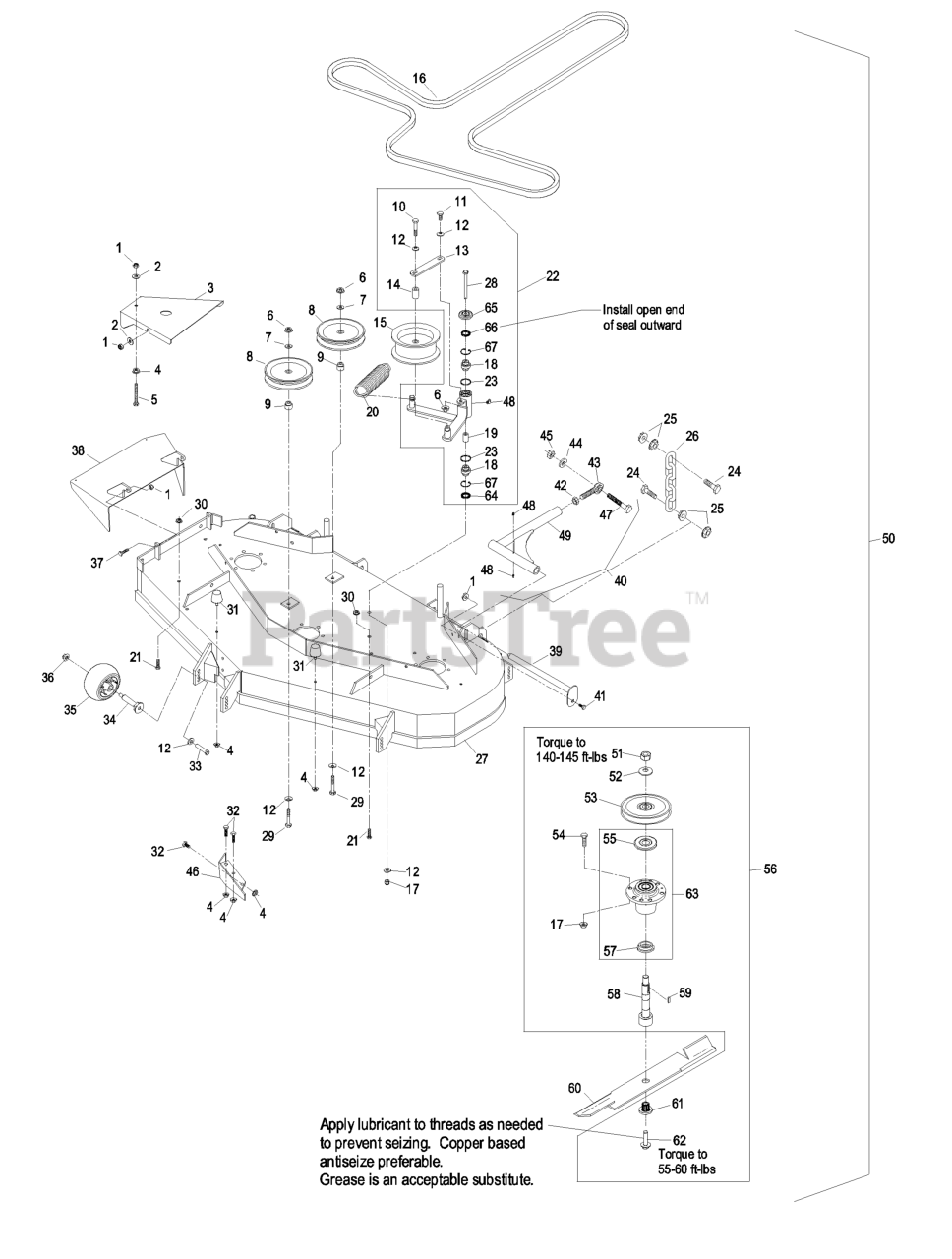

Exmark LHP23KC523 - Exmark 52" Lazer Z HP Zero-Turn Mower, 23hp Kohler (SN: 720000 - 789999) (2008) Deck Group Parts Lookup with Diagrams

1

Exmark 103-2970-01

SHIELD,BELT

$42.99

$

In Stock, only 1 left!

4

Exmark 1-800017

BOLT,TAP HH

$7.99

$

In Stock, only 1 left!

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

13

Exmark 103-5668

PLATE,GUIDE BELT (PLTD)

$10.99

$

In Stock, only 4 left!

14

Exmark 1-413099

116-4666

(Superseded to 116-4666) 

$75.99

$

In Stock, Qty 17

16

Exmark 1-653368

BELT,BLADE DRIVE

$167.99

$

In Stock, only 2 left!

17

Exmark 103-3504

BEARING-SPHERICAL

$28.99

$

In Stock, Qty 20+

19

Exmark 103-3330

116-6317

(Superseded to 116-6317) 

$31.99

$

In Stock, Qty 20+

21

Exmark 321-1

SCREW-HH

$2.49

$

Usually ships in 3-6 days

22

Exmark 103-5698

KIT,DECK IDLER LHP/LCT

Note: Idler arm assembly also includes items #12 & #17.

$258.99

$

In Stock, only 2 left!

23

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, only 1 left!

27

Exmark 1-654478

DISCONTINUED

Note: (1-652418-01)

$

Not available 

28

Exmark 1-543963

BUMPER-RUBBER

$27.99

$

Usually ships in 3-6 days

32

Exmark 103-5364

116-9981

(Superseded to 116-9981) 

$56.99

$

In Stock, Qty 20+

35

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-7263 includes antiscalp roller, axle, & mounting hardware.

$26.99

$

In Stock, Qty 20+

36

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

37

Exmark 1-652375-01

WLD,DISCHARGE CHUTE

$224.99

$

In Stock, only 1 left!

39

Exmark 103-1081

STRUT ASM

$300.99

$

In Stock, only 1 left!

41

Exmark 1-633029

BALLJOINT-SPHERICAL

$71.99

$

In Stock, Qty 11

44

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$56.99

$

Usually ships in 3-6 days

47

Exmark 1-654552

Deck Complete Service

Note: Includes all items shown plus decals.

$

Currently unavailable 

51

Exmark 1-653386

SHEAVE,6.13 EOD

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$123.99

$

In Stock, only 2 left!

54

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$5.99

$

In Stock, Qty 20+

56

Exmark 103-9077

ASM, CUTTER HSG 52

$646.99

$

Usually ships in 3-6 days

57

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 2 left!

58

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize. Kit includes items #51, #52, #59, #61, & #62.

$260.99

$

In Stock, only 2 left!

59

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 15

60

Exmark 103-6402

103-6402-S

(Superseded to 103-6402-S) 

$34.99

$

In Stock, Qty 20+

Exmark 103-6387

103-6387-S

(Superseded to 103-6387-S) 

$39.99

$

In Stock, only 4 left!

Exmark 103-6392

103-6392-S

(Superseded to 103-6392-S) 

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK523Q(52").

$34.99

$

In Stock, Qty 20+

Exmark 103-6382

103-6382-S

(Superseded to 103-6382-S) 

$39.99

$

In Stock, Qty 8

Exmark 103-6397

116-5175-S

(Superseded to 116-5175-S) 

$34.99

$

In Stock, Qty 20+

61

Exmark 103-3037

BUSHING,SPLINED

$25.99

$

In Stock, Qty 20+

62

Exmark 109-5958

109-9220

(Superseded to 109-9220) 

$8.99

$

In Stock, Qty 20+

63

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$298.99

$

In Stock, Qty 17
