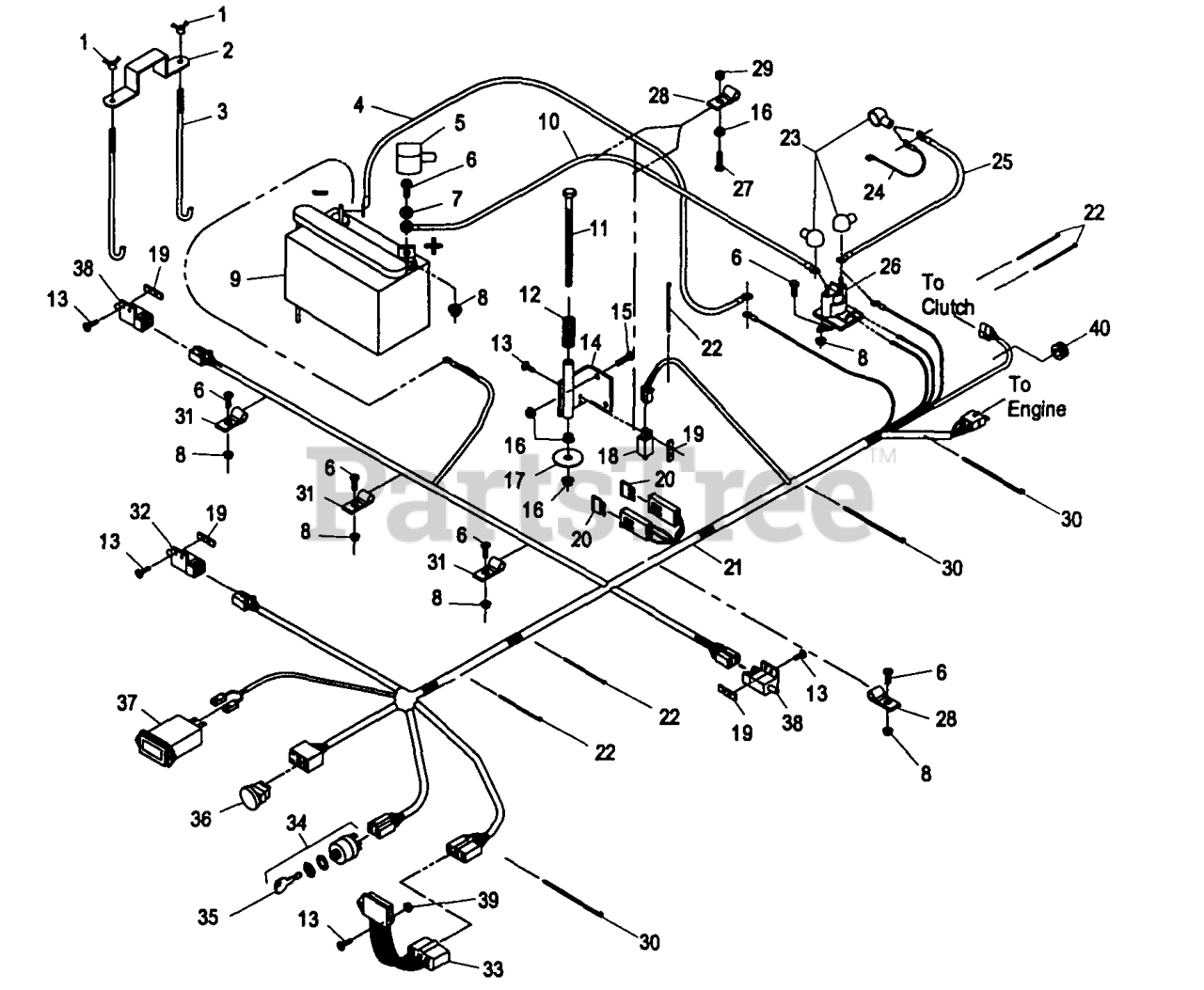

LHP4818KC - Exmark 48" Lazer Z HP Zero-Turn Mower, 18hp Kohler (SN: 150000 - 189999) (1998) Electric Group Parts Diagram

48" Lazer Z HP Zero-Turn Mower, 18hp Kohler

Electric Group Parts Diagram

  • Title

1

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

2

Exmark 1-633652-03

STRAP-HOLDDOWN

$24.99

$

In Stock, only 3 left!

0

3

Exmark 1-633651

BOLT-HOLDDOWN

$8.99

$

In Stock, Qty 20+

0

4

Exmark 1-523282

DISCONTINUED

$

$

Not available

5

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.99

$

In Stock, only 1 left!

0

6

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

8

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-603479

Battery, 12v

$

$

Not available

10

Exmark 1-523281

109-7630
(Superseded to 109-7630)

$46.99

$

In Stock, only 2 left!

0

11

Exmark 1-800282

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

12

Exmark 1-523415

SPRING-SWITCH, SEAT

$37.99

$

In Stock, only 1 left!

0

13

Exmark 1-803028

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 1-652072-03

BRACKET-SWITCH, SEAT

$

$

Not available

15

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-653036

WASHER

$5.99

$

In Stock, only 2 left!

0

18

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, Qty 9

0

19

Exmark 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

20

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 2 left!

0

21

Exmark 1-653154

HARNESS,WIRING

Note: (18hp Koh) Use dielectric grease on all wiring harness connectors

$378.99

$

In Stock, only 2 left!

0

Exmark 1-653181

1-651315
(Superseded to 1-651315)

Note: (17hp Kaw) Use dielectric grease on all wiring harness connectors

$

$

Not available

22

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 1-543393

INSULATOR-SOLENOID

$5.99

$

Usually ships in 3-6 days

0

24

Exmark 1-543084

DISCONTINUED

$

$

Not available

25

Exmark 1-633306

109-7620
(Superseded to 109-7620)

$

$

Not available

26

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$50.99

$

Usually ships in 3-6 days

0

27

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

29

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

30

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

31

Exmark 1-323229

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

32

Exmark 1-633110

SWITCH-BRAKE

$25.99

$

In Stock, Qty 5

0

33

Exmark 1-543316

MODULE,OPC

$207.99

$

In Stock, only 2 left!

0

34

Exmark 1-543070

SWITCH,IGNITION

$47.99

$

In Stock, Qty 14

0

35

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 16

0

36

Exmark 1-633673

103-5221
(Superseded to 103-5221)

$63.99

$

In Stock, only 4 left!

0

37

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$76.99

$

In Stock, Qty 5

0

38

Exmark 1-633111

SWITCH

$23.99

$

In Stock, Qty 5

0

39

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

40

Exmark 1-543286

GROMMET

$13.99

$

Usually ships in 3-6 days

0
