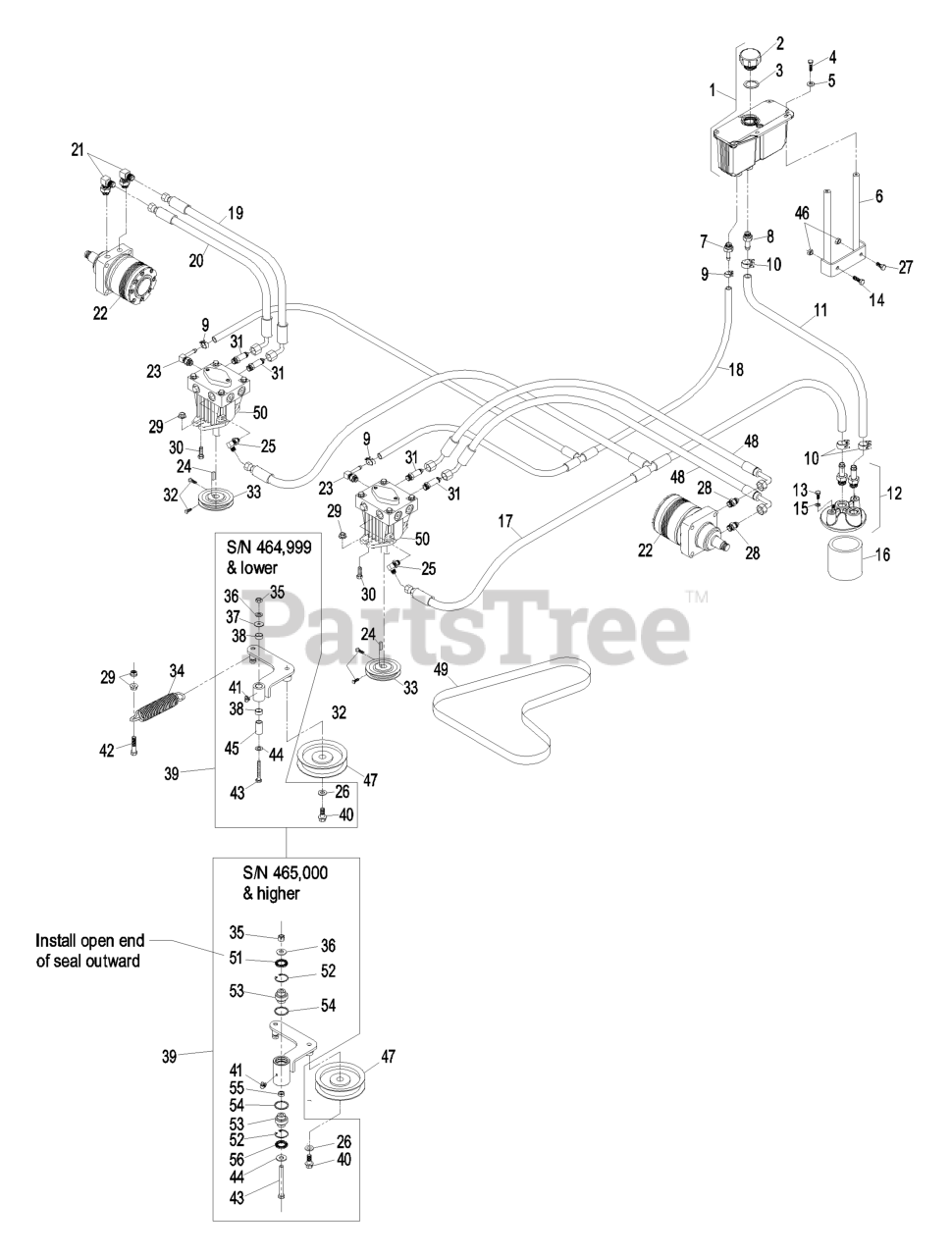

LHP4820KC - Exmark 48" Lazer Z HP Zero-Turn Mower, 20hp Kohler (SN: 440000 - 509999) (2004) Hydraulic Group Parts Diagram

48" Lazer Z HP Zero-Turn Mower, 20hp Kohler

Hydraulic Group Parts Diagram

  • Title

1

Exmark 103-1947

HYD RESERVOIR ASM

$286.99

$

Usually ships in 3-6 days

0

2

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$37.99

$

In Stock, Qty 20+

0

3

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

4

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

5

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 103-3071-03

STAND-RESERVOIR

$66.99

$

Usually ships in 3-6 days

0

7

Exmark 103-1801

ADAPTER-STRAIGHT

$35.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

8

Exmark 103-1912

ADAPTER-STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

9

Exmark 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

0

10

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Exmark 103-3077

HYD HOSE ASM

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 103-2889

FILTER HEAD ASM

$120.99

$

Usually ships in 3-6 days

0

Exmark 103-1912

ADAPTER-STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

13

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

16

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$53.99

$

In Stock, Qty 15

0

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: Use only for operation below 32°F (0°C).

$53.99

$

In Stock, only 4 left!

0

17

Exmark 103-2930

HYD HOSE ASM

$96.99

$

In Stock, only 2 left!

0

18

Exmark 103-2357

HYD HOSE ASM

$56.99

$

In Stock, only 2 left!

0

19

Exmark 1-653187

HOSE-REAR, RH

$92.99

$

In Stock, only 3 left!

0

Exmark 1-653437

HOSE,HYDRAULIC

$104.99

$

Usually ships in 3-6 days

0

20

Exmark 1-653186

HOSE-FRONT

$91.99

$

In Stock, Qty 5

0

Exmark 1-653436

HOSE,HYDRAULIC

$94.99

$

In Stock, only 3 left!

0

21

Exmark 1-633605

FITTING-HYD, 90 DEG

$54.99

$

Usually ships in 3-6 days

0

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 13

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-523328

MOTOR-WHEEL

$1417.99

$

Usually ships in 3-6 days

0

Exmark 1-000139

Kit, Bearing

$

$

Not available

Exmark 1-000099

103-6994
(Superseded to 103-6994)

$397.99

$

Usually ships in 3-6 days

0

Exmark 103-2748

DRIVE LINK KIT

$

$

Not available

23

Exmark 103-1799

ELBOW-90 DEG

$34.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

24

Exmark 1-807272

KEY

$6.49

$

In Stock, Qty 20+

0

25

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$27.99

$

In Stock, only 2 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

26

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Exmark 1-603991

FITTING-STRAIGHT

$25.99

$

In Stock, only 4 left!

0

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 13

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

29

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

30

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

31

Exmark 103-1940

ADAPTER-STR, LONG

$27.99

$

In Stock, only 3 left!

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

32

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022).

$2.99

$

In Stock, only 2 left!

0

33

Exmark 1-653156

PULLEY

$75.99

$

In Stock, only 2 left!

0

34

Exmark 103-4480

116-0032
(Superseded to 116-0032)

$39.99

$

In Stock, Qty 20+

0

35

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

36

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

37

Exmark 63-8410

WASHER

Note: This component is required for units with 464,999 and lower.

$2.49

$

In Stock, only 2 left!

0

38

Exmark 103-4681

SLEEVE-BEARING

Note: This component is required for units with 464,999 and lower.

$5.99

$

In Stock, Qty 10

0

39

Exmark 103-5699

109-4311
(Superseded to 109-4311)

Note: 103-5699 kit includes components shown for S/N 465,000 and higher and services all serial numbers.

$223.99

$

In Stock, only 1 left!

0

40

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

41

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

42

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Exmark 323-13

SCREW-HH

Note: This component is required for units with 464,999 and lower.

$4.49

$

In Stock, Qty 20+

0

Exmark 98-5961

SCREW-HH

Note: This component is required for units with 465,000 and higher.

$5.99

$

In Stock, Qty 20+

0

44

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

45

Exmark 1-603044

BUSHING

Note: This component is required for units with 464,999 and lower.

$15.99

$

In Stock, Qty 20+

0

46

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$36.99

$

In Stock, Qty 20+

0

48

Exmark 103-3809

HOSE-LH

$120.99

$

In Stock, only 2 left!

0

Exmark 103-3810

HOSE,LH 52

$

$

Not available

49

Exmark 103-4760

BELT-COG
(Superseded to 103-4760-SL)

$50.99

$

In Stock, Qty 13

0

Exmark 103-4761

BELT
(Superseded to 103-4761-SL)

$35.99

$

Usually ships in 3-6 days

0

50

Exmark 103-1942

PUMP-HYD

$1303.99

$

In Stock, only 2 left!

0

Exmark 103-2664

INPUT SHAFT KIT

$261.99

$

Usually ships in 3-6 days

0

Exmark 94-6922

BEARING-THRUST

$70.99

$

In Stock, only 2 left!

0

Exmark 103-2666

CYLINDER BLOCK KIT

$614.99

$

Usually ships in 3-6 days

0

Exmark 105-6184

SEAL OVERHAUL KIT

$101.99

$

In Stock, Qty 9

0

Exmark 103-2741

SHOCK VALVE KIT

$

$

Not available

51

Exmark 103-3506

SEAL-LIP, SINGLE

Note: This component is required for units with 465,000 and higher.

$6.49

$

In Stock, Qty 20+

0

52

Exmark 32120-10

RING-SNAP

Note: This component is required for units with 465,000 and higher.

$1.49

$

In Stock, Qty 20+

0

53

Exmark 103-3504

BEARING-SPHERICAL

Note: This component is required for units with 465,000 and higher.

$28.99

$

In Stock, Qty 20+

0

54

Exmark 106-7159

O-RING

Note: This component is required for units with 465,000 and higher.

$1.49

$

In Stock, Qty 20+

0

55

Exmark 103-5677

SPACER

Note: This component is required for units with 465,000 and higher.

$2.99

$

In Stock, Qty 9

0

56

Exmark 103-3505

SEAL-LIP, DOUBLE

Note: This component is required for units with 465,000 and higher.

$6.49

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$37.99

$

In Stock, Qty 9

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

In Stock, only 2 left!
