LHP4820KC - Exmark 48" Lazer Z HP Zero-Turn Mower, 20hp Kohler (SN: 510000 - 539999) (2005) Mainframe Group Parts Diagram

48" Lazer Z HP Zero-Turn Mower, 20hp Kohler

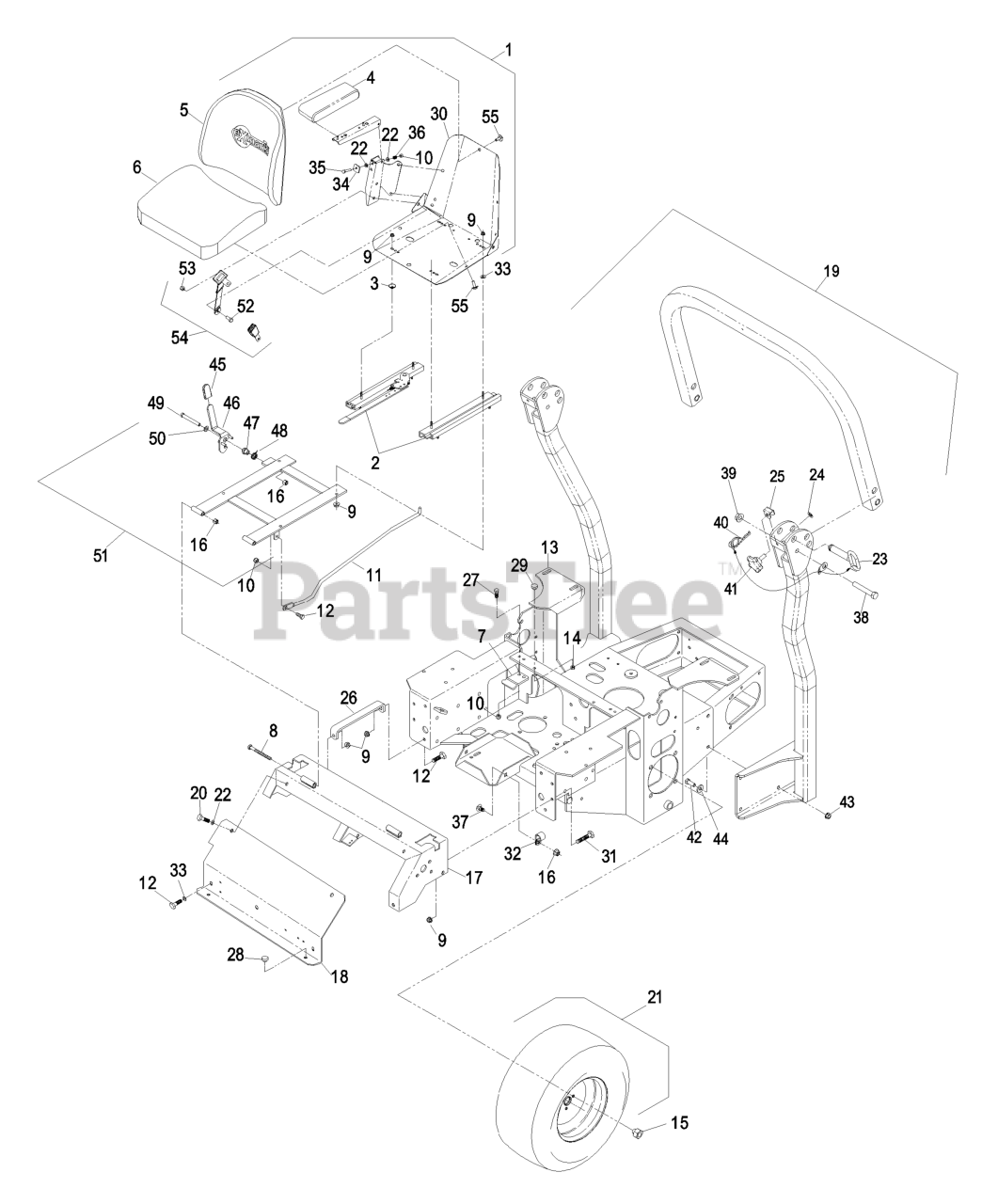

Mainframe Group Parts Diagram

  • Title

1

Exmark 103-3524

KIT,SEAT W/ARMREST ADJ.

Note: Includes armrests, armrest adjuster hardware and seat back decal. Does not include seat belt or tracks.

$756.99

$

Usually ships in 3-6 days

0

2

Exmark 1-643255

TRACK-SEAT

$237.99

$

In Stock, only 1 left!

0

Exmark 103-8386

116-1685
(Superseded to 116-1685)

$39.99

$

In Stock, only 1 left!

0

3

Exmark 1-543401

SPACER-TRACK

$5.49

$

In Stock, only 4 left!

0

4

Exmark 103-0292

CUSHION,ARMREST RH

$109.99

$

In Stock, only 3 left!

0

Exmark 103-0291

CUSHION,ARMREST LH

Note: Not Illustrated.

$109.99

$

In Stock, only 2 left!

0

5

Exmark 103-3520

CUSHION,SEAT BACK

$259.99

$

Usually ships in 3-6 days

0

6

Exmark 103-3521

CUSHION,SEAT BOTTOM

$283.99

$

In Stock, only 1 left!

0

7

Exmark 103-5961

CATCH-LATCH, SEAT

$

$

Not available

8

Exmark 323-39

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

9

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Exmark 103-1731

ROD-RETAINER, SEAT

$

$

Not available

12

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 103-7631

109-3970
(Superseded to 109-3970)

$

$

Not available

14

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Exmark 103-3452

ASM,CONSOLE WELDMENT W/DE

$

$

Not available

18

Exmark 103-4895

DISCONTINUED

$

$

Not available

19

Exmark FRPSL

KIT, LAZER HP / CT 2 POST

Note: Rollover protection frame is serviced as a complete assembly only. Includes complete ROPS frame, mounting hardware, fold pivot and locking hardware, seat frame assembly item #51, catch item #7, and seat belt assembly item #54.

$574.99

$

Usually ships in 3-6 days

0

20

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 103-2769

ASM,WHEEL AND TIRE

$

$

Not available

Exmark 103-2770

WHEEL AND TIRE ASM

$

$

Not available

Exmark 1-653158

WHEEL

$219.99

$

Usually ships in 3-6 days

0

Exmark 1-653161

WHEEL

$200.99

$

Usually ships in 3-6 days

0

Exmark 103-2771

TIRE
(Superseded to 127-9523)

$372.99

$

Usually ships in 3-6 days

0

22

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Exmark 103-4553

PIN-FOLD, ROPS
(Superseded to 161-4477)

Note: Includes ROPS fold pin plus hairpin item #40.

$37.99

$

Usually ships in 3-6 days

0

24

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 5

0

25

Exmark 107-3124

CLIP

$5.99

$

In Stock, only 2 left!

0

26

Exmark 1-653089-03

103-7935-03
(Superseded to 103-7935-03)

$

$

Not available

27

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

28

Exmark 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

29

Exmark 1-523420

109-2365
(Superseded to 109-2365)

$5.99

$

In Stock, Qty 20+

0

30

Exmark 1-633859

FRAME-SEAT

$209.99

$

In Stock, only 1 left!

0

31

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Exmark 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

33

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Exmark 103-0284

TAB,ARMREST ADJUSTMENT

$

$

Not available

35

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 17

0

37

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

38

Exmark 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

39

Exmark 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

40

Exmark 107-3155

HAIRPIN

$7.49

$

Usually ships in 3-6 days

0

41

Exmark 106-0887

KNOB

$9.49

$

In Stock, only 4 left!

0

42

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

43

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

44

Exmark 98-5795

Washer, Spring Disk 3/8

$

$

Currently unavailable

45

Exmark 103-4434

GRIP-LEVER

$2.99

$

In Stock, only 4 left!

0

46

Exmark 107-3083

LATCH ASM

$33.99

$

Usually ships in 3-6 days

0

47

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.99

$

In Stock, only 1 left!

0

48

Exmark 107-0076

SPRING-TORSION

$14.99

$

Usually ships in 3-6 days

0

49

Exmark 323-20

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

50

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Exmark 103-4423

ASM,SEAT FRAME

$242.99

$

Usually ships in 3-6 days

0

52

Exmark 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

53

Exmark 3296-7

NUT-LOCK

$4.49

$

Usually ships in 3-6 days

0

54

Exmark 103-4469

SEATBELT KIT

$182.99

$

Usually ships in 3-6 days

0

55

Exmark 103-8383

BOLT-SEAT

$2.99

$

Usually ships in 3-6 days

0
