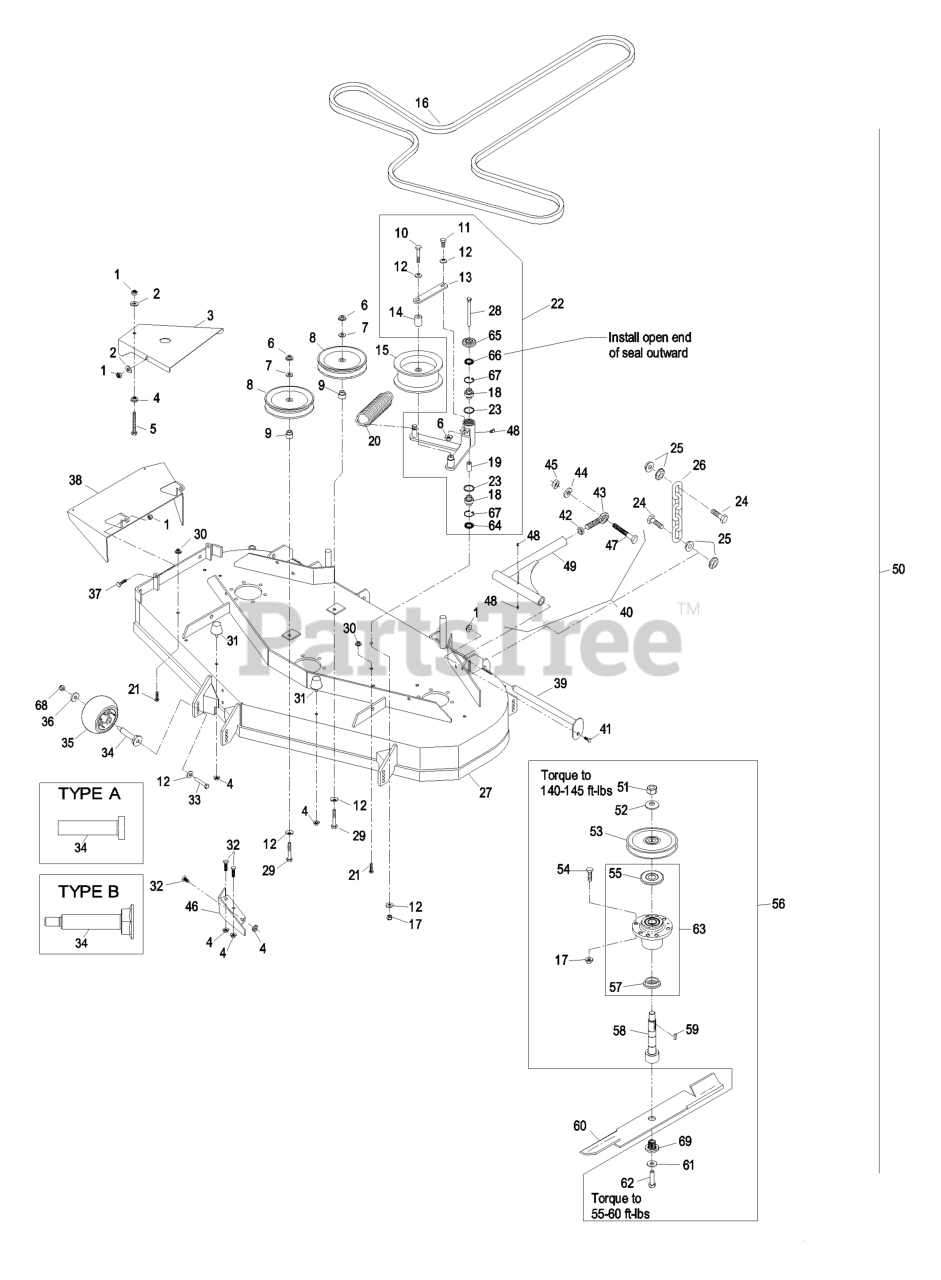

Exmark LHP4820KC - Exmark 48" Lazer Z HP Zero-Turn Mower, 20hp Kohler (SN: 540000 - 599999) (2005) Deck Group 52" Parts Lookup with Diagrams

1

Exmark 103-2970-01

SHIELD,BELT

$42.99

$

In Stock, only 1 left!

4

Exmark 1-800017

BOLT,TAP HH

$7.99

$

In Stock, only 1 left!

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

13

Exmark 103-5668

PLATE,GUIDE BELT (PLTD)

$10.99

$

In Stock, only 4 left!

14

Exmark 1-413099

116-4666

(Superseded to 116-4666) 

$75.99

$

In Stock, Qty 17

16

Exmark 1-653368

BELT,BLADE DRIVE

$167.99

$

In Stock, only 2 left!

17

Exmark 103-3504

BEARING-SPHERICAL

$28.99

$

In Stock, Qty 20+

19

Exmark 103-3330

116-6317

(Superseded to 116-6317) 

$31.99

$

In Stock, Qty 20+

21

Exmark 321-1

SCREW-HH

$2.49

$

Usually ships in 3-6 days

22

Exmark 103-5698

KIT,DECK IDLER LHP/LCT

Note: Idler arm assembly also includes items #12 & #17

$258.99

$

In Stock, only 2 left!

23

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, only 1 left!

27

Exmark 1-543963

BUMPER-RUBBER

$27.99

$

Usually ships in 3-6 days

32

Exmark 98-5961

SCREW-HH

Note: Unit may have been buit with Type A or Type B anti scalp axles. Reference "(Deck Group 52")" to determine which axles are installed on the unit.

$5.99

$

In Stock, Qty 20+

Exmark 3211-46

SCREW-HH

Note: Unit may have been buit with Type A or Type B anti scalp axles. Reference "(Deck Group 52")" to determine which axles are installed on the unit.

$2.99

$

In Stock, Qty 20+

34

Exmark 1-603602

BUSHING-ROLLER

Note: Unit may have been buit with Type A or Type B anti scalp axles. Reference "(Deck Group 52")" to determine which axles are installed on the unit.

$26.99

$

In Stock, Qty 20+

Exmark 103-5364

116-9981

(Superseded to 116-9981) 

$56.99

$

In Stock, Qty 20+

35

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-3168 includes antiscalp roller, axle, & mounting hardware for Type A axles. Kit 103-7263 includes antiscalp roller, axle, & mounting hardware for Type B axles.

$26.99

$

In Stock, Qty 20+

36

Exmark 1-652375-01

WLD,DISCHARGE CHUTE

$224.99

$

In Stock, only 1 left!

39

Exmark 103-1081

STRUT ASM

$300.99

$

In Stock, only 1 left!

41

Exmark 1-633029

BALLJOINT-SPHERICAL

$71.99

$

In Stock, Qty 11

44

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$56.99

$

Usually ships in 3-6 days

47

Exmark 103-1072-01

109-1181

(Superseded to 109-1181) 

$128.99

$

In Stock, Qty 20+

50

Exmark 1-654552

Deck Complete Service

Note: Includes all items shown plus decals.

$

Currently unavailable 

51

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, 5 ml tube) on nut item #51.

$13.99

$

In Stock, Qty 8

52

Exmark 1-653386

SHEAVE,6.13 EOD

Note: Apply Mobil HTS grease (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$123.99

$

In Stock, only 2 left!

54

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$5.99

$

In Stock, Qty 20+

56

Exmark 103-9077

ASM, CUTTER HSG 52

$646.99

$

Usually ships in 3-6 days

57

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 2 left!

58

Note: Kit includes items #51, #52, #59, #61, #62 & #69. Apply Mobil HTS grease (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$260.99

$

In Stock, only 2 left!

59

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 15

60

Exmark 103-6402

103-6402-S

(Superseded to 103-6402-S) 

$34.99

$

In Stock, Qty 20+

Exmark 103-6387

103-6387-S

(Superseded to 103-6387-S) 

$39.99

$

In Stock, only 4 left!

Exmark 103-6392

103-6392-S

(Superseded to 103-6392-S) 

Note: Includes all items shown plust decals.

$34.99

$

In Stock, Qty 20+

Exmark 103-6382

103-6382-S

(Superseded to 103-6382-S) 

$39.99

$

In Stock, Qty 8

Exmark 103-6397

116-5175-S

(Superseded to 116-5175-S) 

$34.99

$

In Stock, Qty 20+

61

Exmark 1-513435

WASHER-SPRING

$6.49

$

In Stock, Qty 20+

62

Exmark 3213-5

SCREW-HH

$4.49

$

In Stock, Qty 16

63

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$298.99

$

In Stock, Qty 17

64

Exmark 103-3505

SEAL-LIP, DOUBLE

$6.49

$

In Stock, Qty 20+

65

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

66

Exmark 103-3506

SEAL-LIP, SINGLE

$6.49

$

In Stock, Qty 20+

67

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

68

Exmark 3290-357

NUT-HHF, WHIZ

Note: Unit may have been buit with Type A or Type B anti scalp axles. Reference "(Deck Group 52")" to determine which axles are installed on the unit.

$0.99

$

In Stock, Qty 20+

Exmark 3296-39

NUT-LOCK, NI

Note: Unit may have been buit with Type A or Type B anti scalp axles. Reference "(Deck Group 52")" to determine which axles are installed on the unit.

$2.99

$

In Stock, Qty 20+
