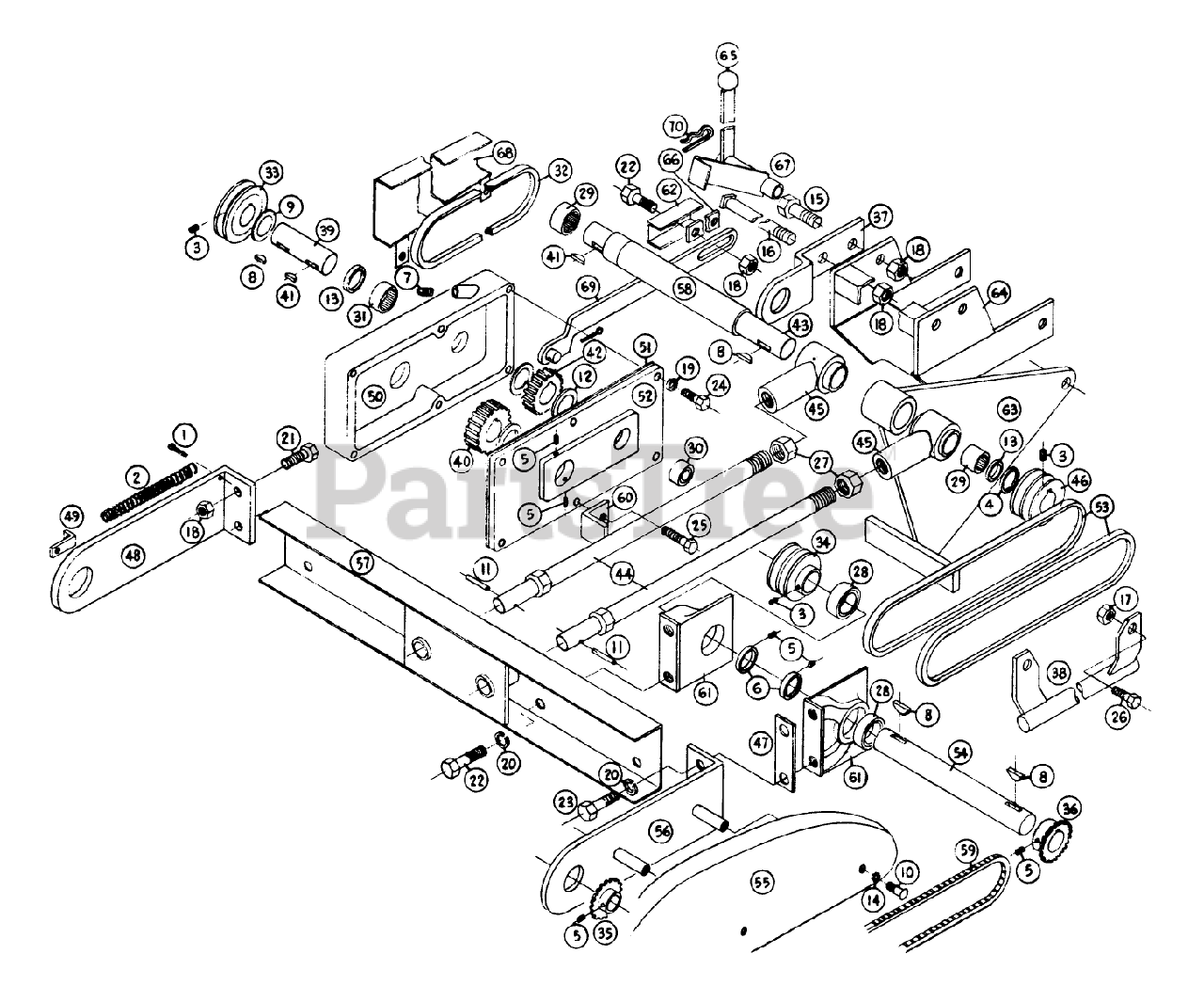

LMR-301 - Toro 30" Reel Mower Deck (1961) Front Reel Mower Lmr-301parts List Parts Diagram

30" Reel Mower Deck

Front Reel Mower Lmr-301parts List Parts Diagram

  • Title

1

Toro 1002

Cotter Key
(Superseded to 703201)

$

$

Not available

2

Toro 1014

DUP PART SEE $BOOK

$

$

Not available

3

Toro 1042

Snap Ring
(Superseded to 700097)

$1.49

$

In Stock, only 1 left!

0

4

Toro 1052

Flat Washer
(Superseded to 742000)

$

$

Not available

5

Toro 1066

Set Screw 1/4-20 x 1

$

$

Currently unavailable

6

Toro 1085

See Supercession: 83-2770
(Superseded to 83-2770)

$

$

Not available

7

Toro 1108

Pipe Plug

$

$

Currently unavailable

8

Toro 1122

See Supercession: 3257-5
(Superseded to 3257-5)

$6.49

$

In Stock, Qty 19

0

9

Toro 1197

DISCONTINUED

$

$

Not available

10

Toro 1214

Rd. Hd. Slotted Machine #8-32

$

$

Currently unavailable

11

Toro 1269

See Supercession: 933213
(Superseded to 93-3213)

$

$

Not available

12

Toro 1278

WASHER

$2.49

$

In Stock, Qty 14

0

13

Toro 1303

See Supercession: 100441
(Superseded to 100441)

$10.99

$

In Stock, Qty 8

0

14

Toro 1351

Shakeproof Washer 8132
(Superseded to 701792)

$

$

Not available

15

Toro 1363

See Supercession: 110242
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

16

Toro 1394

DISCONTINUED

$

$

Not available

17

Toro 1406

1/4-20 Lock Nut

$

$

Currently unavailable

18

Toro 1408

Nut

$

$

Currently unavailable

19

Toro 1416

Lockwasher 1/4

$

$

Currently unavailable

20

Toro 1418

Lockwasher 3/8

$

$

Currently unavailable

21

Toro 1423

Bolts 3/8-16 x 3/4

$

$

Currently unavailable

22

Toro 1425

Bolt 3/8-16 x 1

$

$

Not available

23

Toro 1426

Collar w/Setscrew
(Superseded to 701658)

$37.99

$

Usually ships in 3-6 days

0

24

Toro 1428

1/4-20 x 5/8 Hex Hd. Cap Screw

$

$

Currently unavailable

25

Toro 1435

1/4-20 x 3/4 H.H.C.S.

$

$

Currently unavailable

26

Toro 1439

Bolt 1/4-20 x 1 CP

$

$

Currently unavailable

27

Toro 1459

Hex Jam Nut 3/4

$

$

Currently unavailable

28

Toro 1515

See Supercession: 101480
(Superseded to 101480)

$64.99

$

In Stock, only 3 left!

0

29

Toro 1523

BEARING-NEEDLE

$47.99

$

Usually ships in 3-6 days

0

30

Toro 1529

BEARING-NEEDLE

$56.99

$

Usually ships in 3-6 days

0

31

Toro 1538

NEEDLE BEARING

$

$

Not available

32

Toro 1585

See Supercession: 9714
(Superseded to 9714)

$

$

Not available

33

Toro 1611

PULLEY

$422.99

$

Usually ships in 3-6 days

0

34

Toro 1624

DISCONTINUED

$

$

Not available

35

Toro 2490

Clevis
(Superseded to 704038)

$

$

Not available

36

Toro 2489

DISCONTINUED

$

$

Not available

37

Toro 2519

Front Mounting Bracket

$

$

Currently unavailable

38

Toro 4651

Lift Rod

$

$

Currently unavailable

39

Toro 2522

Drive Shaft

$

$

Currently unavailable

40

Toro 2524

Jack Shaft Gear

$

$

Currently unavailable

41

Toro 2525

See Supercession: 3257-5
(Superseded to 3257-5)

$6.49

$

In Stock, Qty 19

0

42

Toro 2526

Drive Gear

$

$

Currently unavailable

43

Toro 2527

Lower Drive Shaft

$

$

Currently unavailable

44

Toro 2528

Hanger Rod W/A

$

$

Currently unavailable

45

Toro 2530

End Hanger Rod

$

$

Currently unavailable

46

Toro 2531

Pulley

$

$

Currently unavailable

47

Toro 2532

Shim

$

$

Currently unavailable

48

Toro 2533

End Channel Support R.H.

$

$

Currently unavailable

49

Toro 2534

CLIP - SPRING

$4.99

$

Usually ships in 3-6 days

0

50

Toro 2536

Gear Box

$

$

Currently unavailable

51

Toro 2537

Gasket

$

$

Currently unavailable

52

Toro 2538

Cover

$

$

Currently unavailable

53

Toro 2539

V Belt 3-"W 34"

$

$

Currently unavailable

54

Toro 2540

Mower Shaft

$

$

Currently unavailable

55

Toro 2541

Chain Guard

$

$

Currently unavailable

56

Toro 2542

End Channel Support L.H.

$

$

Currently unavailable

57

Toro 2545

Mounting Channel

$

$

Currently unavailable

58

Toro 2548

Pivot Tube

$

$

Currently unavailable

59

Toro 2549

Chain 70 links

$

$

Currently unavailable

60

Toro 2595

Stop Bracket

$

$

Currently unavailable

61

Toro 3138-C

Bearing Support

$

$

Currently unavailable

62

Toro 4404

Brace Clutch Bar

$

$

Currently unavailable

63

Toro 4638

Lift Ass-y.

$

$

Not available

64

Toro 4630

Mounting Bracket (Special)

$

$

Currently unavailable

65

Toro 1001

DUP PART SEE $BOOK

$

$

Not available

66

Toro 3933

Link

$

$

Currently unavailable

67

Toro 2552

Clutch Assembly

$

$

Currently unavailable

68

Toro 2553

Belt Guard

$

$

Currently unavailable

69

Toro 2554

Knob
(Superseded to 703245)

$

$

Not available

70

Toro 1372

Hair Pin

$

$

Currently unavailable

Toro 2418

Reel Assembly

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro LPA-515

Reel Assembly L.H.

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro LPA-518

Cutter Bar Assembly

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro LPA-517

Side Frame Assembly L.H.

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro LPA-516

Side Frame Assembly R.H.

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro LPA-512

Caster Assembly

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro LP-677

Brush Bar

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro LP-475

Roller Bracket

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro LP-696

Roller Shaft

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro L-114

Adjusting Cam

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro LP-411

Roller Section

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro F5-301

5/16-24 x 3/4 H.H.C.S.

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro F10-315

5/16-24 "Huglock" Nut

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro F5-350

3/8-14 x 7/8 H.H.C.S.

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro F5-353

3/8-16 x 3/4 Carriage Bolt

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro F15-352

3/8 Lockwasher

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro F5-201

1/4-20 x 3/4 Fillester H/S

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro F10-201

1/4-20 Square Nut

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro F15-200

1/4 Lockwasher Shakeproof

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro F15-650

3/8 S.A.E. Washer

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable

Toro F20-75

3/16 x 1 1/4 Cotter Pin

Note: Included in Reel Assembly, Part No. 2418.

$

$

Currently unavailable
