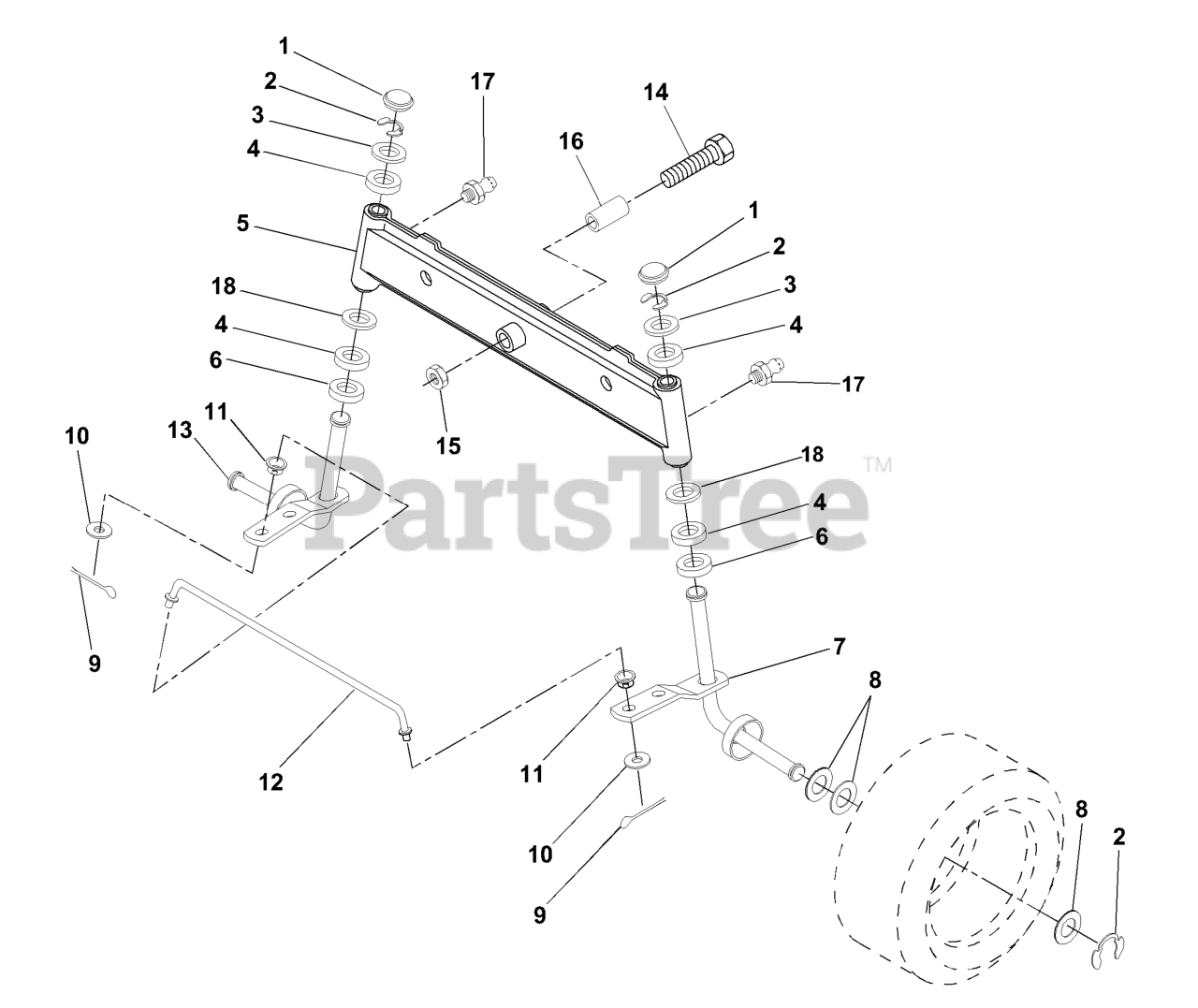

LR 122 (954140105-B) - Husqvarna Lawn Tractor (2000-01) Front Axle Parts Diagram

Lawn Tractor

Front Axle Parts Diagram

  • Title

1

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 812000029

RING CLIP

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532142033

AXLE ASSY

$

$

Not available

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532161826

SPINDLE

$

$

Not available

8

Husqvarna 532171038

WASHER
(Superseded to 532121749)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 2 left!

0

10

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532126847

BUSHING.DRAGLINK (2 2)

$5.99

$

In Stock, Qty 20+

0

12

Husqvarna 532130465

TIE ROD
(Superseded to 532192757)

$41.99

$

In Stock, Qty 7

0

13

Husqvarna 532161827

SPINDLE.ASSEM.LH

$

$

Not available

14

Husqvarna 874011056

Bolt Hex 5/1-11 x 3-1/2

$

$

Not available

15

Husqvarna 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

$

$

Not available

16

Husqvarna 532110438

BEARING
(Superseded to 532155134)

$

$

Not available

17

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$5.99

$

In Stock, Qty 10

0

18

Husqvarna 819272016

WASHER

$4.99

$

In Stock, Qty 5

0
