LRE730GKA48DA3 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V (SN: 417930746 & Above) (Rev B) (2025) Deck Assembly Parts Diagram

48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V

Deck Assembly Parts Diagram

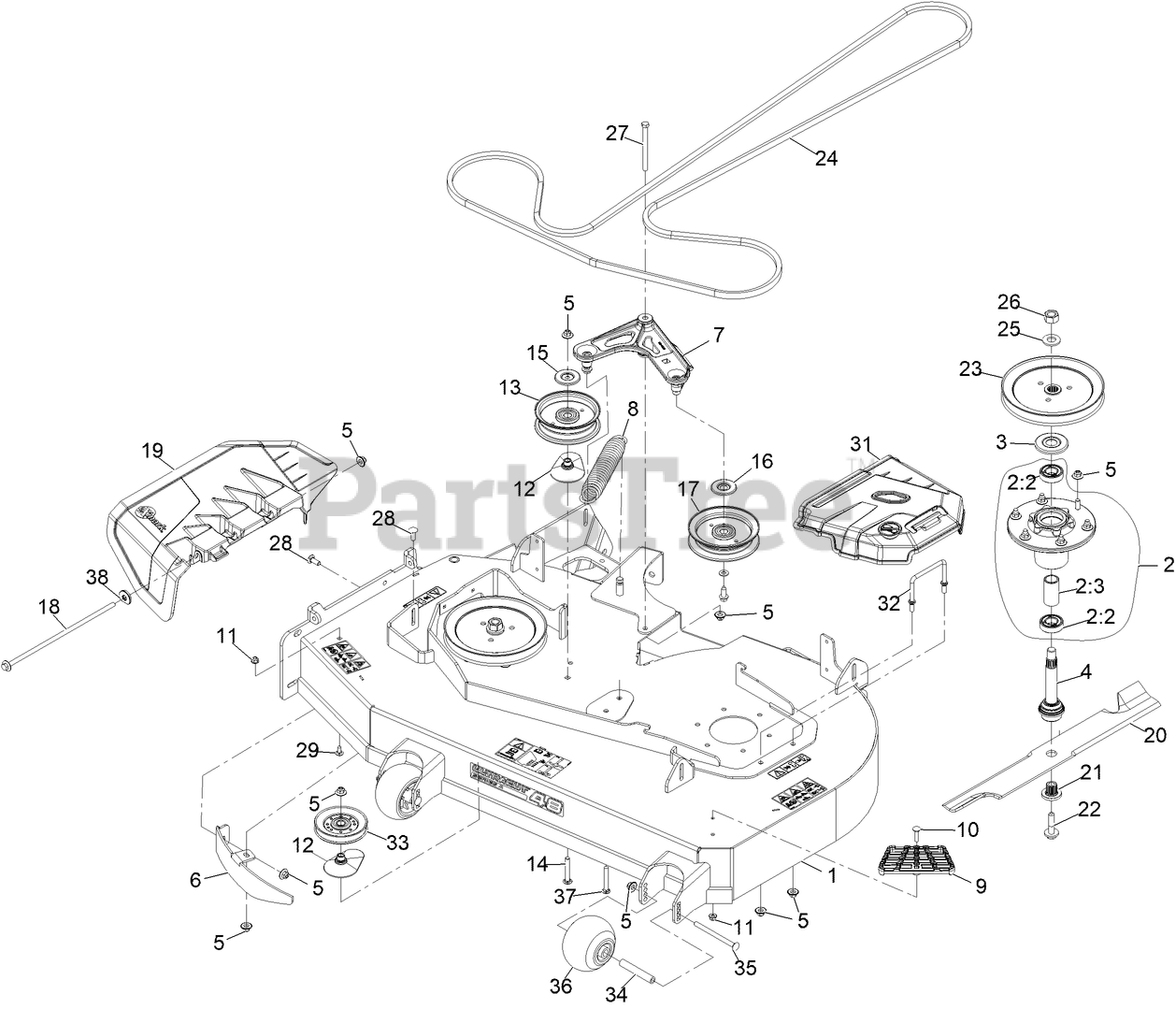

  • Title

1

Exmark 146-1703

ASM, 48" DECK W/DECALS

$2059.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$172.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 8

0

3

Exmark 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

4

Exmark 116-3341

ASM-SPINDLE AND SEAL

$98.99

$

In Stock, Qty 20+

0

5

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

6

Exmark 142-9262-01

Baffle-Discharge 48 2Blade

$61.99

$

Usually ships in 3-6 days

0

7

Exmark 142-6530

ASM-IDLER ARM W/BEARINGS
(Superseded to 146-5971)

$98.99

$

In Stock, only 2 left!

0

8

Exmark 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 19

0

9

Exmark 126-4781-03

STEP-DECK

$32.99

$

In Stock, only 1 left!

0

10

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

13

Exmark 146-4605

IDLER-PULLEY, FLAT 5.00X1.31

$44.99

$

In Stock, only 4 left!

0

14

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

15

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

16

Exmark 126-9195

SHIELD-GUARD, DUST

$3.49

$

In Stock, Qty 8

0

17

Exmark 146-4609

IDLER-PULLEY, FLAT

$38.99

$

Usually ships in 3-6 days

0

18

Exmark 142-8544

Pin, Chute

$9.49

$

Usually ships in 3-6 days

0

19

Exmark 142-7025

Chute-Deck Discharge

$90.99

$

In Stock, only 4 left!

0

20

Exmark 116-5171

USE 116-5171-S
(Superseded to 116-5171-S)

Note: Optional Equipment

$47.99

$

In Stock, Qty 20+

0

20

Exmark 103-6384

USE 103-6384-S
(Superseded to 103-6384-S)

Note: Optional Equipment

$47.99

$

In Stock, Qty 20+

0

20

Exmark 103-6389

USE 103-6389-S
(Superseded to 103-6389-S)

Note: Optional Equipment

$42.99

$

In Stock, Qty 20+

0

20

Exmark 103-6394

USE 103-6394-S
(Superseded to 103-6394-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$42.99

$

In Stock, Qty 20+

0

20

Exmark 103-6404

USE 103-6404-S
(Superseded to 103-6404-S)

$47.99

$

In Stock, Qty 20+

0

21

Exmark 103-3037

BUSHING,SPLINED

$25.99

$

In Stock, Qty 20+

0

22

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

23

Exmark 146-4607

SHEAVE-BLADE DRIVE, 8.40

$41.99

$

Usually ships in 3-6 days

0

24

Exmark 140-3065

USE 135-3215
(Superseded to 135-3215)

$209.99

$

In Stock, Qty 7

0

25

Exmark 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

26

Exmark 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

27

Exmark 323-38

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

28

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

29

Exmark 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

31

Exmark 142-7102

SHIELD, LT

$23.99

$

In Stock, only 3 left!

0

32

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

33

Exmark 135-4398

Idler - V 4.13 Eod-A

$37.99

$

In Stock, only 2 left!

0

34

Exmark 146-1990

SPACER-AXLE

$8.49

$

In Stock, Qty 12

0

35

Exmark 109-6795

BOLT-CARR

$5.99

$

In Stock, only 4 left!

0

36

Exmark 146-1989

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 12

0

37

Exmark 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

38

Exmark 146-0943

Retainer, Chute

$1.49

$

Usually ships in 3-6 days

0
