LRE921GKA604A3 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX921V (SN: 417930746 & Above) (Rev A) (2025) Engine Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX921V

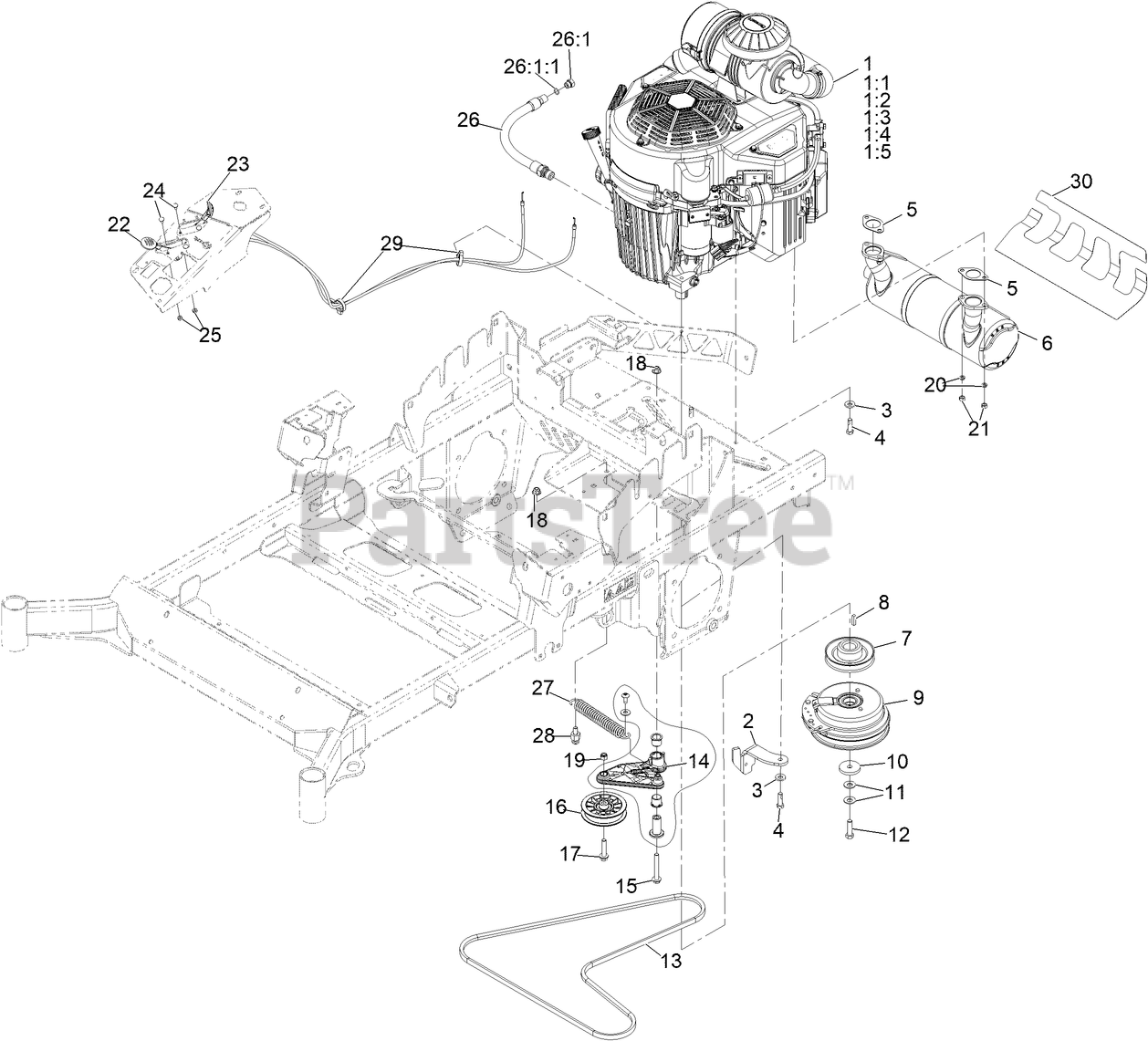

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki, Fx921V-_s25-R

Note: Not serviced separately

$

$

Not available

1:1

Exmark KW10761

FILTER-OIL KAW

$36.99

$

Usually ships in 3-6 days

0

1:2

Exmark 119-5944

ELEMENT-FILTER, AIR (OUTE

$51.99

$

Usually ships in 3-6 days

0

1:3

Exmark 119-5945

ELEMENT-FILTER, AIR (INNE

$58.99

$

In Stock, only 2 left!

0

1:4

Exmark 142-6949

FILTER-FUEL

$12.99

$

In Stock, only 2 left!

0

1:5

Exmark KW10676

Spark Plug

$10.99

$

In Stock, Qty 20+

0

2

Exmark 146-1557-03

Bracket, Clutch Anchor

$6.99

$

Usually ships in 3-6 days

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

4

Exmark 135-7890

Screw-HH, Patch

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 146-0413

GASKET, EXHAUST

$6.49

$

Usually ships in 3-6 days

0

6

Exmark 146-3666

MUFFLER, KAWASAKI

$196.99

$

Usually ships in 3-6 days

0

7

Exmark 146-1920

Sheave, Engine

$41.99

$

Usually ships in 3-6 days

0

8

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

9

Exmark 116-1604

USE 116-1620
(Superseded to 116-1620)

$392.99

$

In Stock, Qty 15

0

10

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 6

0

11

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

12

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.99

$

In Stock, Qty 11

0

13

Exmark 146-2527

Belt, A-Section

$30.99

$

In Stock, Qty 6

0

14

Exmark 146-2190

ASM, Idler Arm W/ Bushings

$91.99

$

Usually ships in 3-6 days

0

15

Exmark 133-9682

SCREW-HFH

$1.99

$

Usually ships in 3-6 days

0

16

Exmark 116-2456

PULLEY-FLAT IDLER

$26.99

$

In Stock, Qty 20+

0

17

Exmark 3234-19

SCREW-HHF

$3.49

$

In Stock, Qty 5

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

21

Exmark 114-3549

NUT

$2.49

$

In Stock, Qty 20+

0

22

Exmark 146-5157

CABLE-CONTROL, THROTTLE

$33.99

$

Usually ships in 3-6 days

0

23

Exmark 109-8167

ASM, CHOKE CABLE

$60.99

$

In Stock, Qty 11

0

24

Exmark 135-1929

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

$42.99

$

In Stock, Qty 6

0

26:1

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 1 left!

0

26:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

27

Exmark 146-2507

Spring, Extension

$9.99

$

In Stock, only 1 left!

0

28

Exmark 146-3604

PIN, SPRING ANCHOR

$9.49

$

Usually ships in 3-6 days

0

29

Exmark 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

30

Exmark 146-6214

Shield, Heat

$

$

Currently unavailable
