LRS801GKA524A2 - Exmark 52" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX801V (SN: 417930746 & Above) (Rev A) (2025) Engine Assembly Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX801V

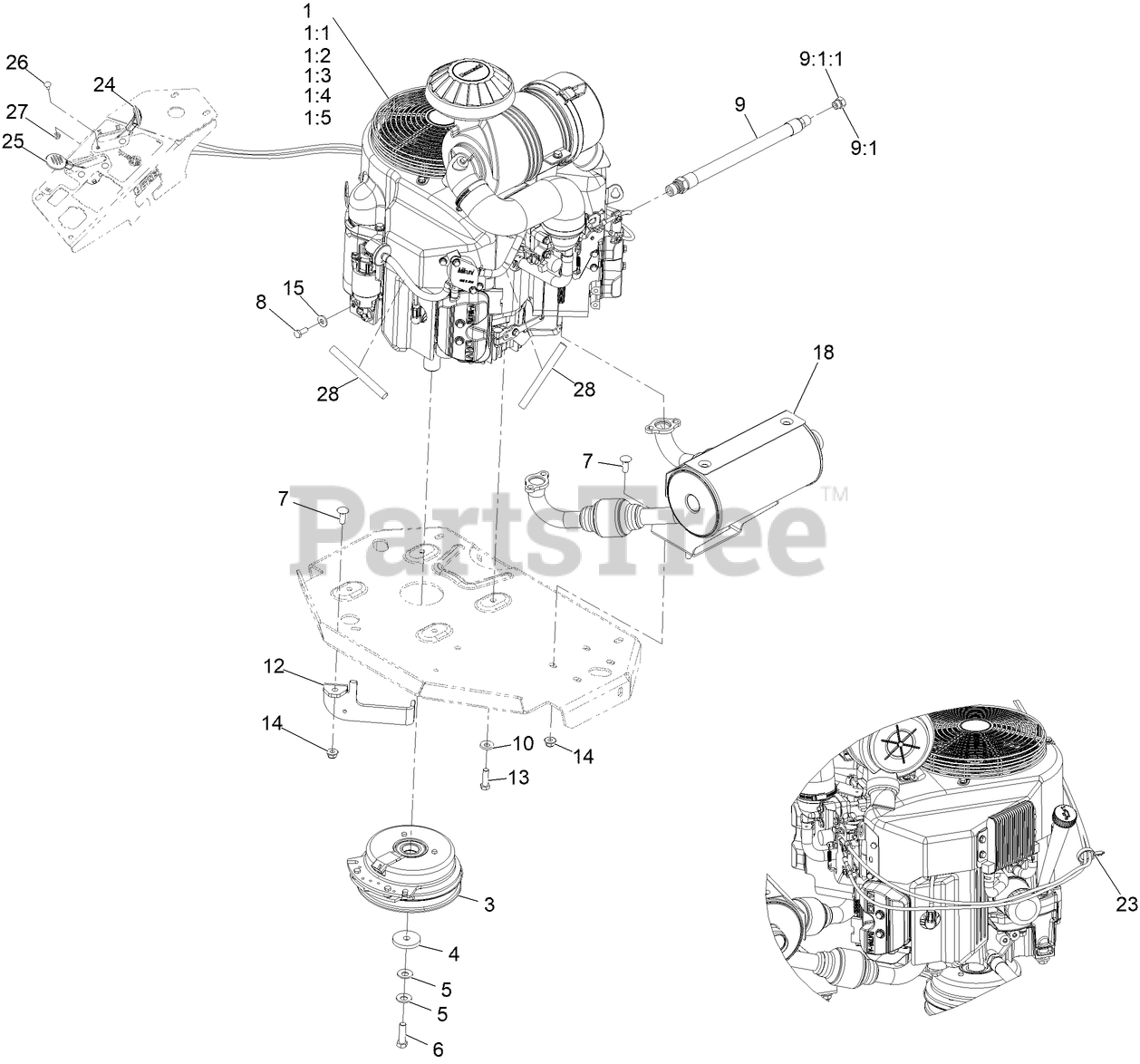

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki

Note: Not serviced separately | Obtain parts from www.kawpower.com

$

$

Not available

1:1

Exmark KW10761

FILTER-OIL KAW

$36.99

$

Usually ships in 3-6 days

0

1:2

Exmark 119-5944

ELEMENT-FILTER, AIR (OUTE

$51.99

$

Usually ships in 3-6 days

0

1:3

Exmark 119-5945

ELEMENT-FILTER, AIR (INNE

$58.99

$

In Stock, only 2 left!

0

1:4

Exmark 142-6949

FILTER-FUEL

$12.99

$

In Stock, only 2 left!

0

1:5

Exmark 92-2153

SPARK PLUG

$5.49

$

In Stock, Qty 8

0

3

Exmark 116-1620

CLUTCH KIT

$392.99

$

In Stock, Qty 15

0

4

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 6

0

5

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.99

$

In Stock, Qty 11

0

7

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

8

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

9

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Torque to 23-29 ft-lb

$42.99

$

In Stock, Qty 6

0

9:1

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 1 left!

0

9:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

10

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

12

Exmark 146-4184-01

Bracket-Clutch Anchor

$14.99

$

Usually ships in 3-6 days

0

13

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

18

Exmark 135-7562

KIT, MUFFLER

$478.99

$

In Stock, Qty 9

0

23

Exmark 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

24

Exmark 109-8167

ASM, CHOKE CABLE

$60.99

$

In Stock, Qty 11

0

25

Exmark 116-1972

ASM,THROTTLE CABLE

$40.99

$

In Stock, Qty 20+

0

26

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

27

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Exmark 146-5701

Sleeve-Thermal, Wrap

$13.99

$

Usually ships in 3-6 days

0
