LRX921GKA606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX921V (SN: 417930746 & Above) (Rev A) (2025) Electrical Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX921V

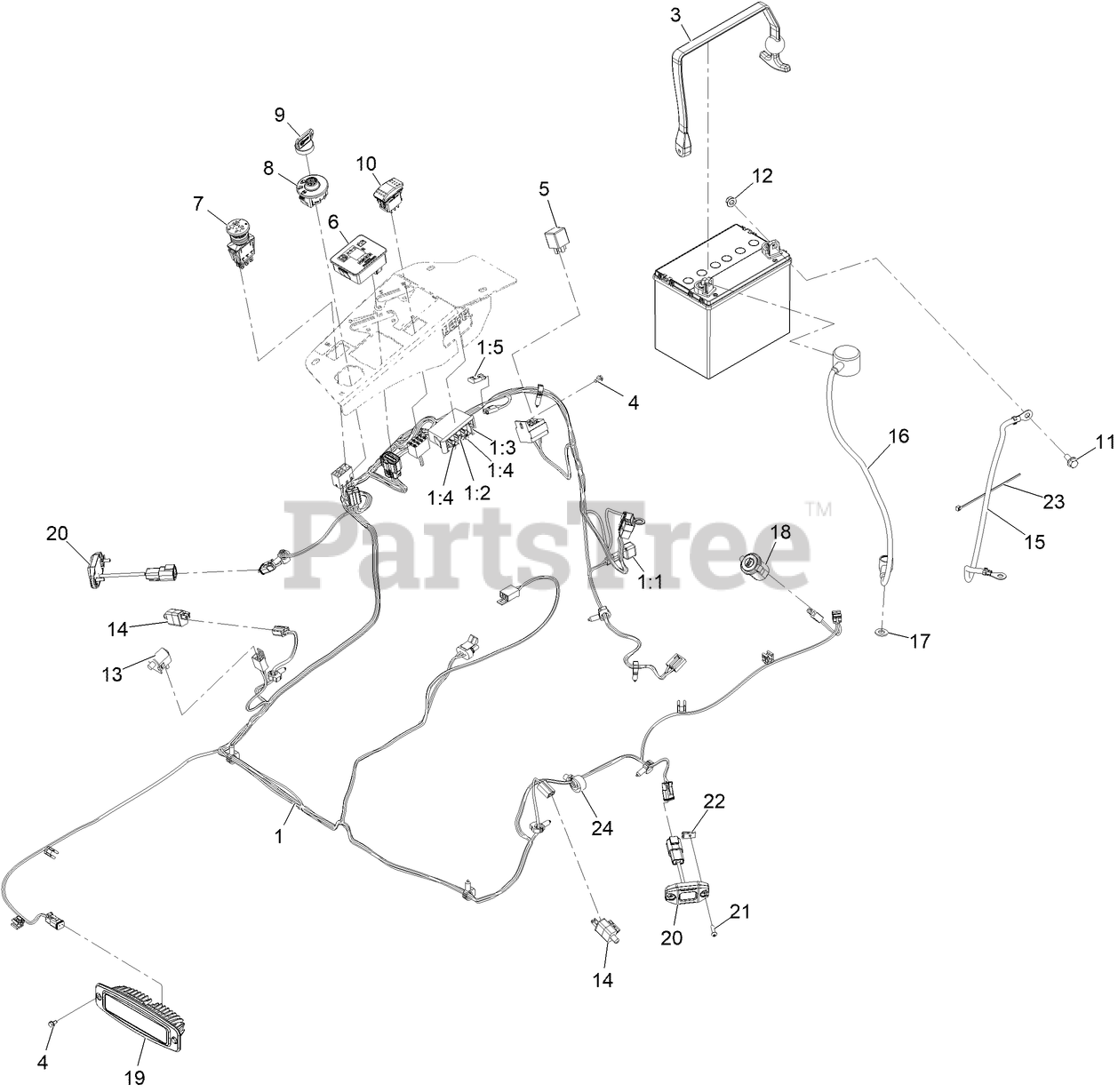

Electrical Assembly Parts Diagram

  • Title

1

Exmark 146-4030

HARNESS-MAIN LRX CARB

$331.99

$

Usually ships in 3-6 days

0

1:1

Exmark 103-3895

DIODE

$70.99

$

In Stock, only 1 left!

0

1:2

Exmark 218-578

FUSE-BLADE, 10 AMP

$3.49

$

In Stock, only 3 left!

0

1:3

Exmark 109355

FUSE-BLADE, 15 AMP

$4.49

$

In Stock, Qty 7

0

1:4

Exmark 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 15

0

1:5

Exmark 116-0053

CAP-PLUG

$44.99

$

Usually ships in 3-6 days

0

3

Exmark 146-4467

Strap-Bungee

$9.99

$

Usually ships in 3-6 days

0

4

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-643275

RELAY

$26.99

$

In Stock, Qty 13

0

6

Exmark 117-3882

FUEL/HOUR METER ASM

$190.99

$

In Stock, only 2 left!

0

7

Exmark 135-3653

SWITCH, PTO 10A

$75.99

$

In Stock, Qty 20+

0

8

Exmark 137-4100

SWITCH-IGNITION

$30.99

$

In Stock, Qty 20+

0

9

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

10

Exmark 95-8999

SWITCH

$49.99

$

Usually ships in 3-6 days

0

11

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

14

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

15

Exmark 114-1218

CABLE-BATTERY, NEGATIVE

$26.99

$

In Stock, only 2 left!

0

16

Exmark 115-3864

CABLE-BATTERY, POSITIVE

$34.99

$

In Stock, only 2 left!

0

17

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Exmark 140-7955

PORT-POWER, USB

$39.99

$

Usually ships in 3-6 days

0

19

Exmark 139-8089

MOUNT-FLUSH, LIGHT

$108.99

$

Usually ships in 3-6 days

0

20

Exmark 146-3396

LIGHT-ROCK

$71.99

$

Usually ships in 3-6 days

0

21

Exmark 104-2408

Screw-HSBH

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 3290-277

Nut-Speed

$0.99

$

Usually ships in 3-6 days

0

23

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0
