LT 2223 A2 (960410144-02) - Jonsered Lawn Tractor (2011-02) ENGINE Parts Diagram

Lawn Tractor

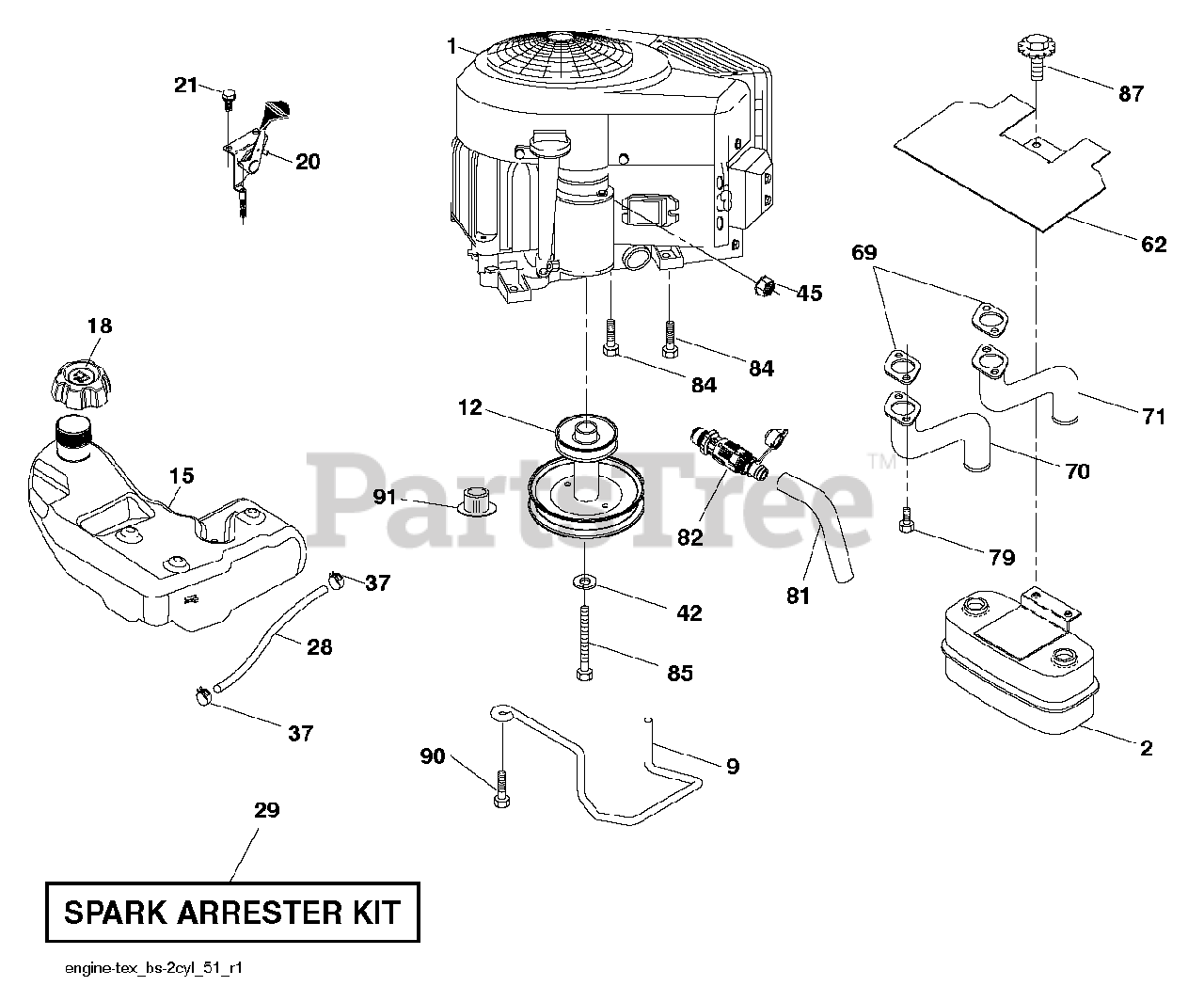

ENGINE Parts Diagram

  • Title

1

Jonsered 000000000

No Description Available

Note: Briggs Model No 445577-1582-G5 (442588) (order parts from engine manufacturer)

$

$

Not available

2

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0

9

Jonsered 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

12

Jonsered 532405471

PULLY ENGINE
(Superseded to 586478501)

$35.99

$

In Stock, only 2 left!

0

15

Jonsered 532438080

TANK.ASSY.3.GAL.EPA
(Superseded to 532438031)

$

$

Not available

18

Jonsered 532430214

CAP ASM.FL.RTCHT.3"GRY.E10

$

$

Not available

20

Jonsered 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.

$26.99

$

In Stock, Qty 20+

0

21

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, only 4 left!

0

28

Jonsered 532142158

No Description Available
(Superseded to 587044854)

$23.99

$

In Stock, only 4 left!

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$203.99

$

In Stock, only 1 left!

0

37

Jonsered 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, Qty 5

0

45

Jonsered 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Jonsered 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Jonsered 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Jonsered 532159955

TUBE MANIFOLD LH
(Superseded to 581881101)

$35.99

$

In Stock, only 2 left!

0

71

Jonsered 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$29.99

$

In Stock, only 2 left!

0

79

Jonsered 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.99

$

Usually ships in 3-10 days

0

81

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

82

Jonsered 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

84

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 17

0

85

Jonsered 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.99

$

In Stock, Qty 12

0

87

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, only 4 left!

0

90

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

91

Jonsered 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0
