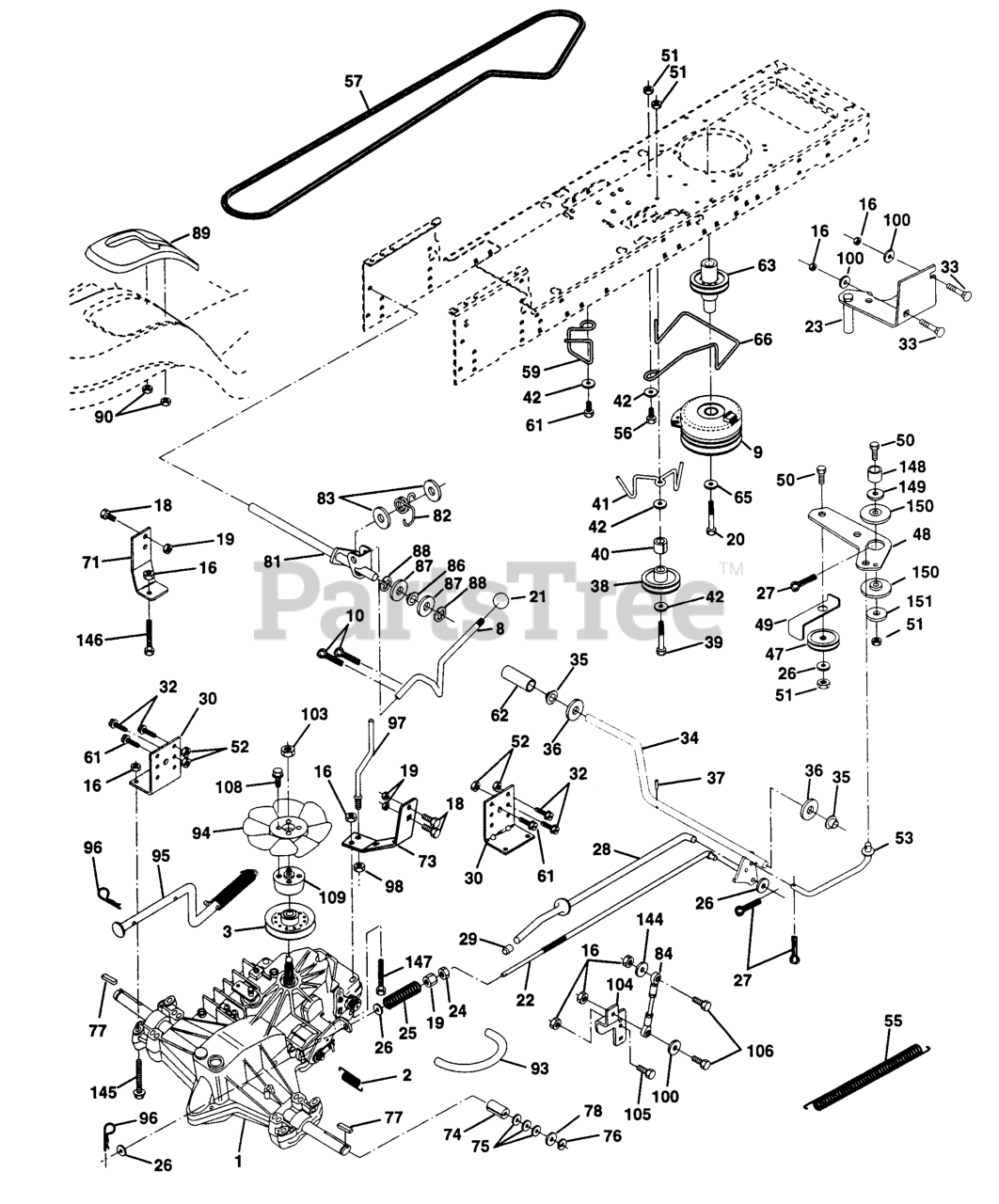

LTH 130 (954140005-H) - Husqvarna Lawn Tractor (1998-07) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle

Note: See "Hydro Gear Transaxle - Model No. 319-0500" illustration and parts list.

$

$

Not available

2

Husqvarna 532142431

SPRING BRAKE

$8.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532144698

PULLEY.4.20.HYDRO

$

$

Not available

8

Husqvarna 532154792

ROD SHIFT FENDER

$

$

Not available

9

Husqvarna 532145028

CLUTCH.ELECT.EVX.

$

$

Not available

10

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 9

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

20

Husqvarna 532150280

BOLT HEX
(Superseded to 501606501)

$3.99

$

In Stock, Qty 12

0

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$11.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532145627

ROD BRAKE HYDRO

$215.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532154978

BRACKET, ASM CLUTCH MTG

$

$

Not available

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$5.99

$

In Stock, Qty 18

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 532145204

ROD BRAKE PARK LT

$

$

Not available

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

In Stock, Qty 8

0

30

Husqvarna 532130807

BRACKET TRANSAXLE

$

$

Not available

32

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$2.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532155071

SHAFT, FOOT PEDAL

$

$

Not available

35

Husqvarna 532120183

BEARING.NYLON

$7.49

$

In Stock, only 1 left!

0

36

Husqvarna 819211616

WASHER LT
(Superseded to 596933401)

$3.99

$

In Stock, Qty 7

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532001572)

$4.99

$

In Stock, only 2 left!

0

38

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 2 left!

0

39

Husqvarna 874760644

BOLT

$

$

Not available

40

Husqvarna 532124965

SPACER T

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532154777

KEEPER, BELT IDLER
(Superseded to 532165838)

$

$

Not available

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$47.99

$

In Stock, Qty 20+

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$6.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$9.99

$

In Stock, Qty 6

0

51

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$14.99

$

In Stock, Qty 20+

0

56

Husqvarna 874760620

BOLT

$5.99

$

In Stock, only 4 left!

0

57

Husqvarna 532141416

V-BELT

$

$

Not available

59

Husqvarna 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$23.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

62

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532145868

PULLEY, CLUTCH ELECT EVX

$96.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 4 left!

0

66

Husqvarna 532154778

KEEPER BELT ENGINE
(Superseded to 531151001)

$14.99

$

In Stock, only 1 left!

0

71

Husqvarna 532141417

STRAP TORQUE LH HYDRO

$

$

Not available

73

Husqvarna 532141418

STRAP TORQUE RH HYDRO

$

$

Not available

74

Husqvarna 532121199

SPACER SPLIT

$

$

Not available

75

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

76

Husqvarna 812000001

E-RING LT

$3.99

$

In Stock, Qty 20+

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532156048

SHAFT ASM CROSS HYDRO

$

$

Not available

82

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$4.99

$

In Stock, only 2 left!

0

84

Husqvarna 532141423

ROD, TIE HYDRO

$

$

Not available

86

Husqvarna 532157480

BUSHING

$

$

Not available

87

Husqvarna 819212016

WASHER D

$

$

Not available

88

Husqvarna 812000008

KLIP RING

$9.99

$

In Stock, Qty 10

0

89

Husqvarna 532158388

SHIFT CONSOLE
(Superseded to 532164890)

$22.99

$

In Stock, only 1 left!

0

90

Husqvarna 532124346

NUT.PUSH.3/16

$9.49

$

Usually ships in 3-10 days

0

93

Husqvarna 532142564

LINE FUEL HYD 4"

$9.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532140462

FAN 7" HYDRO

$14.99

$

In Stock, only 2 left!

0

95

Husqvarna 532144643

CONTROL ARM, BYPASS HYDRO
(Superseded to 532167696)

$

$

Not available

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 19

0

97

Husqvarna 532144201

KEEPER BELT RH

$

$

Not available

98

Husqvarna 873510600

NUT

$

$

Not available

100

Husqvarna 819111216

WASHER M
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

103

Husqvarna 873940800

NUT.HEX.1/2-20

$4.99

$

In Stock, only 1 left!

0

104

Husqvarna 532141421

ARM, CONTROL HYDRO

$

$

Not available

105

Husqvarna 871070516

SCREW

$8.49

$

Usually ships in 3-10 days

0

106

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

In Stock, only 1 left!

0

108

Husqvarna 817541026

SCREW

$

$

Not available

109

Husqvarna 532145098

ADAPTOR FAN HYDRO

$

$

Not available

144

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Not available

145

Husqvarna 874490540

BOLT
(Superseded to 596136501)

$4.99

$

Usually ships in 3-10 days

0

146

Husqvarna 874490536

Bolt Hex Flghd 5/16-18 x 2-1/4

$

$

Not available

147

Husqvarna 874990524

Bolt Hex Flghd 5/16-18 x 1-1/2

$

$

Currently unavailable

148

Husqvarna 532159103

GUIDE

$

$

Not available

149

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$7.49

$

In Stock, Qty 11

0

150

Husqvarna 532150935

BUSHING NYLON COLLERED

$

$

Not available

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, only 1 left!

0
