LXS25KD725 - Exmark 72" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota (SN: 670000 - 719999) (2007) Engine Deck Group Parts Diagram

72" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota

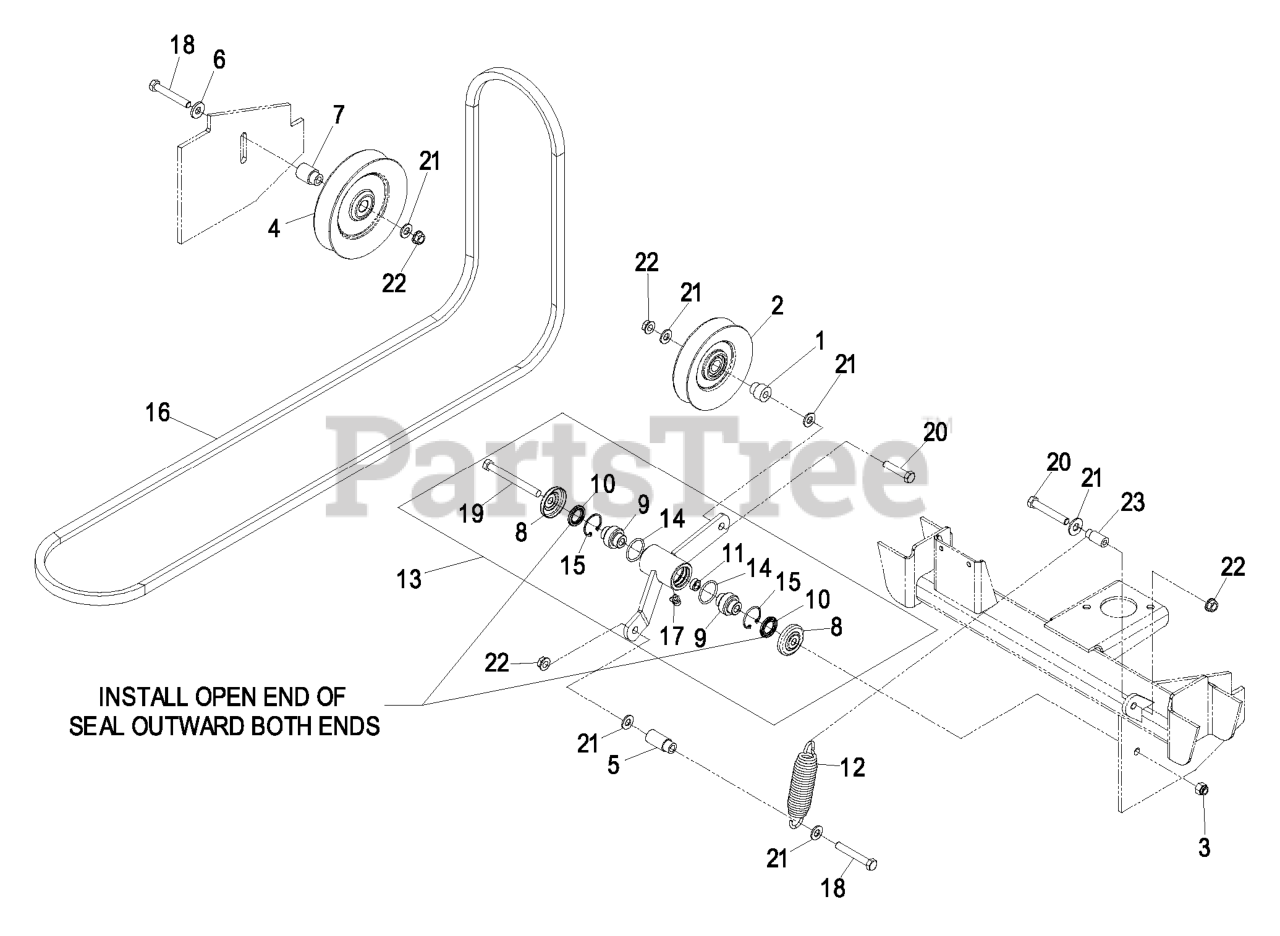

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

2

Exmark 1-603805

PULLEY-IDLER

$67.99

$

In Stock, only 2 left!

0

3

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Exmark 1-633166

PULLEY-IDLER

$66.99

$

In Stock, Qty 9

0

5

Exmark 1-653366

HUB

$27.99

$

In Stock, only 2 left!

0

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

7

Exmark 103-2627

BUSHING-IDLER

$3.99

$

In Stock, Qty 20+

0

8

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

9

Exmark 103-3504

BEARING-SPHERICAL

$28.99

$

In Stock, Qty 20+

0

10

Exmark 103-3506

SEAL-LIP, SINGLE

$6.49

$

In Stock, Qty 20+

0

11

Exmark 103-5677

SPACER

$2.99

$

In Stock, Qty 9

0

12

Exmark 103-8599

116-6316
(Superseded to 116-6316)

$27.99

$

In Stock, Qty 8

0

13

Exmark 103-9250

116-5042
(Superseded to 116-5042)

$352.99

$

Usually ships in 3-6 days

0

14

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

15

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

16

Exmark 109-4199

BELT,B 123.2
(Superseded to 109-4199-SL)

$140.99

$

In Stock, Qty 10

0

17

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

18

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Exmark 323-42

SCREW-HH

$8.99

$

In Stock, only 3 left!

0

20

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Exmark 103-1503

SPACER-TIGHTENER, BELT

$13.99

$

Usually ships in 3-6 days

0
