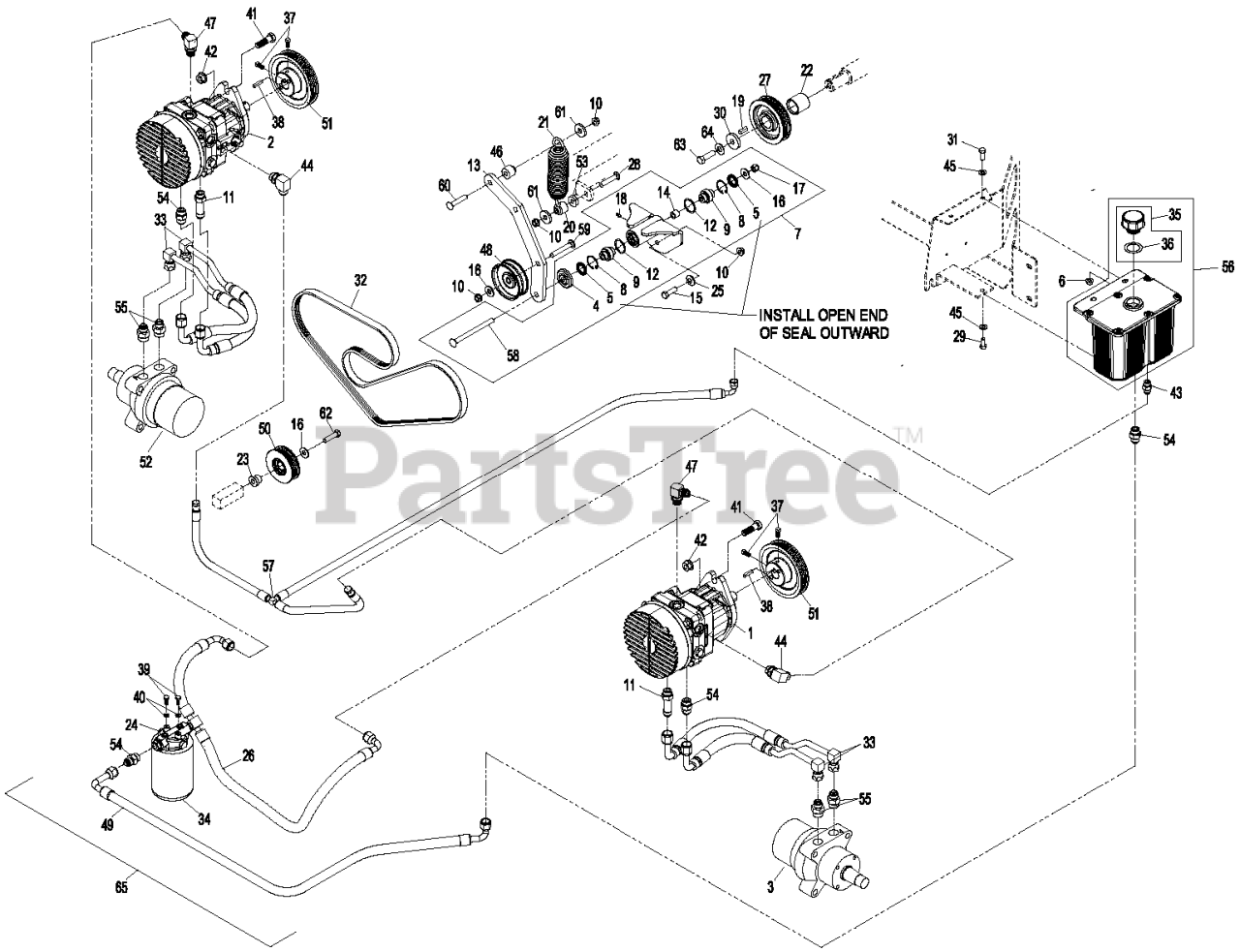

LXS35BV665 - Exmark 66" Lazer Z XS Zero-Turn Mower, 35hp Briggs & Stratton (SN: 790000 - 849999) (2009) Hydraulic Group Parts Diagram

66" Lazer Z XS Zero-Turn Mower, 35hp Briggs & Stratton

Hydraulic Group Parts Diagram

  • Title

1

Exmark 109-7543

PUMP, LH

$1824.99

$

Usually ships in 3-6 days

0

2

Exmark 109-7544

PUMP, RH

$1824.99

$

Usually ships in 3-6 days

0

Exmark 106-2053

SHOCK VALVE KIT

$

$

Not available

Exmark 109-8110

104-2143
(Superseded to 104-2143)

$46.99

$

Usually ships in 3-6 days

0

Exmark 109-8113

100-6110
(Superseded to 100-6110)

$97.99

$

In Stock, only 1 left!

0

Exmark 109-8109

KIT, INPUT SHAFT

$

$

Not available

Exmark 103-2670

THRUST BEARING KIT

$

$

Not available

Exmark 94-1913

127-3867
(Superseded to 127-3867)

$247.99

$

Usually ships in 3-6 days

0

Exmark 100-6112

PLATE-VALVE

$294.99

$

In Stock, only 1 left!

0

Exmark 116-1739

FAN-7",21CC PW PUMP

$50.99

$

Usually ships in 3-6 days

0

Exmark 116-0917

GUARD-FAN, PUMP

$78.99

$

Usually ships in 3-6 days

0

3

Exmark 112-8357

HYD MOTOR ASM (CCW)

Note: Seal Kit: 109-5966

$1589.99

$

Usually ships in 3-6 days

0

4

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

5

Exmark 103-3506

SEAL-LIP, SINGLE

$6.49

$

In Stock, Qty 20+

0

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 103-7613

KIT,XS PUMP IDLER

$

$

Not available

8

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

9

Exmark 103-3504

BEARING-SPHERICAL

$28.99

$

In Stock, Qty 20+

0

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Exmark 103-1940

ADAPTER-STR, LONG

$27.99

$

In Stock, only 3 left!

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

12

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

13

Exmark 103-4573-03

ARM, XS HYDRO TIGHTENER

$41.99

$

Usually ships in 3-6 days

0

14

Exmark 1-603401

SPACER

$7.49

$

In Stock, Qty 20+

0

15

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

16

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

19

Exmark 10-7070

KEY-SQUARE

$1.49

$

In Stock, only 4 left!

0

20

Exmark 103-1575

SPACER-SPRING, FAN PUMP

$

$

Not available

21

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 18

0

22

Exmark 103-6226

SPACER,ENGINE SHEAVE

$36.99

$

Usually ships in 3-6 days

0

23

Exmark 103-4566

SPACER,LOWER FRAME IDLER

$17.99

$

In Stock, only 1 left!

0

24

Exmark 103-2259

HEAD-FILTER

$

$

Not available

25

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

26

Exmark 109-6903

ASM, HOSE-PUMP INLET

$205.99

$

Usually ships in 3-6 days

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

27

Exmark 103-4718

SHEAVE,5K 4"PD POLY-V

$167.99

$

Usually ships in 3-6 days

0

28

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

29

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 20+

0

31

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

32

Exmark 109-7582

BELT, 5K 68.8
(Superseded to 109-7582-SL)

$70.99

$

In Stock, only 1 left!

0

33

Exmark 103-4680

HYD HOSE ASM

$172.99

$

Usually ships in 3-6 days

0

Exmark 103-4679

HYD HOSE ASM

$

$

Not available

34

Exmark 103-2146

FILTER,XP HYD 25 MICRON

$76.99

$

In Stock, Qty 20+

0

35

Exmark 103-7615

KIT,HYD RES CAP W/GASKET

$37.99

$

In Stock, Qty 20+

0

36

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

37

Exmark 30-1710

SCREW-SET

Note: Use Prolock, Nut Type (P/N 1-840022, .5ml tube) on setscrews.

$12.99

$

In Stock, only 2 left!

0

38

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

39

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

41

Exmark 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

43

Exmark 103-2156

FITTING-STRAIGHT

$46.99

$

In Stock, only 3 left!

0

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

44

Exmark 103-1014

FITTING-ELBOW, 90 DEG

$44.99

$

Usually ships in 3-6 days

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

45

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

46

Exmark 103-7693

SPACER

$16.99

$

In Stock, Qty 5

0

47

Exmark 103-2153

FITTING-90 DEG

$54.99

$

Usually ships in 3-6 days

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

48

Exmark 116-0888

IDLER,FLANGED

$71.99

$

Usually ships in 3-6 days

0

49

Exmark 109-6904

ASM, HOSE-FILTER INLET

$193.99

$

Usually ships in 3-6 days

0

50

Exmark 103-4728

ASM,LOWER FRAME IDLER

$174.99

$

In Stock, only 1 left!

0

51

Exmark 109-7561

SHEAVE,5K 5.0" PD POLY-V

$140.99

$

Usually ships in 3-6 days

0

52

Exmark 112-8358

HYD MOTOR ASM (CW)

Note: Seal Kit: 109-5966

$1503.99

$

Usually ships in 3-6 days

0

53

Exmark 103-3186

SPACER-BRACKET, GUIDE

$26.99

$

In Stock, only 1 left!

0

54

Exmark 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, only 4 left!

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

55

Exmark 1-603991

FITTING-STRAIGHT

$25.99

$

In Stock, only 4 left!

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 13

0

56

Exmark 109-0582

HYDRAULIC TANK ASM

$468.99

$

Usually ships in 3-6 days

0

57

Exmark 109-0087

ASM,CASE DRAIN HOSE

$174.99

$

Usually ships in 3-6 days

0

58

Exmark 9000784

BOLT CARR 3/8-16X5

$

$

Not available

59

Exmark 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

60

Exmark 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

61

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

62

Exmark 323-8

SCREW-HH

Note: Use Prolock, Nut Type (P/N 1-840022, .5ml tube) on setscrews.

$1.49

$

In Stock, Qty 20+

0

63

Exmark 3212-6

SCREW-HH

$2.99

$

In Stock, Qty 12

0

64

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

65

Exmark 109-6905

Asm, Filter W/Hoses

Note: Does not include items 39 & 40.

$229.99

$

In Stock, only 1 left!

0
