LZ23KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 23hp Kohler (SN: 220000 - 259999) (2000) Common Engine Deck Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 23hp Kohler

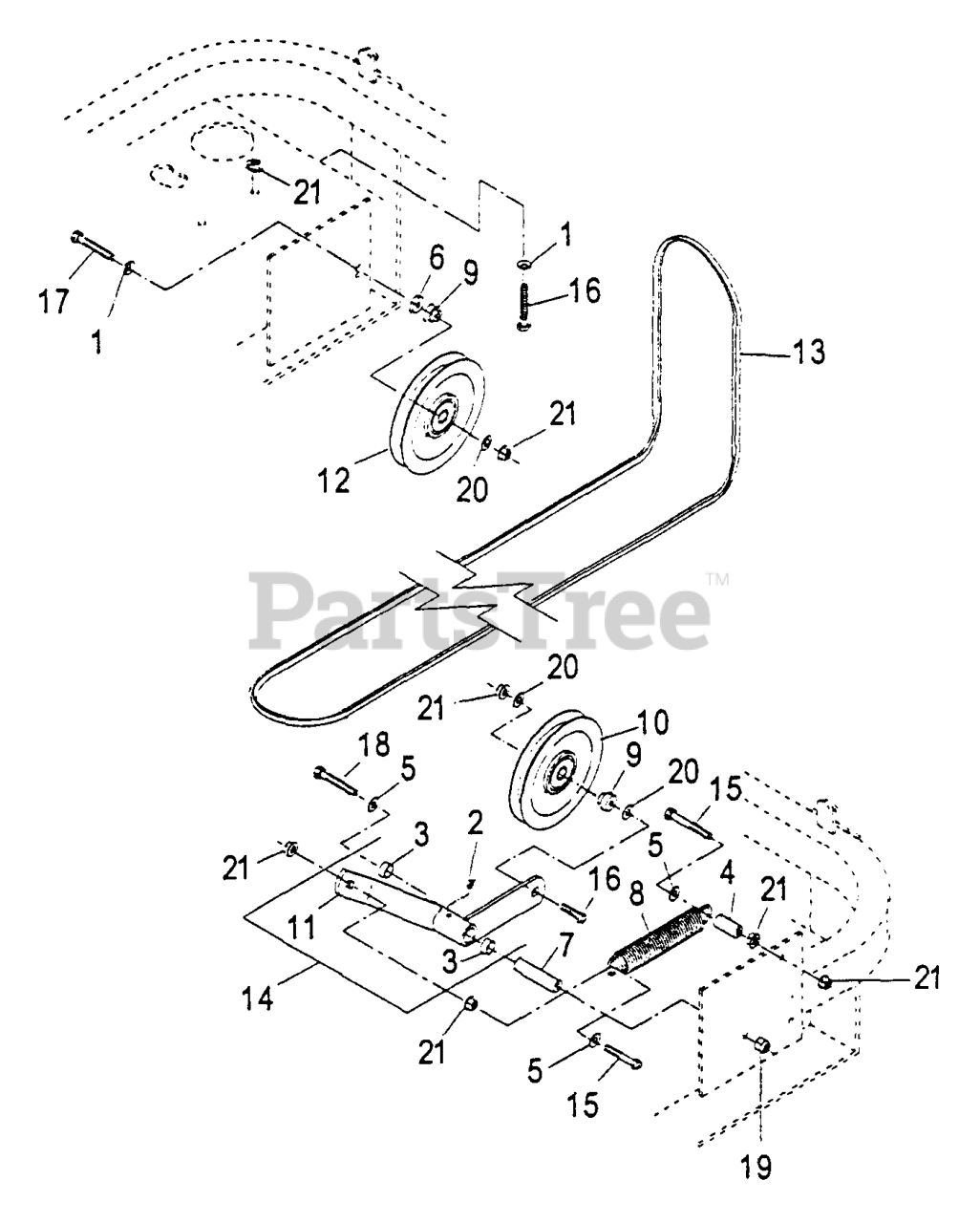

Common Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

2

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.99

$

In Stock, Qty 20+

0

3

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

4

Exmark 1-603401

SPACER

$7.49

$

In Stock, Qty 20+

0

5

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

6

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 3 left!

0

7

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

8

Exmark 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

9

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

10

Exmark 1-603805

PULLEY-IDLER

$67.99

$

In Stock, Qty 6

0

11

Exmark 1-632468

1-632469
(Superseded to 1-632469)

$132.99

$

In Stock, only 2 left!

0

12

Exmark 1-633166

PULLEY-IDLER

$66.99

$

In Stock, Qty 10

0

13

Exmark 1-633173

BELT,MULE DRIVE
(Superseded to 1-633173-SL)

$117.99

$

In Stock, Qty 20+

0

14

Exmark 1-632469

ARM ASM

$132.99

$

In Stock, only 2 left!

0

15

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

16

Exmark 1-800295

323-9
(Superseded to 323-9)

Note: (Koh)

$1.49

$

In Stock, Qty 20+

0

Exmark 1-800295

323-9
(Superseded to 323-9)

Note: (Kaw)

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-800299

323-13
(Superseded to 323-13)

$4.49

$

In Stock, Qty 20+

0

18

Exmark 1-800805

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

19

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

20

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

21

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0
