LZ25KC60 - Exmark 60" Lazer Z Zero-Turn Mower, 25hp Kohler (SN: 102000 - 114999) (1995) Hydraulic Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 25hp Kohler

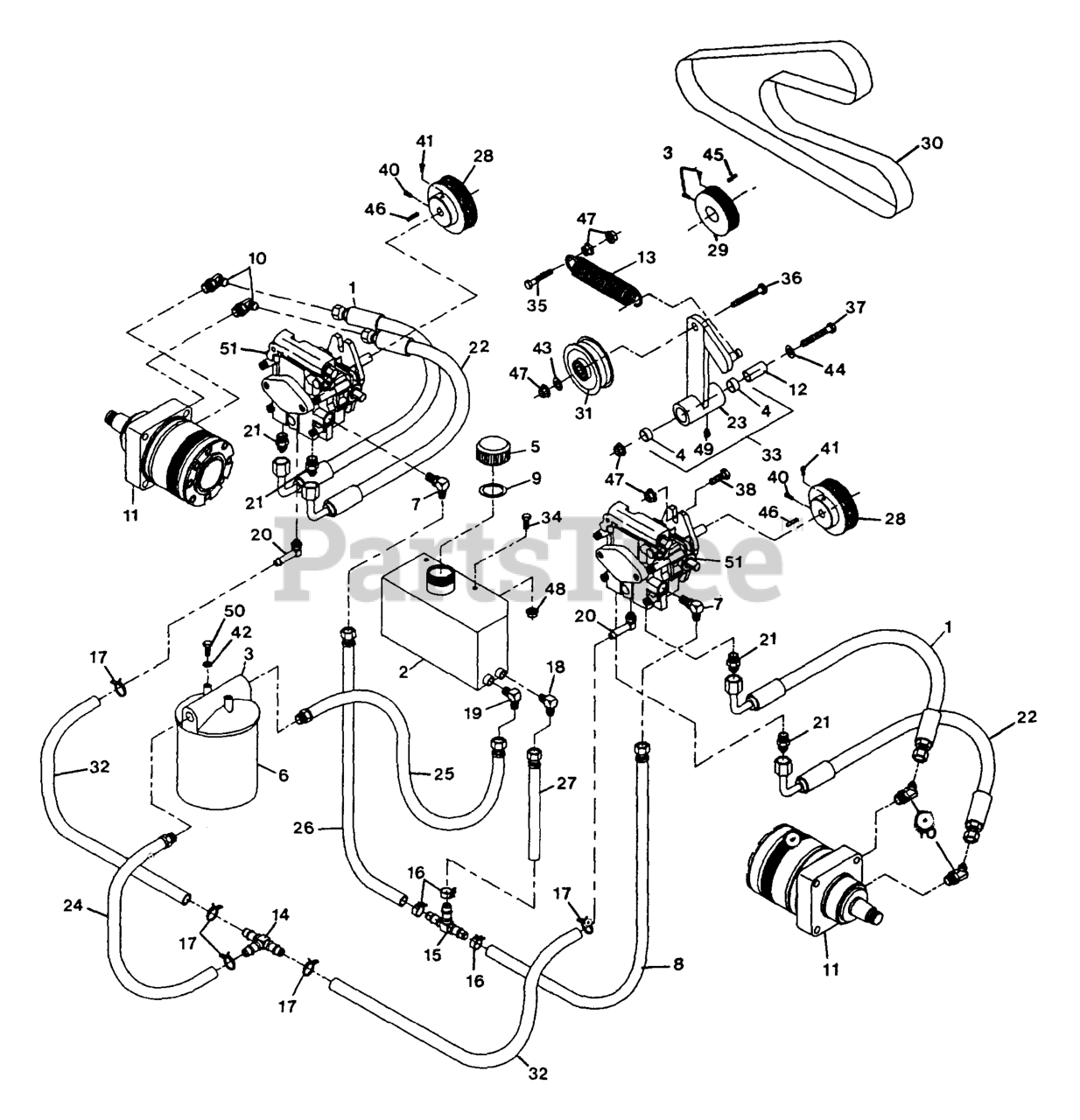

Hydraulic Group Parts Diagram

  • Title

1

Exmark 1-403102

HOSE-PRESSURE, HIGH

$136.99

$

In Stock, only 2 left!

0

2

Exmark 1-512166-03

DISCONTINUED

Note: Use Teflon pipe sealant on pipe threads in reservoir & filter head.

$

$

Not available

3

Exmark 1-513006

FILTER-HEAD

Note: Use Teflon pipe sealant on pipe threads in reservoir & filter head.

$

$

Not available

4

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

5

Exmark 1-513167

CAP

$32.99

$

In Stock, Qty 10

0

6

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$53.99

$

In Stock, Qty 15

0

7

Exmark 1-513840

FITTING-90 DEG

$29.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

8

Exmark 1-522217

LOW PRESSURE HOSE ASM

$45.99

$

Usually ships in 3-6 days

0

9

Exmark 1-523103

GASKET-CAP, TANK

$7.99

$

In Stock, Qty 7

0

10

Exmark 1-523222

FITTING-HYD, 45 DEG

$

$

Not available

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 13

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

11

Exmark 1-523328

MOTOR-WHEEL

$1417.99

$

Usually ships in 3-6 days

0

12

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

13

Exmark 1-603413

SPRING-EXTENSION

$28.99

$

In Stock, only 3 left!

0

14

Exmark 1-603721

FITTING-TEE, HOSE

$

$

Not available

15

Exmark 1-603722

FITTING-TEE, HOSE

$28.99

$

Usually ships in 3-6 days

0

16

Exmark 1-603826

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 1-603827

CLAMP-HOSE

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 1-603987

FITTING-ELBOW

$25.99

$

Usually ships in 3-6 days

0

19

Exmark 1-603988

FITTING-ELBOW

$

$

Not available

20

Exmark 1-603989

FITTING

$42.99

$

Usually ships in 3-6 days

0

Exmark 1-603923

O-RING

$3.49

$

Usually ships in 3-6 days

0

21

Exmark 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, only 4 left!

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-613034

119-7827
(Superseded to 119-7827)

$87.99

$

In Stock, only 3 left!

0

23

Exmark 1-632201

1-634277
(Superseded to 1-634277)

$187.99

$

In Stock, only 1 left!

0

24

Exmark 1-632281

HOSE ASM

$92.99

$

Usually ships in 3-6 days

0

25

Exmark 1-632282

HOSE ASM

$78.99

$

Usually ships in 3-6 days

0

26

Exmark 1-632285

HOSE ASM

$50.99

$

In Stock, only 3 left!

0

27

Exmark 1-632286

HOSE ASM

$32.99

$

In Stock, only 3 left!

0

28

Exmark 1-633040

SHEAVE,8J32 15MM BORE

$132.99

$

In Stock, only 1 left!

0

29

Exmark 1-633044

DISCONTINUED

$

$

Not available

30

Exmark 1-633162

BELT - POLYV
(Superseded to 1-633162-SL)

$44.99

$

In Stock, only 2 left!

0

31

Exmark 1-633167

SHEAVE-IDLER

$46.99

$

In Stock, Qty 20+

0

32

Exmark 1-633335

HOSE-PRESSURE, LOW

$98.99

$

In Stock, only 1 left!

0

33

Exmark 1-634277

BEARING ARM ASM

$187.99

$

In Stock, only 1 left!

0

34

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

35

Exmark 1-800294

323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

36

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-800805

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

38

Exmark 1-803016

3234-11
(Superseded to 3234-11)

$4.49

$

In Stock, Qty 20+

0

39

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 840022, .5ml tube) on setscrews.

$2.99

$

In Stock, Qty 20+

0

40

Exmark 1-803046

30-1710
(Superseded to 30-1710)

Note: Use Pro-Lock, Nut Type (P/N 840022, .5ml tube) on setscrews.

$12.99

$

In Stock, only 2 left!

0

41

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 840022, .5ml tube) on setscrews.

$2.99

$

In Stock, only 2 left!

0

42

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

43

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

45

Exmark 1-807263

13-2840
(Superseded to 13-2840)

$1.99

$

In Stock, only 2 left!

0

46

Exmark 1-807272

KEY

$6.49

$

In Stock, Qty 20+

0

47

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

49

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.99

$

In Stock, Qty 20+

0

50

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

51

Exmark 1-603841

103-2766
(Superseded to 103-2766)

$1753.99

$

Usually ships in 3-6 days

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

In Stock, only 2 left!

0
