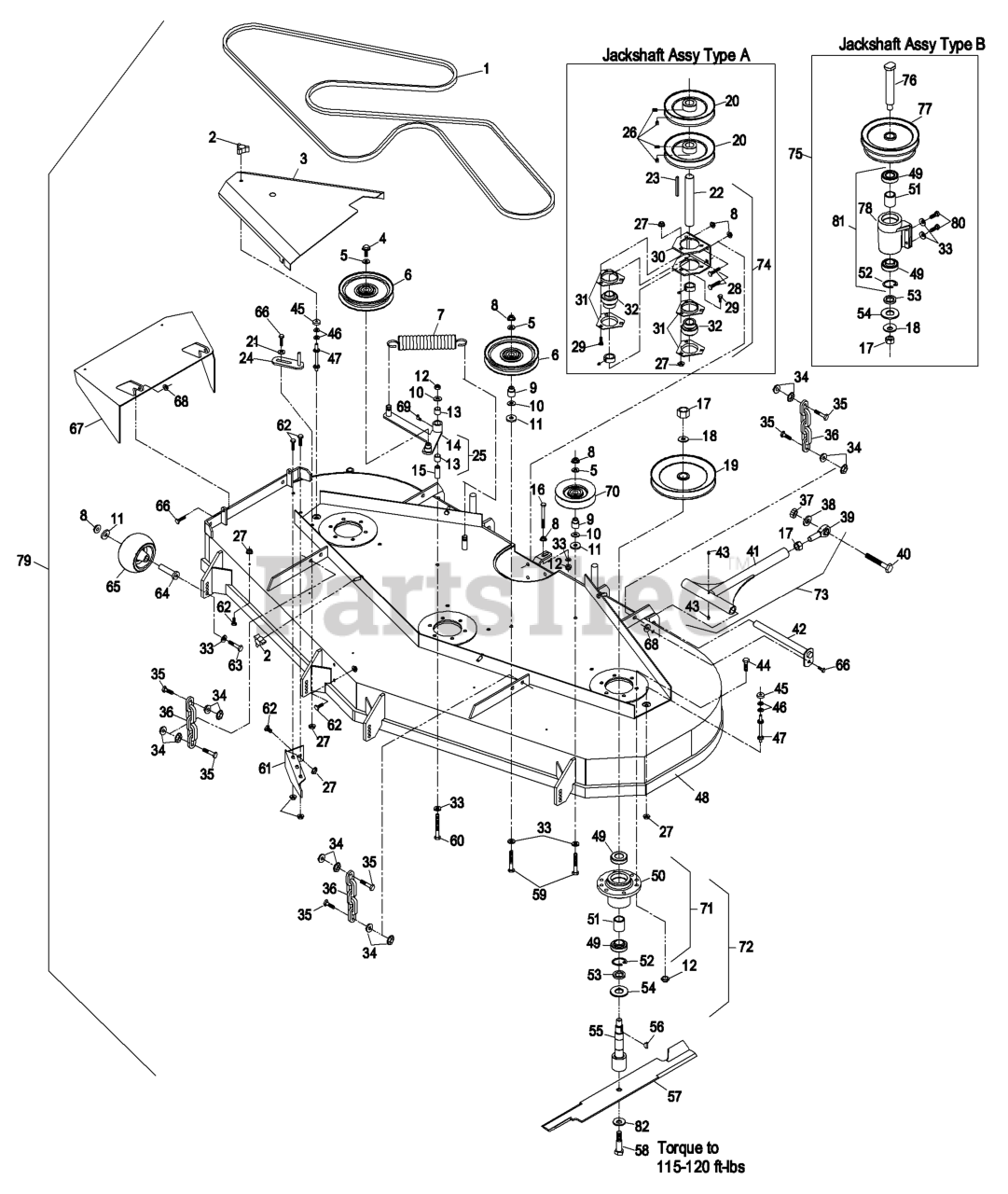

LZ26KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 26hp Kohler (SN: 260000 - 319999) (2001) 72" Deck Group Parts Diagram

Exmark 1-643052

Exmark 1-323385

Exmark 1-643076-01

Exmark 1-643075-01

Exmark 3234-11

Exmark 3256-24

Exmark 1-633109

Exmark 1-633151

Exmark 3290-357

Exmark 1-633456

Exmark 3256-4

Exmark 1-373034

Exmark 3296-39

Exmark 1-513034

Exmark 1-632119-03

Exmark 1-603044

Exmark 323-20

Exmark 3219-6

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 3219-6

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 1-513208

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 1-513208

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 1-643269

Note: Use antiseize on bore of sheaves and bearings.

Exmark 1-643292

Exmark 1-303334

Exmark 1-633012

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 1-807264

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 1-322110

Exmark 1-634244

Exmark 1-803022

Note: Use Pro-lock Nut Type (P/N 1-840022 .5 ml. tube) on setscrews. Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 32128-20

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 3231-22

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A and B.

Exmark 3230-1

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 1-633014-01

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 1-513013

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 1-513012

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 98-5975

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 98-5975

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 32128-37

Exmark 1-800811

Exmark 1-633447

Exmark 3217-11

Exmark 3253-8

Exmark 1-633029

Exmark 327-11

Exmark 103-1073-01

Exmark 1-632199-01

Exmark 302-19

Exmark 323-8

Exmark 1-323417

Exmark 3256-3

Exmark 1-303537

Exmark 103-0588-01

Exmark 1-644149

Exmark 1-513016

Note: Use antiseize on bore of sheaves and bearings.

Exmark 1-513016

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 1-323532

Exmark 1-323528

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 1-323528

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 32120-8

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 32120-8

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 1-323533

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 1-323533

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 1-633573

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A.

Exmark 1-633573

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 103-0584

Exmark 3257-32

Exmark 1-643006

Exmark 1-643097

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK724.

Exmark 1-643428

Exmark 1-643429

Exmark 103-1581

Exmark 103-0862

Exmark 323-11

Exmark 323-13

Exmark 1-602913-01

Exmark 322-2

Exmark 98-5961

Exmark 1-603602

Exmark 1-603299

Exmark 322-5

Exmark 1-642071-01

Exmark 329-29

Exmark 302-40

Exmark 1-603805

Exmark 1-634619

Exmark 1-644092

Note: Cutter housing complete includes sheave, washer, and nut.

Exmark 103-1082

Exmark 1-634546

Exmark 103-0701

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 1-643393

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 103-0137

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 103-0280

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 103-0683

Exmark 323-6

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 103-1192

Note: Reference the picture on the page to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B.

Exmark 103-0865

Exmark 1-840022

Note: .5 ml tube

Exmark 1-850337
