LZ27DD604 - Exmark 60" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton (SN: 510000 - 539999) (2005) Main Frame Group Parts Diagram

60" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton

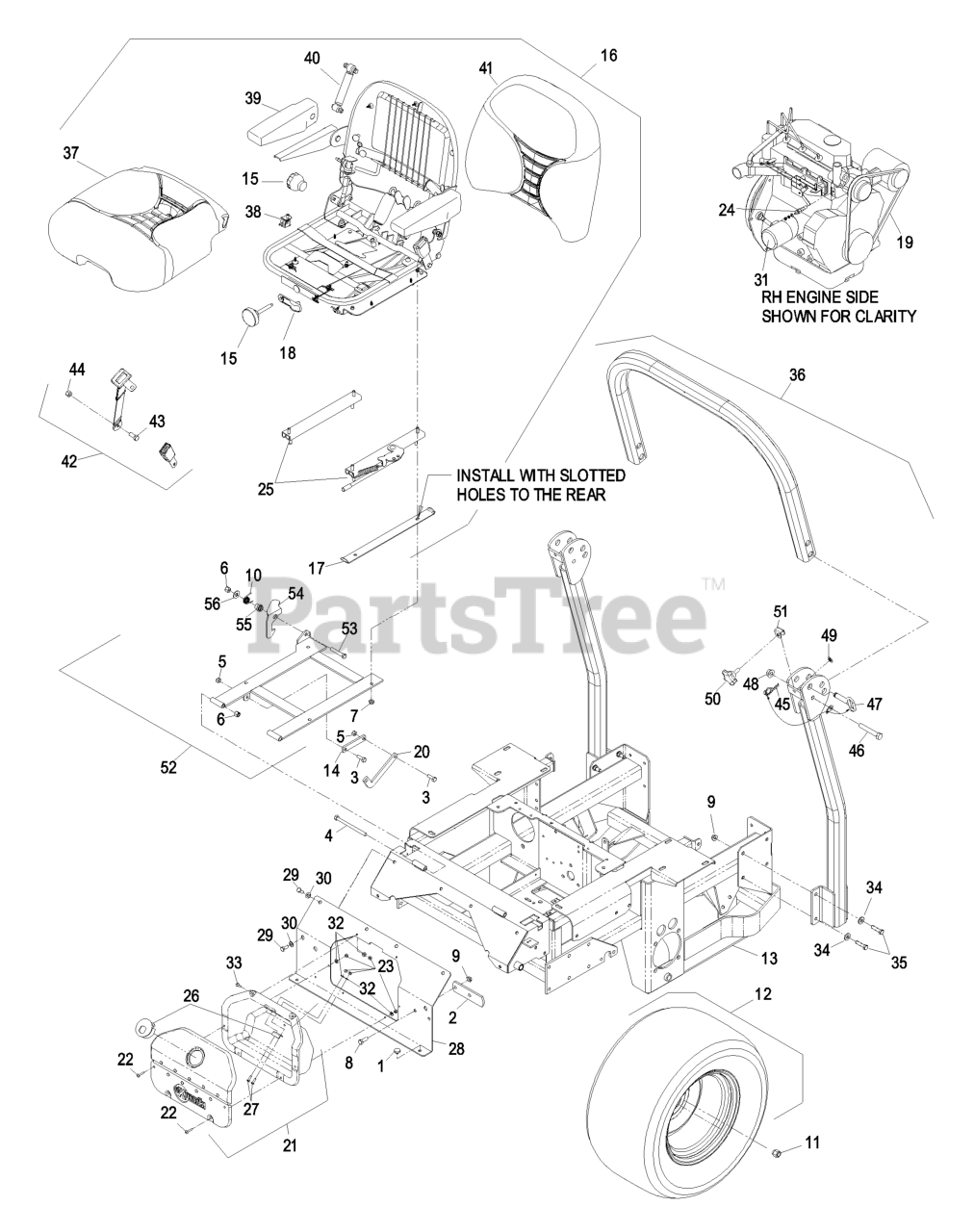

Main Frame Group Parts Diagram

  • Title

1

Exmark 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

2

Exmark 1-633964-03

STOP-BRAKE, PARK

$13.99

$

Usually ships in 3-6 days

0

3

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Exmark 323-39

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

5

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 103-5519

SPRING-TORSION, LATCH

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 103-4962

109-3157
(Superseded to 109-3157)

$645.99

$

Usually ships in 3-6 days

0

Exmark 103-4963

TIRE

$483.99

$

Usually ships in 3-6 days

0

Exmark 1-633992

109-3156
(Superseded to 109-3156)

$267.99

$

In Stock, only 3 left!

0

13

Exmark 103-5890

KIT,XP ENG DECK W/DECALS

$

$

Not available

14

Exmark 103-5161

LINK-STOP, SEAT

$

$

Not available

15

Exmark 107-1881

KNOB KIT

$240.99

$

Usually ships in 3-6 days

0

16

Exmark LSSEAT

126-2802
(Superseded to 126-2802)

Note: Includes seat assembly plus tracks item #25, seat stops item #17, and seat wiring harness (item #44 "Diesel Electrical Group 27HP"). Does not include seat belt assembly item #42.

$1618.99

$

Usually ships in 3-6 days

0

17

Exmark 1-633872-03

STOP-SEAT

$53.99

$

Usually ships in 3-6 days

0

18

Exmark 107-1885

WEIGHT INDICATOR KIT

$62.99

$

Usually ships in 3-6 days

0

19

Briggs & Stratton P/N 821075 Engine V-Belt

$

$

Not available

20

Exmark 103-5181

LINK-SEAT STOP, LOWER

$

$

Not available

21

Exmark 103-3666

ASM,CUBBY

$202.99

$

Usually ships in 3-6 days

0

22

Exmark 32122-28

SCREW

$5.99

$

Usually ships in 3-6 days

0

23

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Exmark 103-0949

SENDER-TEMPERATURE

Note: Use Teflon pipe sealant on pipe threads on temperature sending unit.

$86.99

$

Usually ships in 3-6 days

0

25

Exmark 107-1880

SEAT TRACK KIT

$421.99

$

Usually ships in 3-6 days

0

26

Exmark 103-3790

LATCH,CUBBY

$47.99

$

In Stock, only 1 left!

0

27

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

28

Exmark 103-5254

DISCONTINUED

$

$

Not available

29

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Briggs & Stratton P/N 820314 Oil Filter

Note: Do Not Use Briggs & Stratton 491056; Refer to Engine Owner's Manual.

$

$

Not available

32

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

34

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

35

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Exmark 103-5597

DISCONTINUED

Note: Rollover protection frame is serviced as a complete assembly only. Includes ROPS frame, mounting hardware, fold pivot and locking hardware, seat frame assembly item #52, and seat belt assembly item #42.

$

$

Not available

37

Exmark 107-1883

BOTTOM CUSHION KIT

$521.99

$

Usually ships in 3-6 days

0

38

Exmark 107-1886

82-2190
(Superseded to 82-2190)

$15.99

$

In Stock, Qty 20+

0

39

Exmark 107-1887

PAD-ARMREST

$131.99

$

In Stock, only 1 left!

0

40

Exmark 107-1884

SHOCK ABSORBER KIT

$342.99

$

Usually ships in 3-6 days

0

41

Exmark 107-1882

BACK CUSHION KIT

$526.99

$

Usually ships in 3-6 days

0

42

Exmark 103-4469

SEATBELT KIT

$182.99

$

Usually ships in 3-6 days

0

43

Exmark 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

44

Exmark 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

45

Exmark 107-3155

HAIRPIN

$7.49

$

Usually ships in 3-6 days

0

46

Exmark 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

47

Exmark 103-4553

PIN-FOLD, ROPS
(Superseded to 161-4477)

Note: Includes ROPS fold pin plus hairpin, item #45.

$37.99

$

Usually ships in 3-6 days

0

48

Exmark 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

49

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 5

0

50

Exmark 106-0887

KNOB

$9.49

$

In Stock, only 4 left!

0

51

Exmark 107-3124

CLIP

$5.99

$

In Stock, only 2 left!

0

52

Exmark 103-5537

109-1813
(Superseded to 109-1813)

$410.99

$

Usually ships in 3-6 days

0

53

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

54

Exmark 103-5520

CATCH-LATCH, SINGLE

$192.99

$

Usually ships in 3-6 days

0

55

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.99

$

In Stock, only 1 left!

0

56

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
